2. High voltage wiring harness location

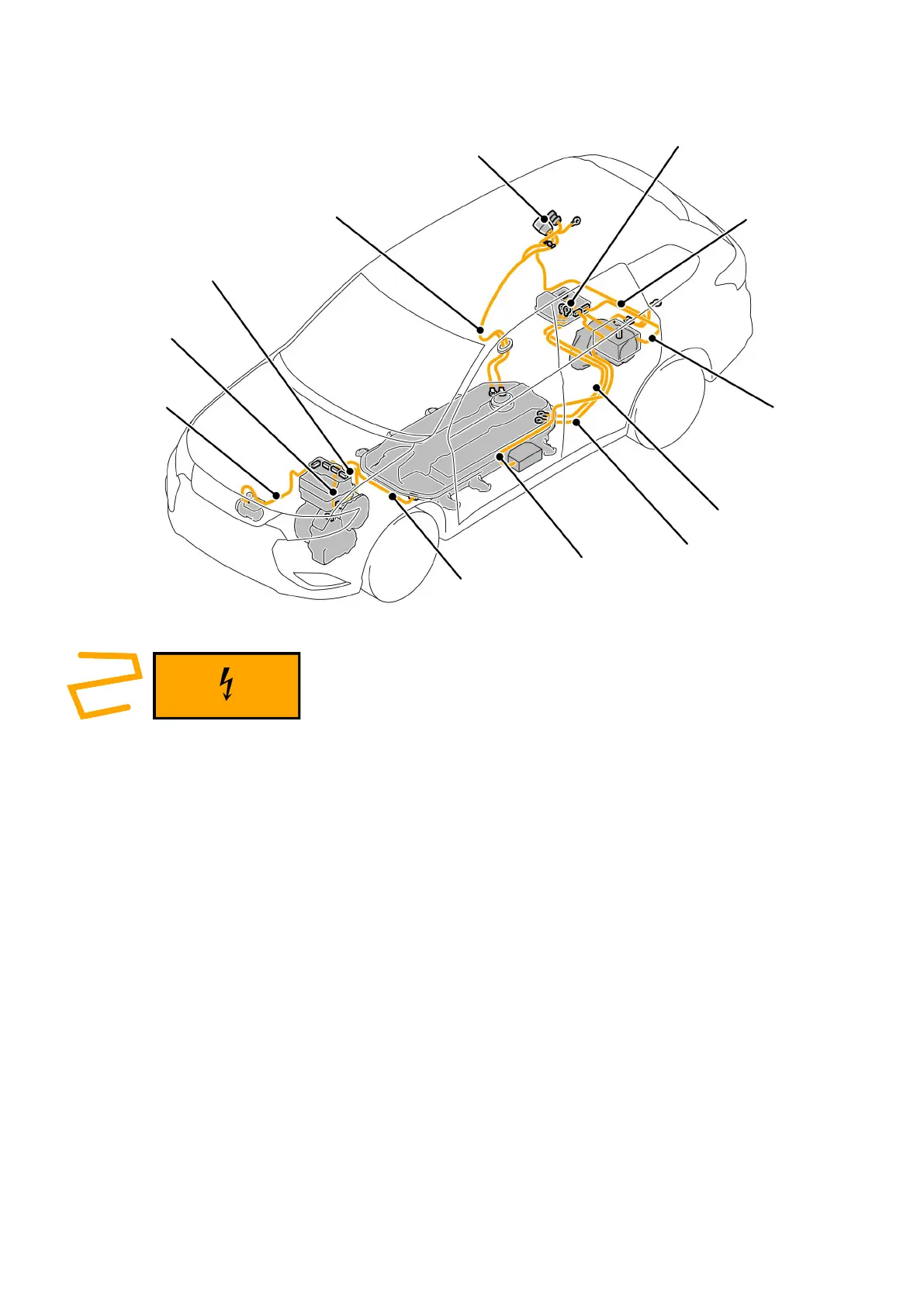

High voltage wiring cables are located as shown in the figure below.
*: Refer to "10" for the explanation of pictogram
rear cable (N line)
EV charging cable
Air conditioner
compressor cable
Generator cable
Front motor cable
Drive battery
front cable
Electric heater
cable
Drive battery
rear cable (P line)
Drive battery
On board charger/
DC-DC converter
cable
EV charging cable
Rear motor cable
Charge port
