Mitsubishi Pajero Workshop Manual Supplement

WIRING HARNESS CONFIGURATION DIAGRAMS
Connector
symbol
E
E-120
Connector colour code
B: Black
BR: Brown
G: Green
GR: Gray
L: Blue
None: Milk white
O: Orange
R: Red
V: Violet
Y: Yellow
E-121
E-123
E-122
15
17
1-2

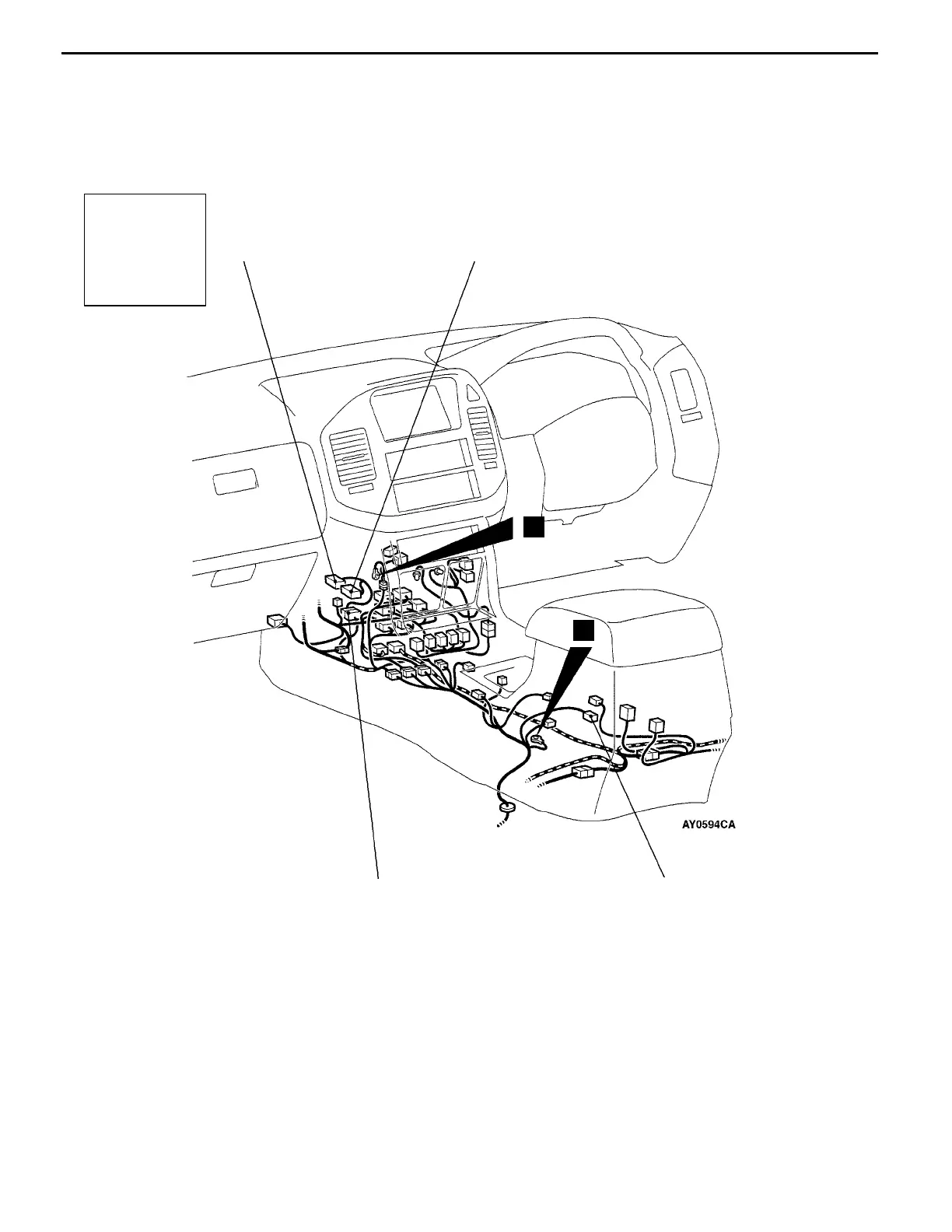

FLOOR CONSOLE
R.H.drive vehicles
E-120 (16) SC-ECU
E-121 (26-Y) SC-ECU
E-122 (20) Control wiring harness and SC wiring
harness combination
E-123 (3-B) SC G sensor
