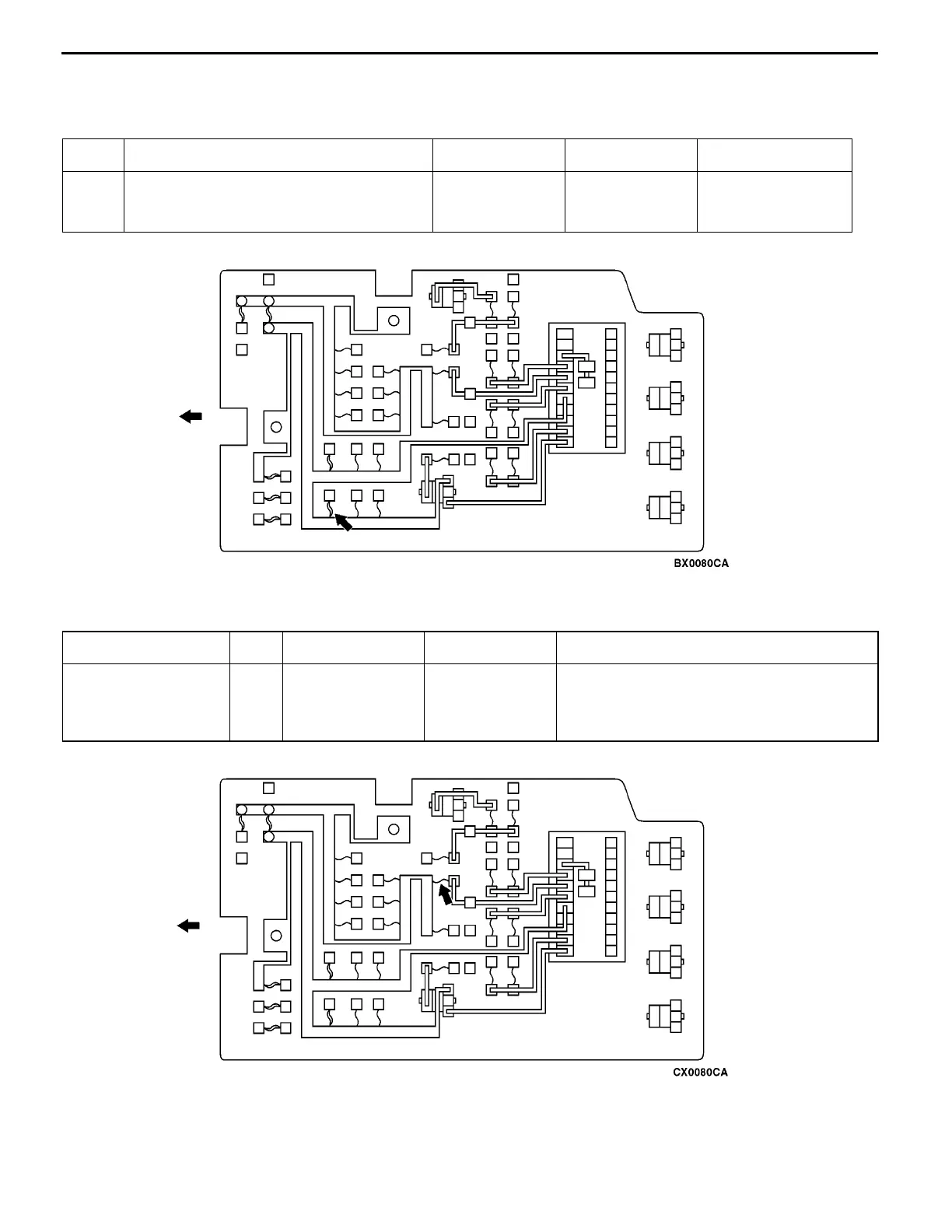

CIRCUIT DIAGRAMSCIRCUIT DIAGRAMS
3-2
CENTRALIZED JUNCTION
FUSIBLE LINK
No. Circuit Type Housing colour Rated capacity (A)
6 Mitsubishi stability control, engine control,
INVECS-II, immobilizer and auto-cruise
control system
Connector type Light blue 20
(Relay box in engine compartment)
Front of vehicle
1
2
3
4
5
6
7
DEDICATED FUSE
Power supply circuit No. Rated capacity (A) Housing colour Circuit
Battery
(fusible link No.1)
7 10 Red Clock, combination meter, door lamp, ignition
key cylinder illumination lamp, center display,
radio, tape player, room lamp, sunroof circuit
and ECU power supply
(Relay box in engine compartment)
Front of vehicle
12
3
4
5
67
8
9
10 11
12
13
14
15 16
17
18
19
20
21
22 23
