(3) Execution procedure for automatic write to standard ROM
Perform automatic write to standard ROM in the following procedure.
(a) Operation on GX Developer (Setting of automatic write to standard ROM)
1) In the boot file setting of the PLC parameter dialog box, check "Clear the
program memory" and "Auto Download all data from memory card to standard
ROM".
In the boot file setting, set the parameters, programs, etc. to be booted.
(Set the "transfer from" to "Standard ROM".)
2) Store the set parameters and programs to be booted into the memory card.
( Section 5.2.6(4))
(b) Operation on High Performance model QCPU, Process CPU or Redundant
CPU (Automatic write to standard ROM)
1) Power OFF the PLC.
2) Install the memory card, which stores the parameters and programs to be
booted, into the High Performance model QCPU, Process CPU or Redundant
CPU.

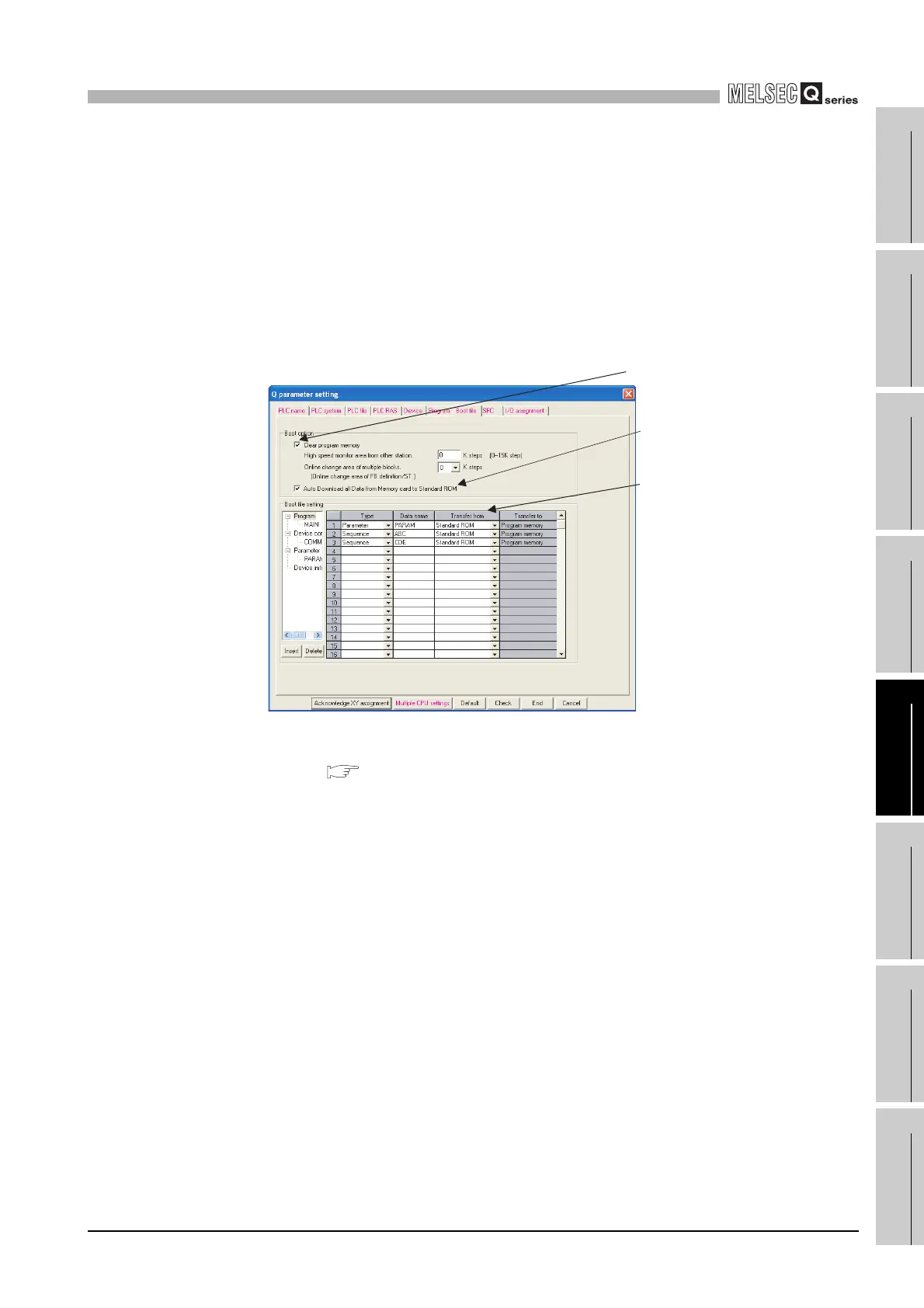

Figure 5.33 Setting of Auto Download all data from memory card to standard ROM
Check "Clear program memory".
Check "Auto Download all data
write from memory card to
standard ROM".
Set "transfer from" to "Standard
ROM".
