6.13 Execution Time Measurement
6.13.2 Interrupt program monitor list
6
FUNCTIONS
6.13.2 Interrupt program monitor list
(1) Definition of Interrupt Program Monitor List
This function displays execution count of the interrupt program.
This is used to confirm the execution status of the interrupt program.
(2) Using the Interrupt Program Monitor List
Choose [Online] [Monitor] [Interrupt program monitor list]. The "Interrupt
Program Monitor List" dialog box appears on screen.
Figure 6.64 shows an execution example of the interrupt program monitor list:
(a) Execute count
The number of times the interrupt program was executed is displayed. This
function starts counting the number when CPU module is in RUN status (When
the number reaches 65536 times, it is reset to 0).
(b) Common Comment
This indicates device comments created on interrupt points.

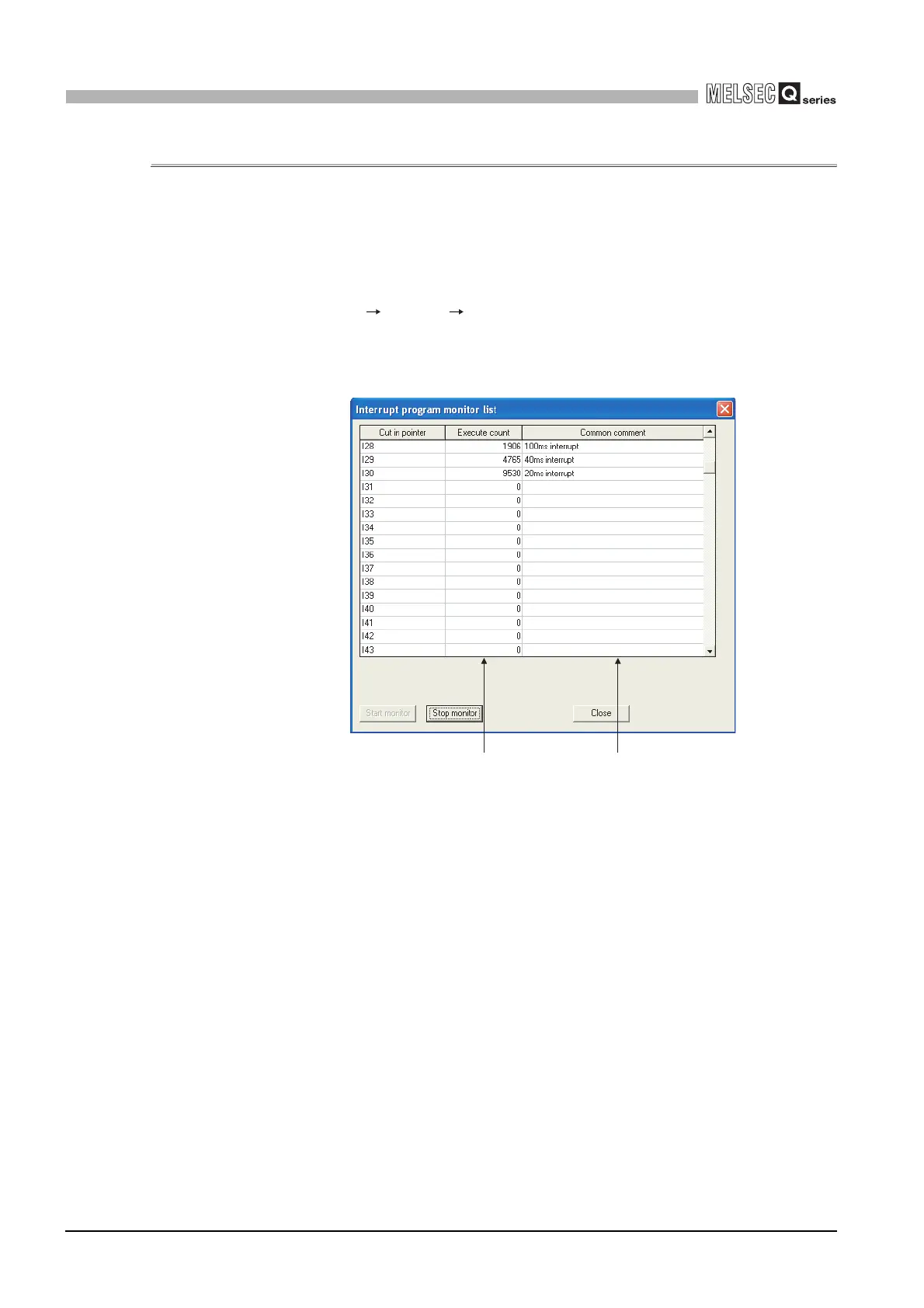

Figure 6.64 Interrupt program monitor list
(a) (b)
