6.14 Sampling Trace Function
6
FUNCTIONS
(b) When sampling trace is completed
After the sampling trace is completed, SM805 (sampling trace complete) is turned
on.

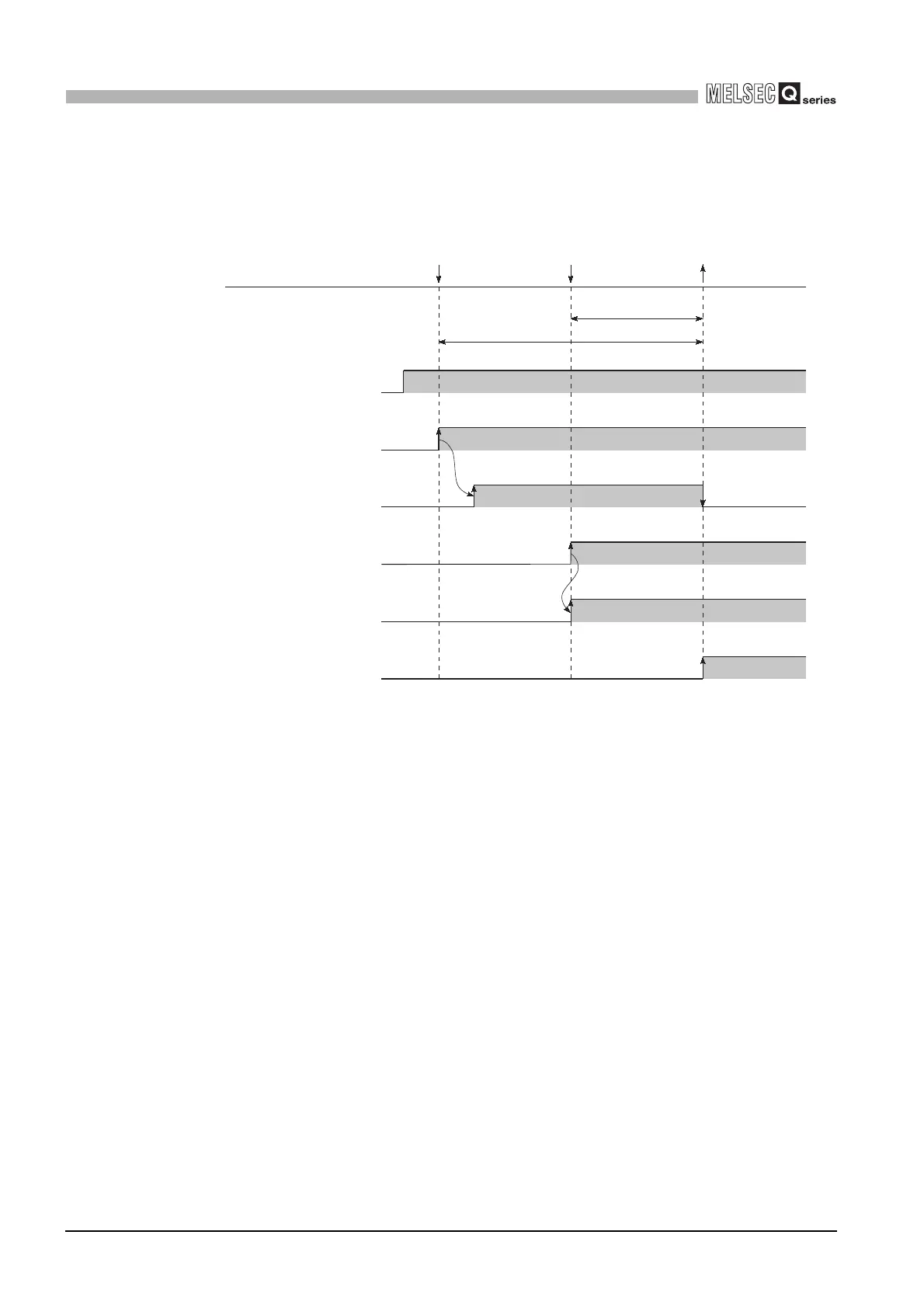

Figure 6.69 Sampling trace timing chart
Trace start request
Trigger condition
enabled
Trace ends by number
of trace after trigger
Number of trace
after trigger
Number of all traces
SM800
SM801
SM802
SM803
SM804
SM805
(Sampling trace ready)
(Sampling trace start)
(Sampling trace executing)
(Sampling trace trigger)
(After sampling trace trigger)
(Sampling trace complete)
