10.2 Internal User Devices
10.2.1 Input (X)
POINT
1. When debugging a program, an input (X) can be set to ON/OFF as described
below.
• GX Developer test operation
• OUT Xn instruction
2. The input (X) can also be used in the following cases.
• Refresh target (CPU module side) device of RX of CC-Link
• Refresh target (CPU module side) device of the
CC-Link IE controller network or MELSECNET/H

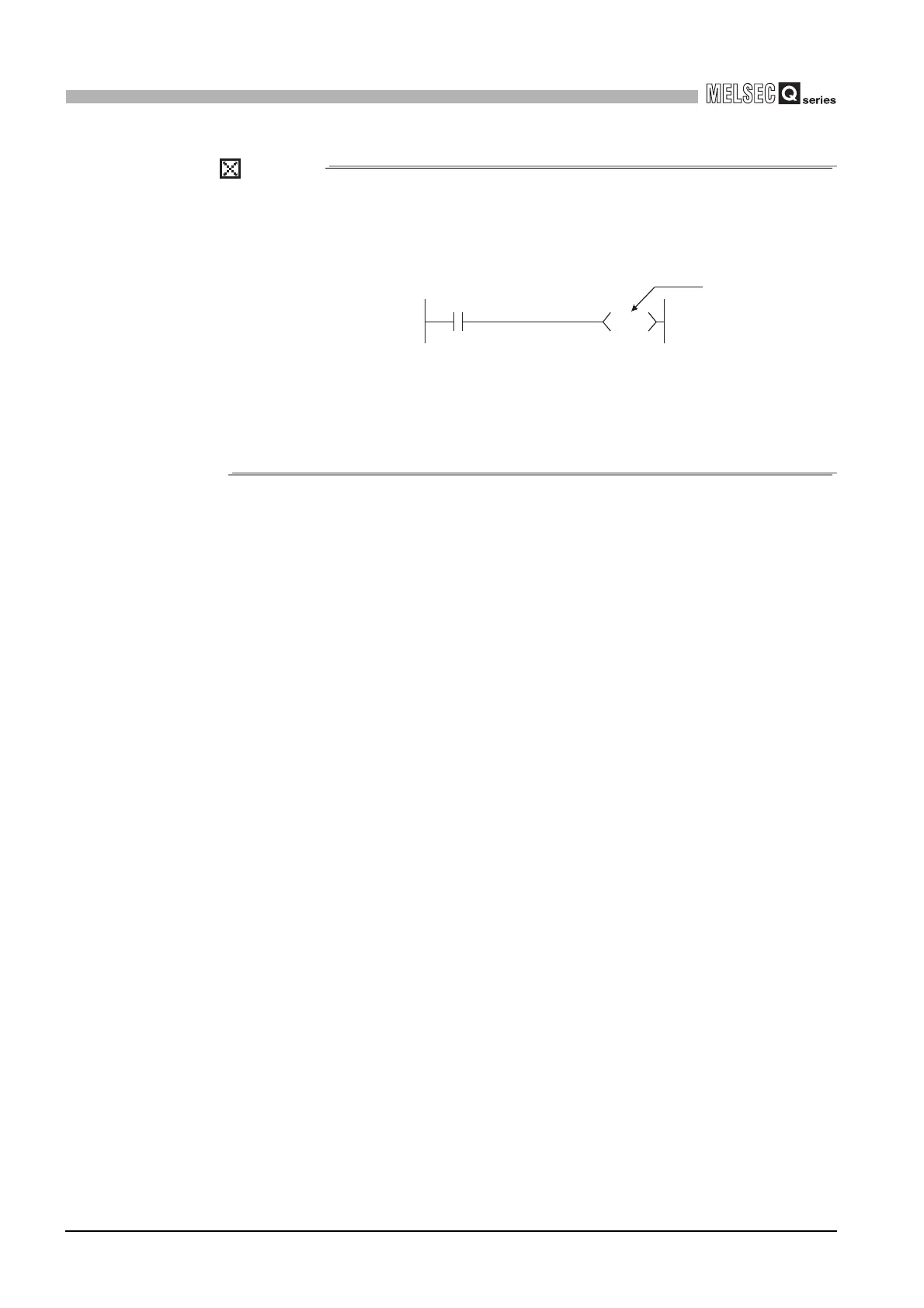

Figure 10.5 Input(X) ON/OFF by the OUT Xn instruction
X1
OUTX1
ON/OFF command
