12
PROCEDURE FOR WRITING PROGRAM TO CPU
MODULE
12.2 High Performance Model QCPU, Process CPU, Redundant CPU, Universal Model QCPU

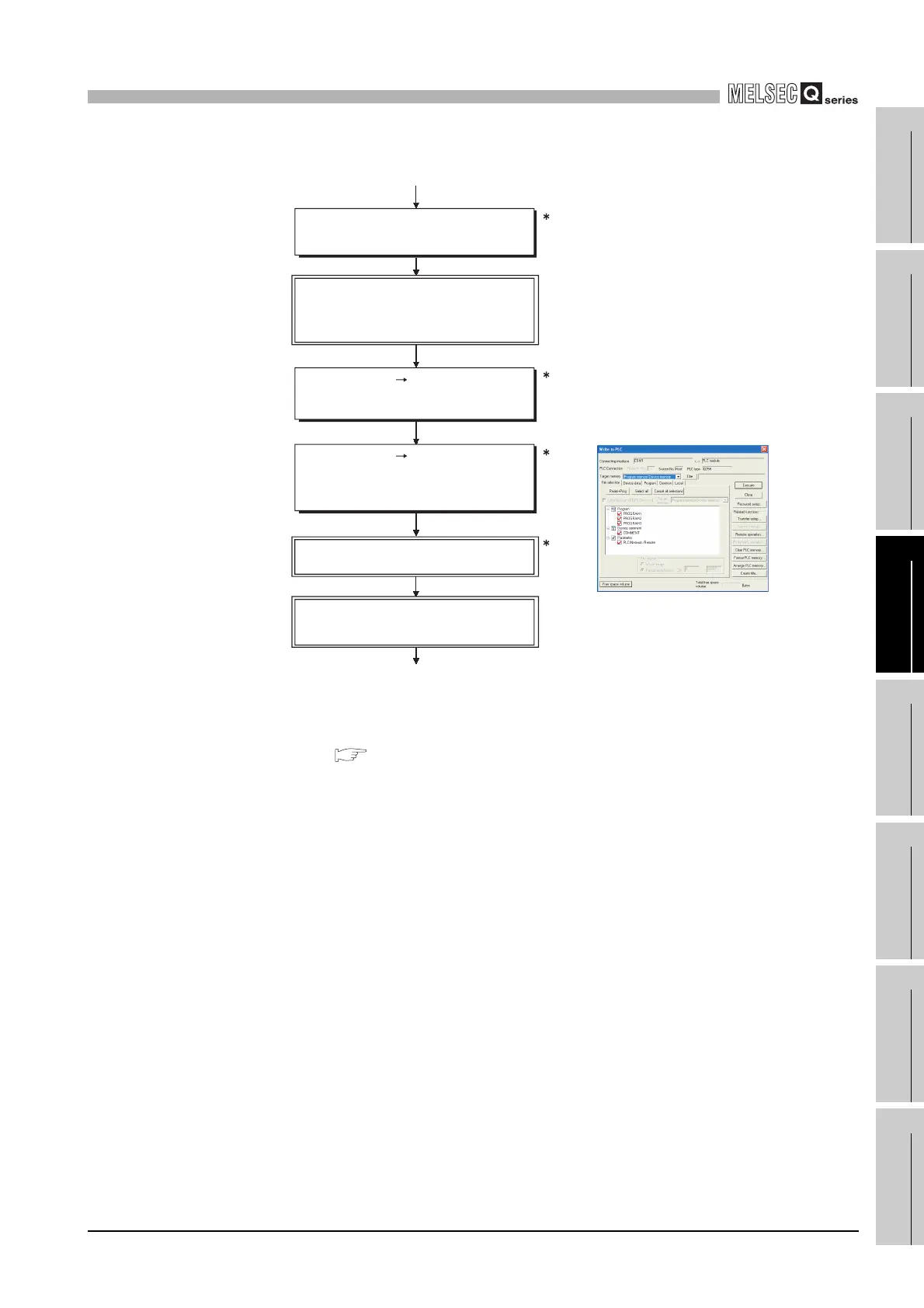

12.2.4 Procedure for writing multiple programs
12 - 16
9
Parameters
10
Device Explanation
11
CPU Module Processing
Time
12
Procedure for Writing
Program to CPU ModuleAppendicesIndex
* 2 : Refer to the following manual for the procedure when the Redundant CPU is used.
QnPRHCPU User's Manual (Redundant System)
* 3 : When storing the file register and device initial value data into the standard RAM or memory card
(except the Flash card), also format the standard RAM or memory card.
* 4 : Write each data to the following memory.
•Program ..... Program memory
•Parameter ..... Memory set as the parameter-valid drive with the DIP switches
•Device initial value ..... Memory specified in the PLC file setting of the PLC parameter dialog box
* 5 : RUN/STOP/RESET switch for the Universal model QCPU.
............
2)
3)
Set the RUN/STOP switch to STOP and
the RESET/L.CLR switch to the neutral
position, and power ON the PLC (the
ERR. LED turns on).
2
Choose [Online] [Format PLC memory]
on GX Deveoper, and format the program
memory.
Write to PLC screen
2
Power the PLC OFF and then ON, or
reset the CPU module.
Set the RUN/STOP switch to the RUN
position to place the PLC in the RUN
status.
4
3
Choose [Online] [Write to PLC] on GX
Developer, select "Program
memory/device memory", and write the
parameters, created program, etc.
Connect the personal computer, which is
installed with GX Developer, to the CPU
module.
To Next Page
