MELSEC-Q
4 ABOUT QD51 (-R24) FUNCTIONS

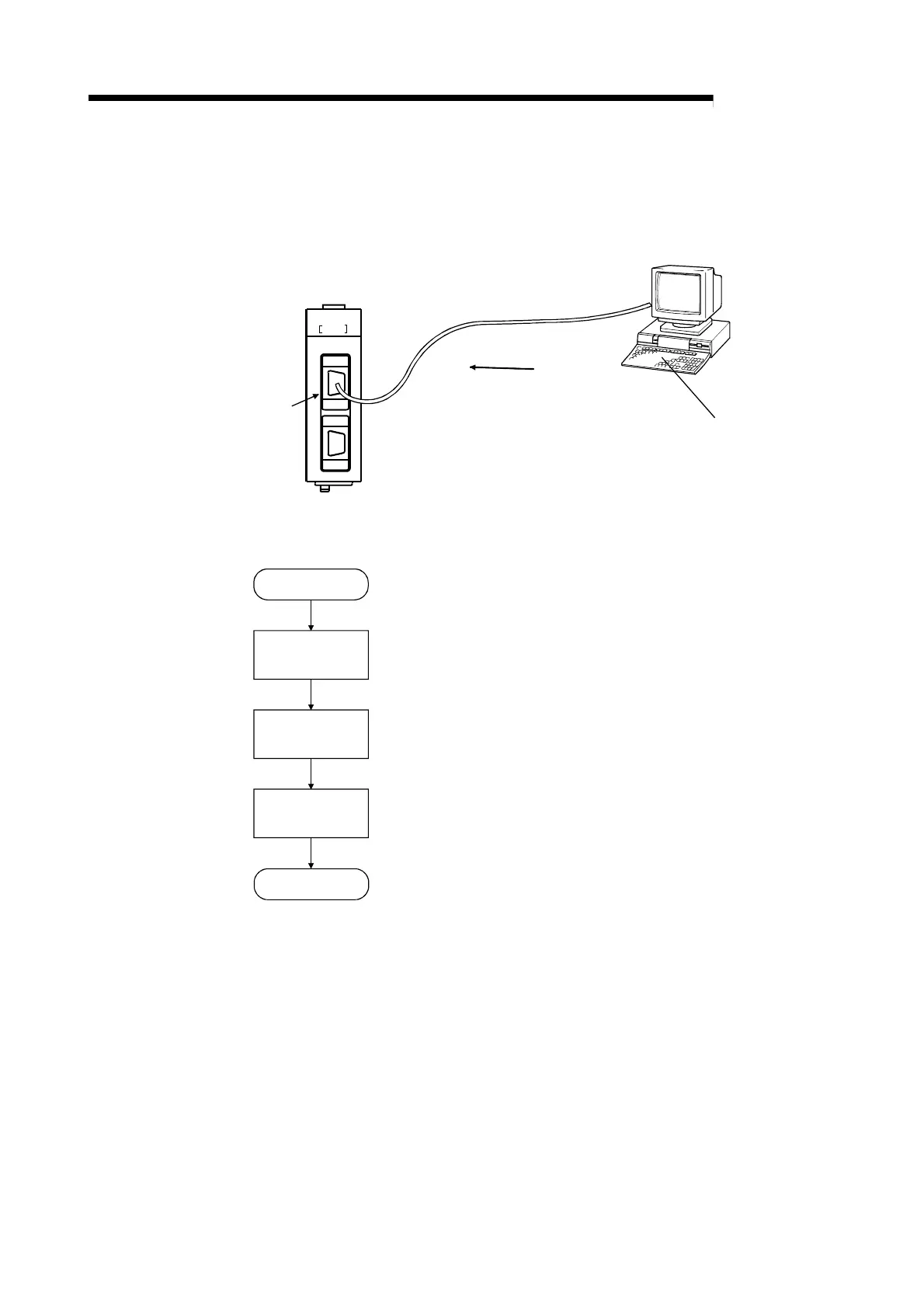

(2) Inputting data from a console keyboard
Here, the way of thinking in the case of inputting of data from a console keyboard
is explained.
QD51
CH.1
QD51
RUN ERR
CH.1
CH.2
CH.1
CH.2
QD51
RS-232
RS-232
PRG
SD
RD
P.RUN
SD
RD
Keyboard
Console
[In the case of a PC/AT personal computer]
Data input
(Input data from keyboard)
[Procedure for inputting data from a console keyboard]
Carry out inputting of data from a console keyboard by the following procedure.
Set the data input
destination.
Wait for key input
from the keyboard.
Key input from the
keyboard.
······ The data input destination is set in the console channel
by the ZIDV command.
······ Execution of an INPUT command, etc.
Start
End
