'11 • SCM-SM-110

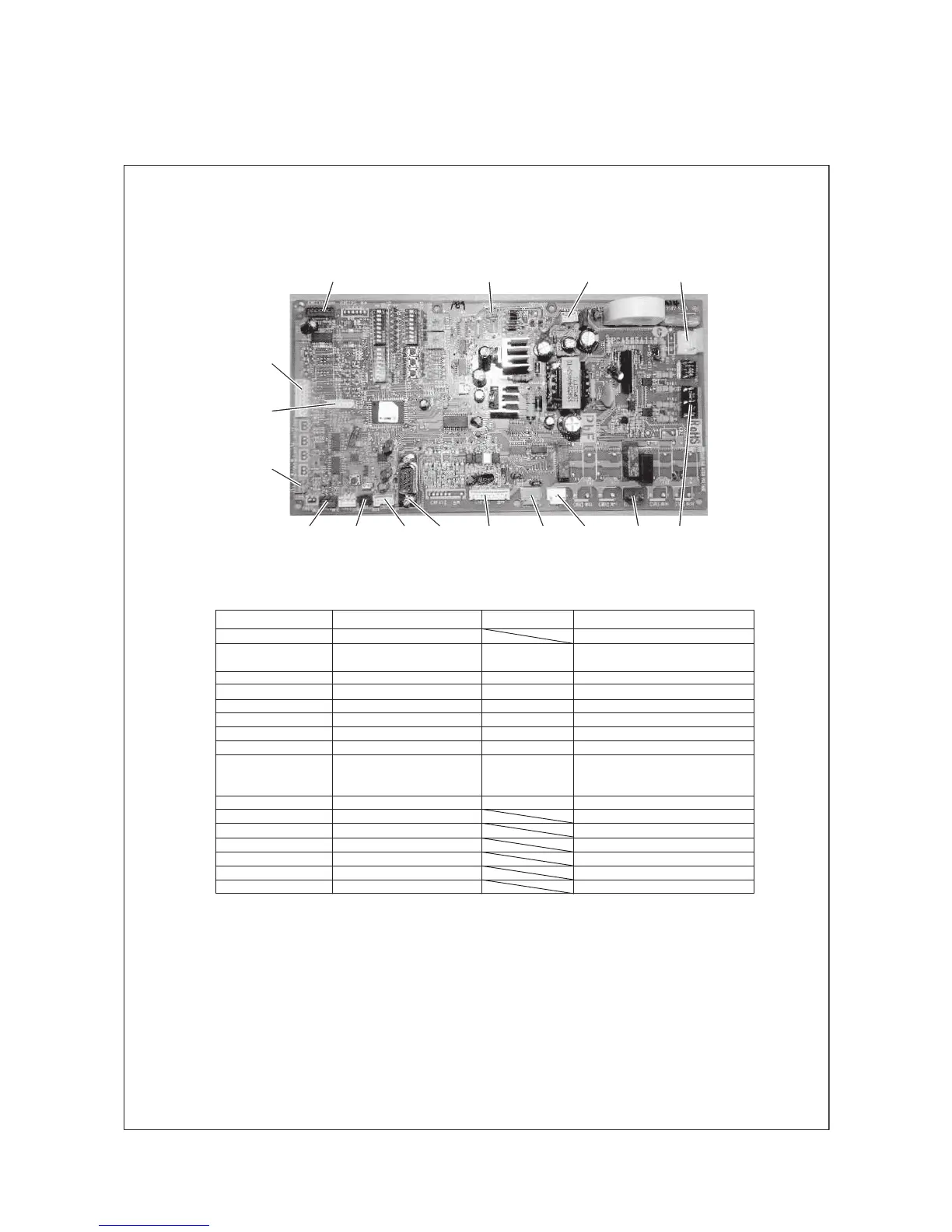

＜Control PCB:PCB1＞
Connector Connected to Norma l value Remark
CNX1 CNX2 on PCB4
Signal of SL
CNI3 CNI4 on PCB2
1-3 DC18V
2-3 DC15V
CNA1 Power transistor 280VD C
CNW 220-240VAC PCB3 (N/F PCB)
CNN1 20S 220-240VAC for solenoid coil of 4 way valve
CNR1 Crankcase heater 220-240VAC
CNA2 280VDC green-＞P, white-＞N
CNFAN1 fan motor Refer to page 240
CNI1 CNI2 on PCB2
1-2 5VDC
1-3 0-5VDC
1-4 0-5VDC
CNS1 CNS2 on SUB PCB 13VDC
CNL1
High preassure sensor
CNP1 Thermistor Tho-P
CNTH Thermistor Tho-R,Tho-D,Tho-S,Tho-A
CN EEV1 EEVH 1
CN E F o r R AM checker F o r R AM checker
CNV For Mente PC For Mente PC
CNEEV1
CNFAN1CNI1CNS1
CNA1
CNWCNL1
CNP1
CNI3CNX1
CNTH
CNN1CNA2 CNR1CNV
CNE
※
※
※used only at our factory
