Mitsubishi SCM100ZJ-S1 User Manual

-
243
-
'11 • SCM-SM-110

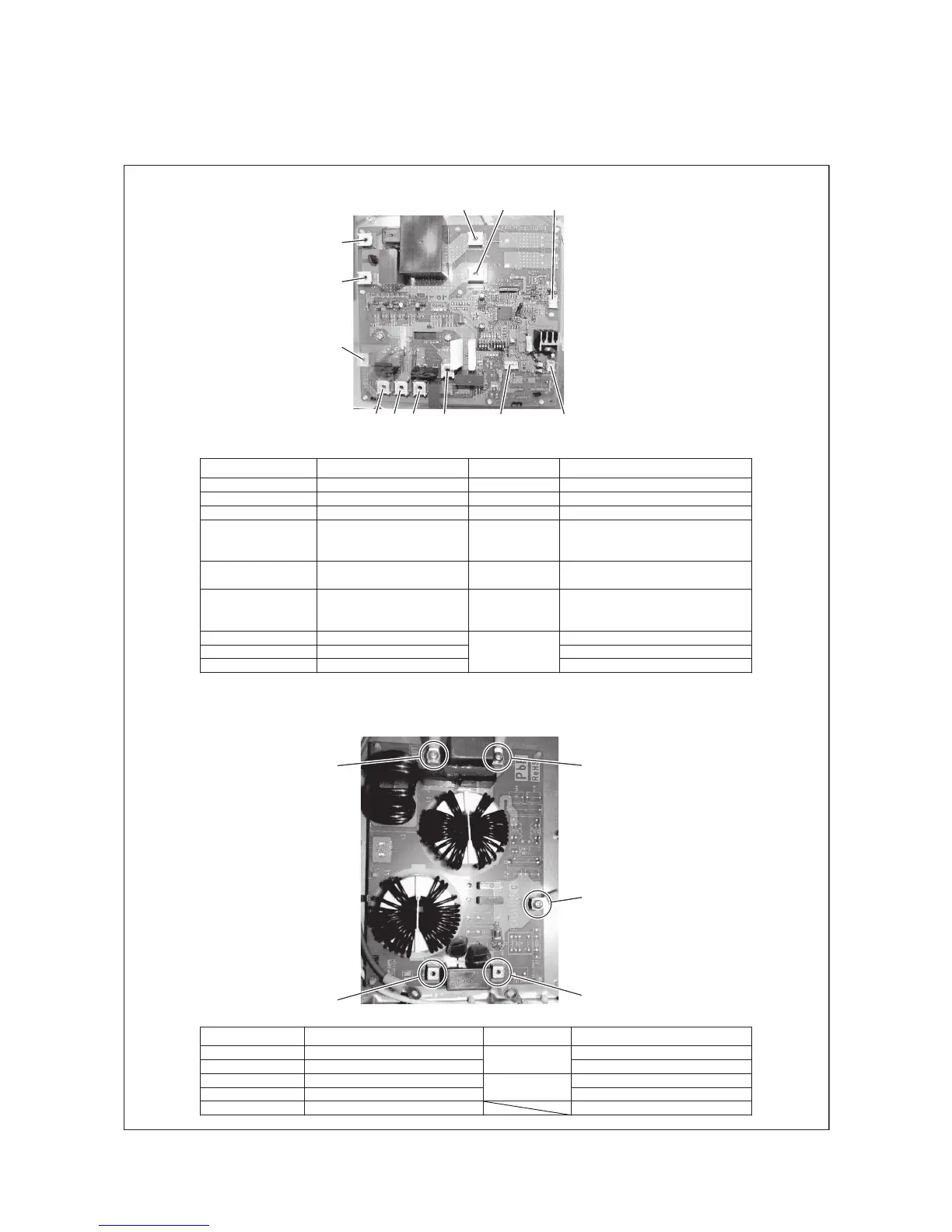

＜Inverter PCB:PCB2＞
Connector Connected to Normal value Remark
P1-N1 Diode Module 280VDC
P2-N2 Active filter module 280VDC
P3-N3 Contactor 280VDC
300VDC
U Compressor
V Compressor
W Compressor
COMP ON 300VDC
CNI2 CNI1 on PCB1
1-2 5VDC
1-3 0-5VDC
1-4 0-5VDC
CNI4 CNI3 on PCB1
1-3 18VDC
2-3 15VDC
CNACT1 Active filter module
1-2 15VDC
1-3 0-5VDC
1-4 0-3VDC
＜SUB PCB: PCB3＞
Connector Connected to Normal value Remark
TB3 TB5 on PCB5,L
_
IN on PCB4
TB4 TB6 on PCB5,N
_
IN on PCB4
TB5 Diod e Module
TB6 Diod e Module
TB7 Earth on control box
220-240VAC
220-240VAC
P2
(RD)
CNI2
P1
(RD)
P3
(RD)
N2
(BL)
N1
(BL)
N3
(BL)
CNI4
WVU CNACT1
TB5 TB6
TB7
TB3
TB4
