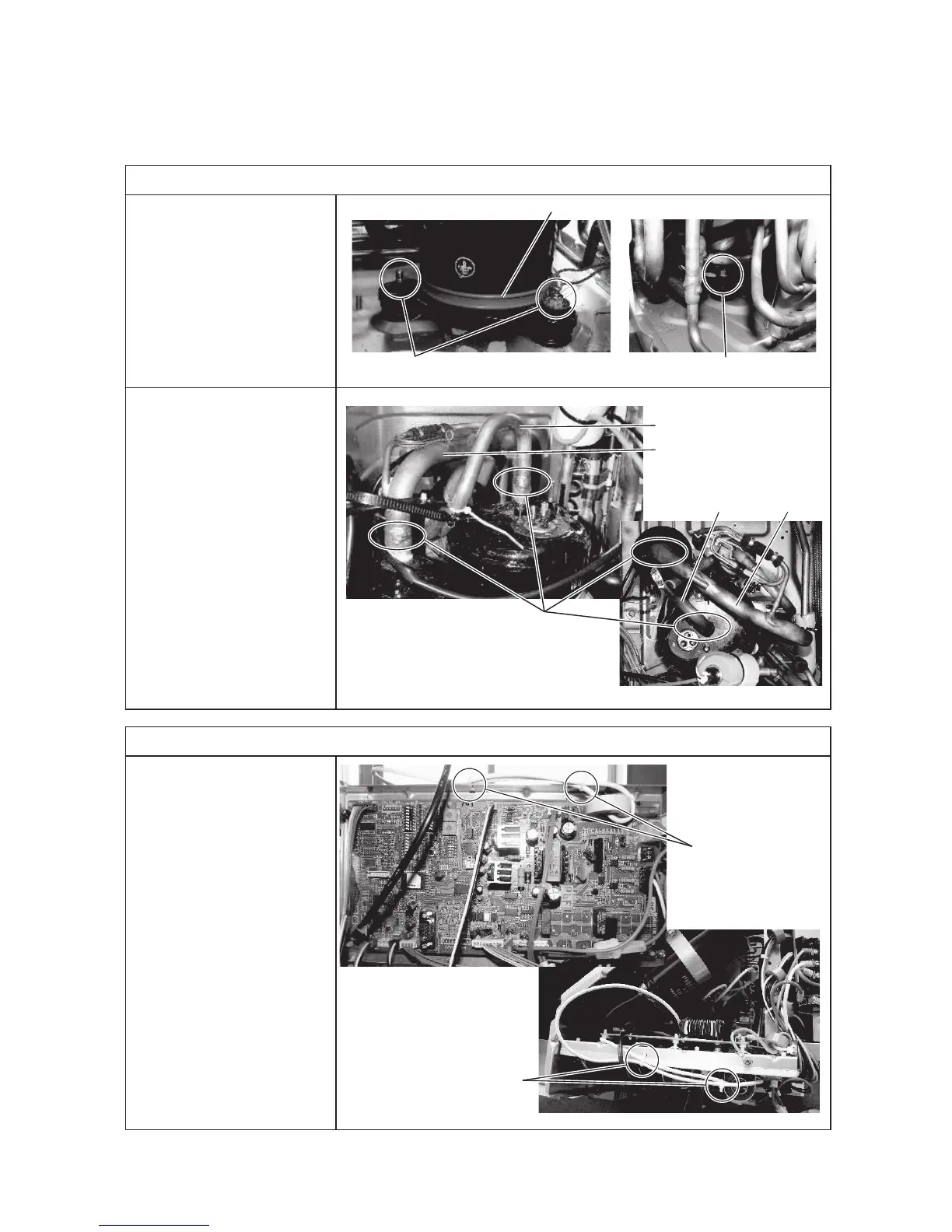

Compressor (CM)
13. Loosen 3 nuts of
compressor fixing bolts.
14. Remove the crankcase
heater.
15. Disconnect the pipes for
suction and discharge by
brazing.
(It is available to cut suction
and discharger pipes to
remove the compressor)
16. Remove the compressor.
17. Replace to new compressor.
Note: Before placing the new
compressor, be sure
to mount the crankcase
heater onto the new
compressor properly.
Control PCB (PWB1) on the 1st layer
1. Cut the straps of the white
cable passing through the
CT.
Nut of compressor
fixing bolts
Nut of compressor
fixing bolts
Crankcase heater
Suction pipe
Suction pipe
Discharge pipe
Discharge pipe
Straps
Straps
〔Top view〕
〔Top view〕
〔Side view〕
Positions to be
disconnected
〔Rear view〕〔Front view〕
〔Front view〕
