(b) Replacement procedure of the fan unit
Notes (1) The unit is a heavy item. It must be supported securely and handled with care not to drop when it is necessary toreplace.
Notes (2) For the maintenance space, refer to page 120.

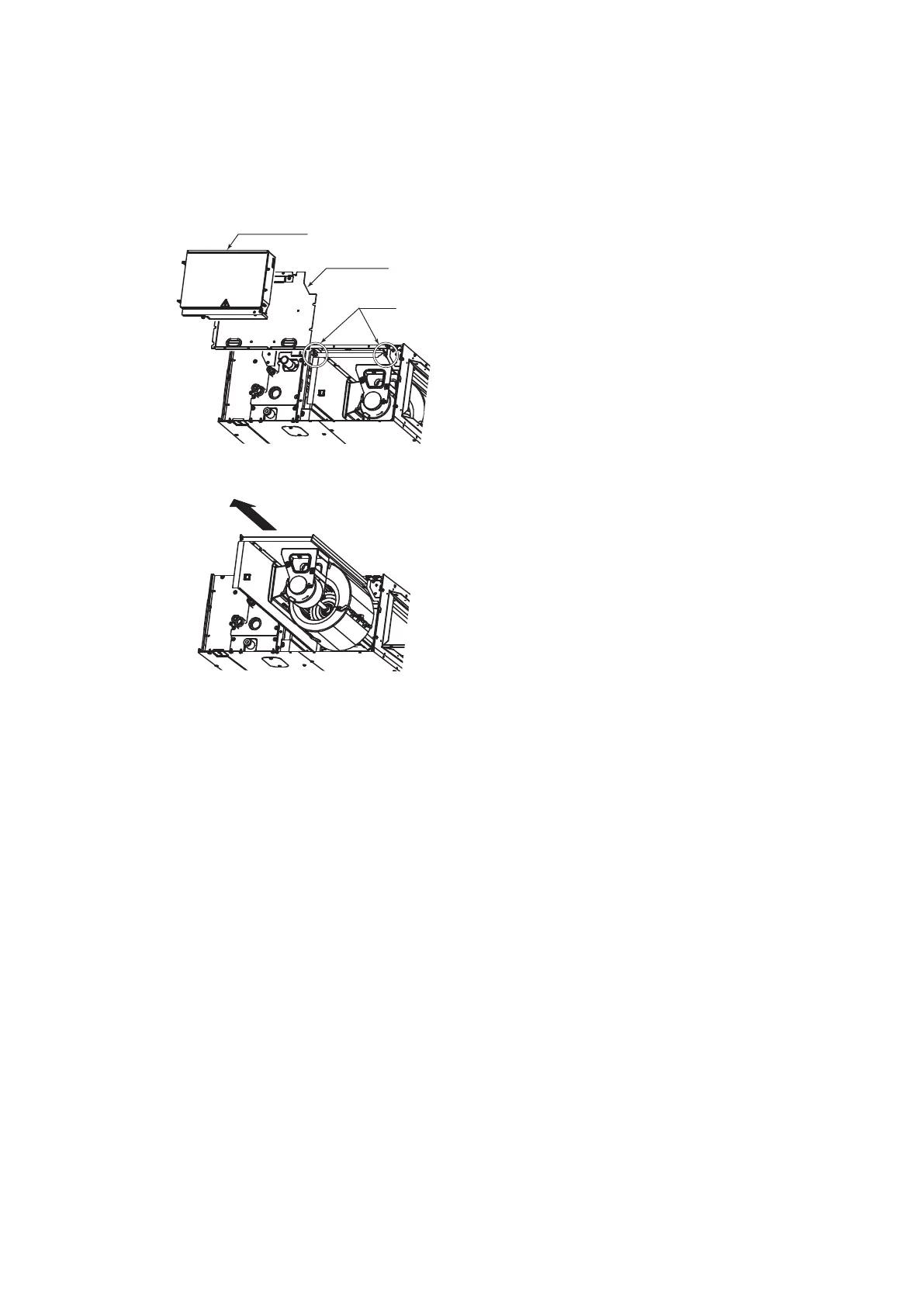

(i) Remove the control box and the side panel, and remove the screws marked in the circles (2 places) in the figure.
(ii) Take out the fan unit in the arrow direction.
Control box
Side panel
Screw
