Drainage
Too high It curves like a wave.
under 5 cm
Smell from
sewerage drains.
The end of the
drain hose is
touching the
water.
The gap to the
ground is less
than 5 cm.
The end of the
drain hose is
touching the
sewage drains.
Drain hose
Extension drain hose
when a part of the extension drain hose is indoors
Shielding pipe
Indoor unit
Hook (2 locations)
Installation
board
Instalation
board
Indoor unit
base lower hook
Wall
Installing steps
1. Hook the upper part
of the indoor unit to
the installation board.
2. The unit can be
installed simply by
gently pushing in the
lower part.

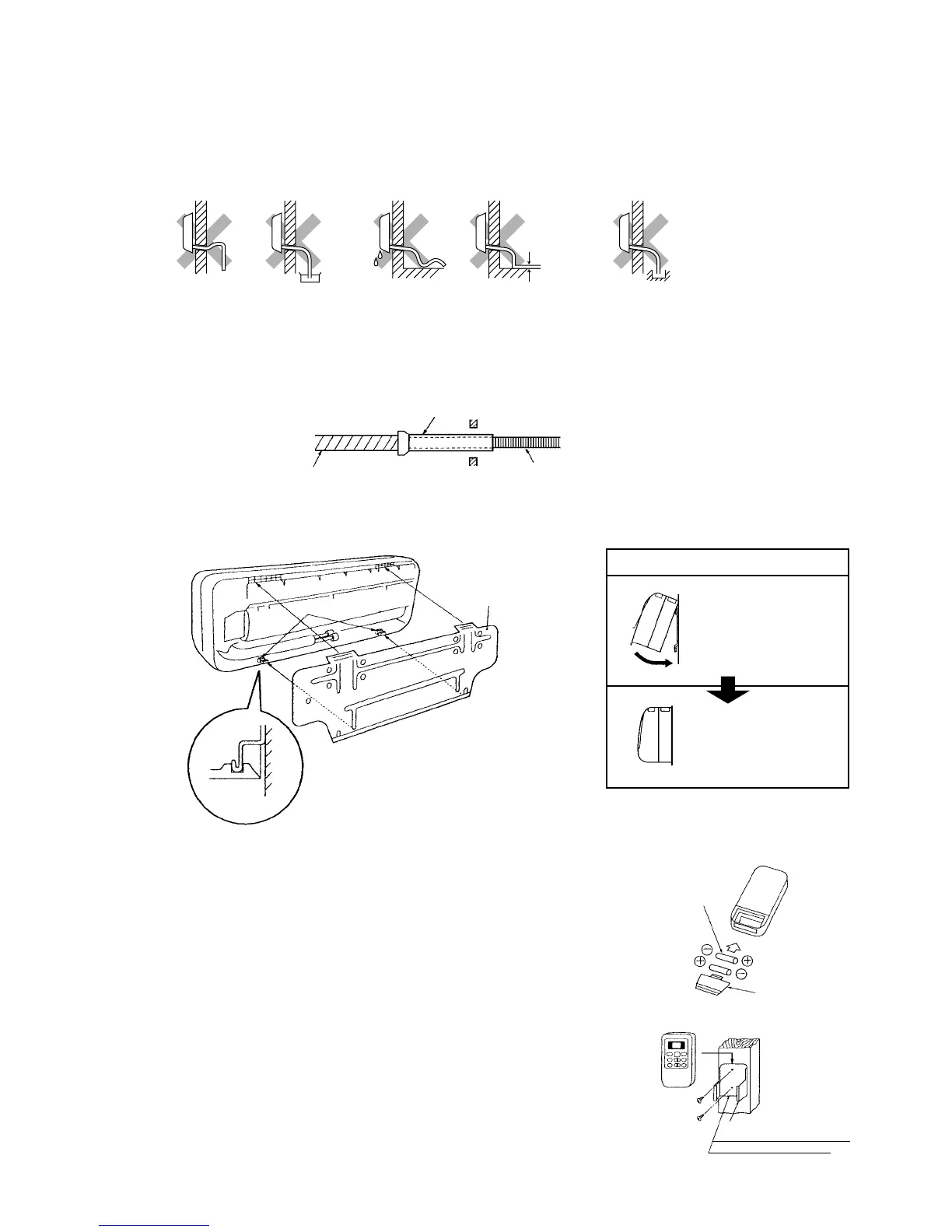

¡ The drain hose must be fit with a downward slope.
¡ Do not set the drain hose like the following illustrations.
¡ Pour water in the drain pan below the heat exchanger and confirm that the water is drained outside.
¡ If the extension drain hose is indoors, make sure it is insulated using a shielding pipe (not supplied).
5) Securing the Indoor Unit to the Installation Board
6.5.2 Installation of remote controller
(1) Mounting method of battery
Uncover the remote control switch, and mount the batteries (UM-4 × 2 pieces) in
the body regularly.
(Fit the poles with the indication marks, , & . without fail)
(2) Fixing to pillar or wall
(a) Conventionally, operate the remote control switch by holding in your hand.
(b) In the case of stationary operation service as by mounting on the holder for
the remote control switch, make sure that the locating place is satisfactory
for access service before installing it.
(c) Avoid installing it on a clay wall etc.
Cover
Battery
Holder (remote control switch)
Adjust the installation to vertical attitude.
Avoid projecting the screw head.
Wood screw
ø3.5 × 16
