Mitsubishi SKM32ZA User Manual

90

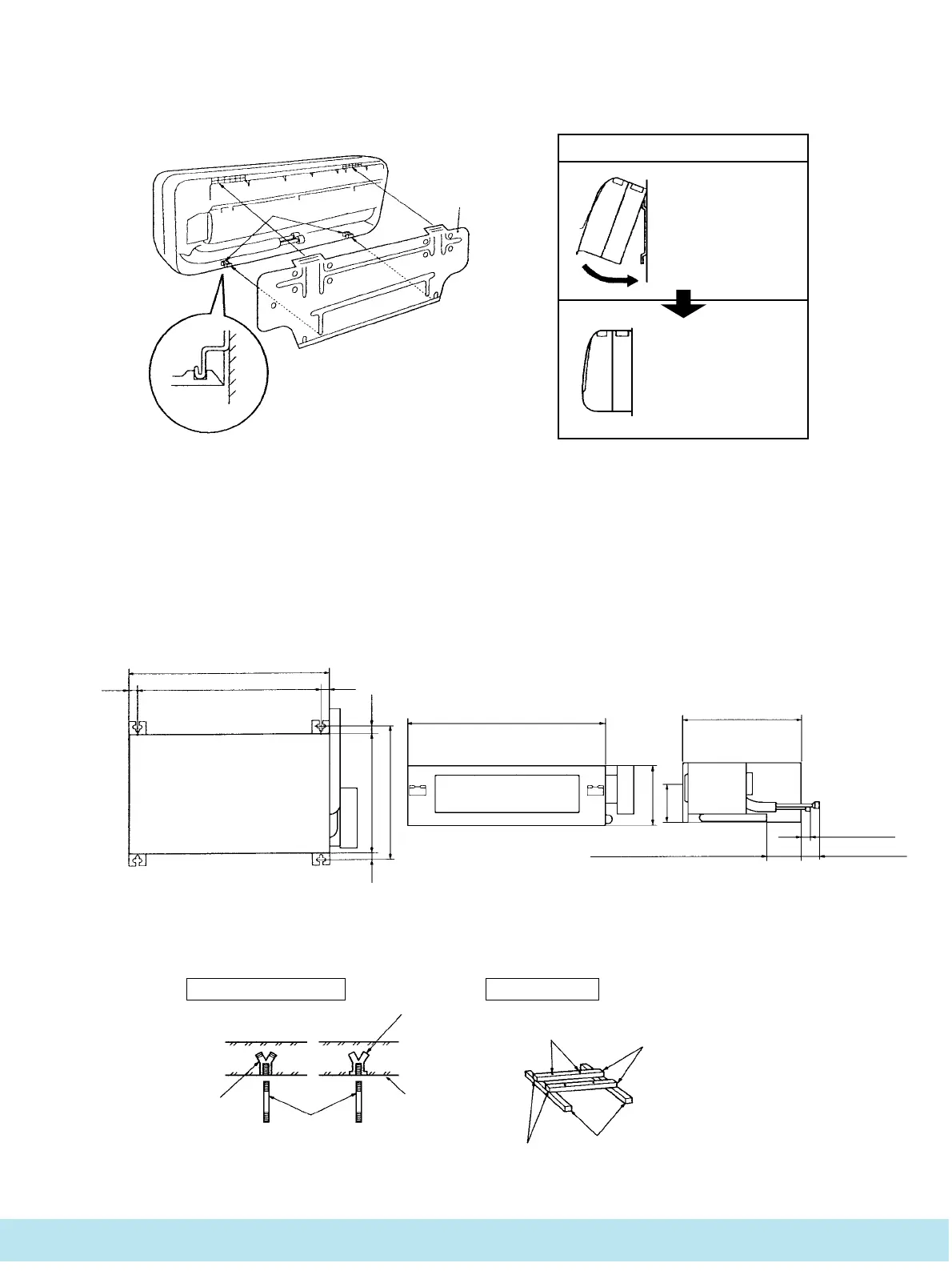

Indoor unit
Hook (2 locations)
Installation
board
Instalation
board
Indoor unit
base lower hook
Wall
Installing steps
1.Hook the upper part
of the indoor unit to
the installation board.
2.The unit can be installed
simply by gently push-
ing in the lower part.
5) Securing the Indoor Unit to the Installation Board
740
38
Gas side pipes
Liquid side pipes
135 75
455
Front Side
Plan
35 35
740
670
Drain hose
(Connection opening diameter ø16)
Suspension bolt pitch
455
230
150
30 30
515
Suspension bolt pitch
(2) Ceiling recessed type (SRRM)
These instructions are for the installation of the main unit. If this unit is to be used in combination with a separately sold compo-
nent, also refer to the installation procedures for that component. (See page 98.)
(a) Caution for installation
The safety precautions for installation are the same as the SKM type. Please refer to page 87.
(b) Installation of indoor unit
1) Installation dimensions
2) Drilling of holes in the wall and fixture of sleeve
The instructions for installation is the same as the SKM type. Please refer to page 88 .
3) Securing the ceiling suspension bolts
Inserts
ConcreteHoled anchor
Holed plug
Suspension
bolts M8
Clamps
Beams
Holes for ceiling
suspension bolts
Square bars for suspension
the air conditioner
If steel embedded ceiling
If wooden ceiling
¡Secure the ceiling suspension bolts
firmly following the illustrations
and other instructions.
Unit: mm
