3.5.5 Electric wiring
(1) Connection of the power lines
(a) This multi-type room air conditioner receives its power from outside.
(b) An earth leakage breaker and a circuit breaker must be installed.
Their capacities are listed below.

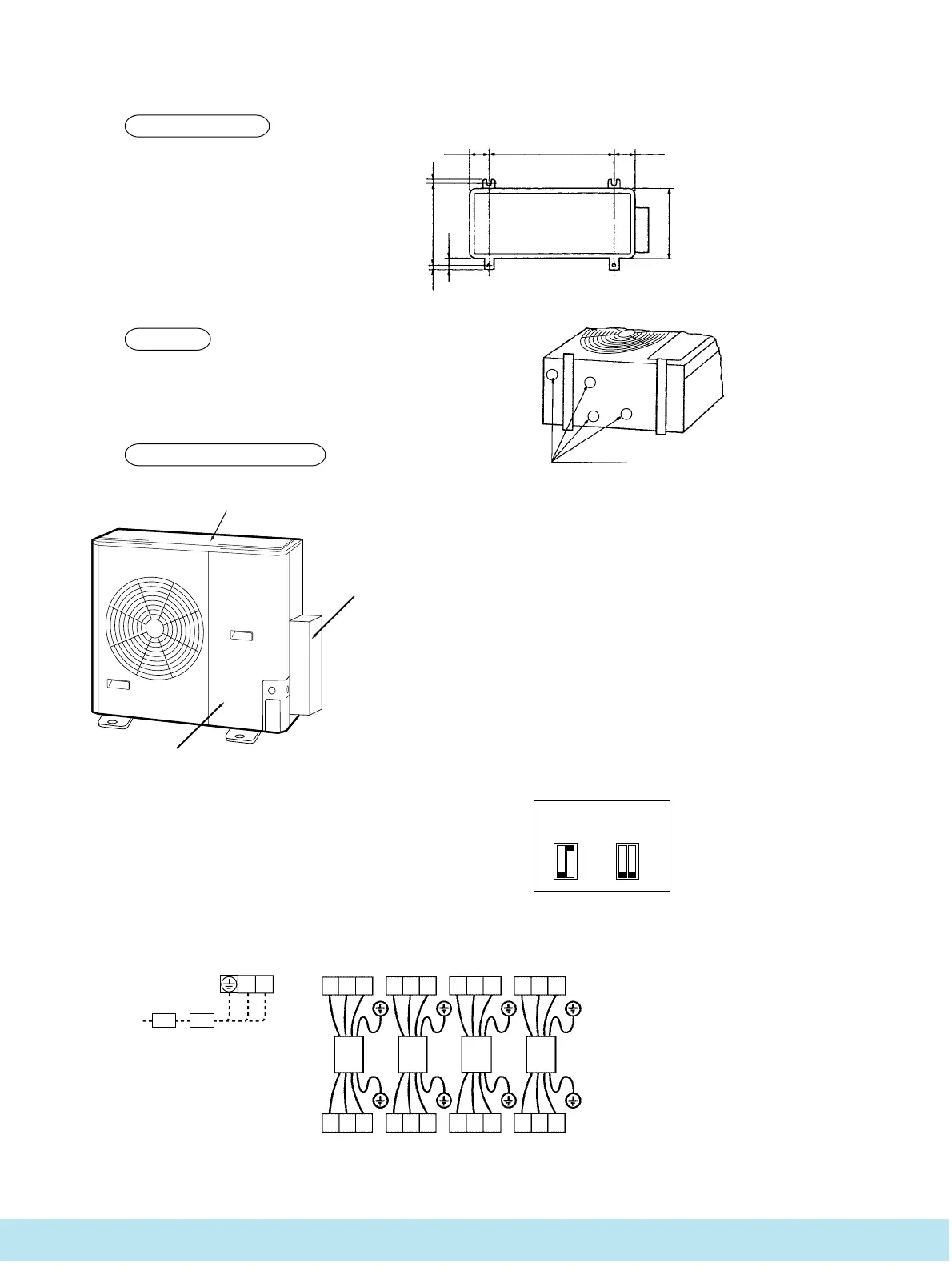

Securing the Unit
¡ Locations to secure the bolts.
¡ Use M10-M12 for the retaining bolts.
¡ Secure it firmly so the unit will not fall during earthquakes and from sudden gusts of wind.
Drainage
¡ There are 3 holes in the bottom panel of the
outdoor unit to drain condensation.
Removing the Outer Panel
1 Service panel (front)
¡Remove when conducting the following: measuring the high/low pressure
during maintenance, depressurizing, charging the refrigerant, operating the
protective function.
¡Remove the screws, and pull the panel towards the direction of the arrow.
2 Service valve cover
¡Remove the screws, and pull the cover towards the direction of the panel.
3 Top panel
¡Remove the screws, and pull the panel towards the direction of the arrow.
580 150150
2020
40
380
340
Drain hole
3 Top panel
2 Service
valve cover
1 Service panel (front)
Unit A Unit B Unit C Unit D
123 123 123 123
123 123 123 123
Out side
in side
Power source
LN
Earth
leakage
breaker
Circuit
breaker
Unit: mm
3.5.4 Setup of volt select sw
Setup VOLT SELECT SW on control board as follows.
1 In 240V area, put SW8 to ON.
2 In 220/230V area, put SW8 to OFF.
e
g
h
VOLT SELECT SW
ON ON
OFF OFF
240V 220/230V
SW7
SW8
SW7
SW8
