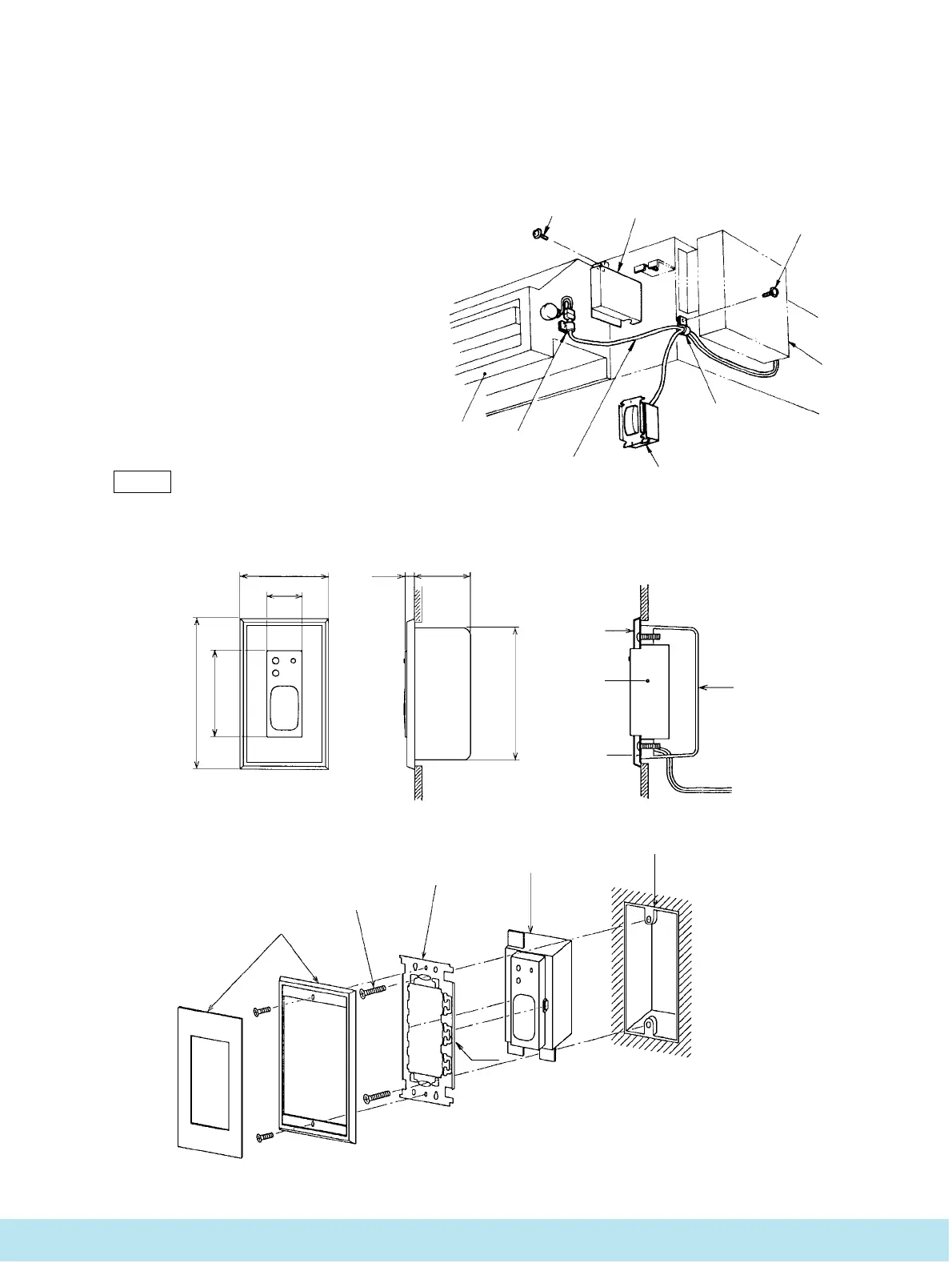

(c) Installation
The following is the procedure for installing the air outlet grille for suspended ceiling (RKB12).
(d) Installation procedure
1) Mount the air outlet duct to the indoor unit
using the eight tapping screws.
2) Remove the motor cover on the right side of
the air outlet duct, connect the connecting
wire for louver motor and secure with clamp.
3) Connect one end of the connecting wire for
louver motor to the connector for the louver
motor inside the controller and use the clamp
inside the controller to secure it.
4) Clamp the connecting wire for louver motor
and the wire for wireless receiver provided
with the indoor unit to the positions on the
indoor unit shown at the right and secure with
clamp.
Notes
● When receiver unit is mounted to wall
s Exterior drawing
s Mounting drawing
70 7.5 45
103 120
68.5
28
Plug plate
Recessed box
Mounting box
Wireless
receiver
Cross-section
RUN
TIMER
Plug plate for three outlets
(Procured by customer)
Screws for mounting box
(Provided with recessed box)
Mounting box
Wireless receiver
Recessed box
(Procured by customer)
Caulking
Unit: mm
Tapping screw
(ø 4 × 16)
Tapping screw
(ø 4 × 10)
Controller
Clamp
Connecting wire
for louver motor
Clamp
Air outlet duct
Wireless receiver (provided with the indoor unit)
Motor cover
