Mitsubishi SRK05CR-S

-
57
-
'15 • SRK-T-171
Models SRK05CR-S, S3, S6
SRK05CRP-S, S3
SRK09CR-S, S3, S4, S5
SRK09CRP-S, S3, S5

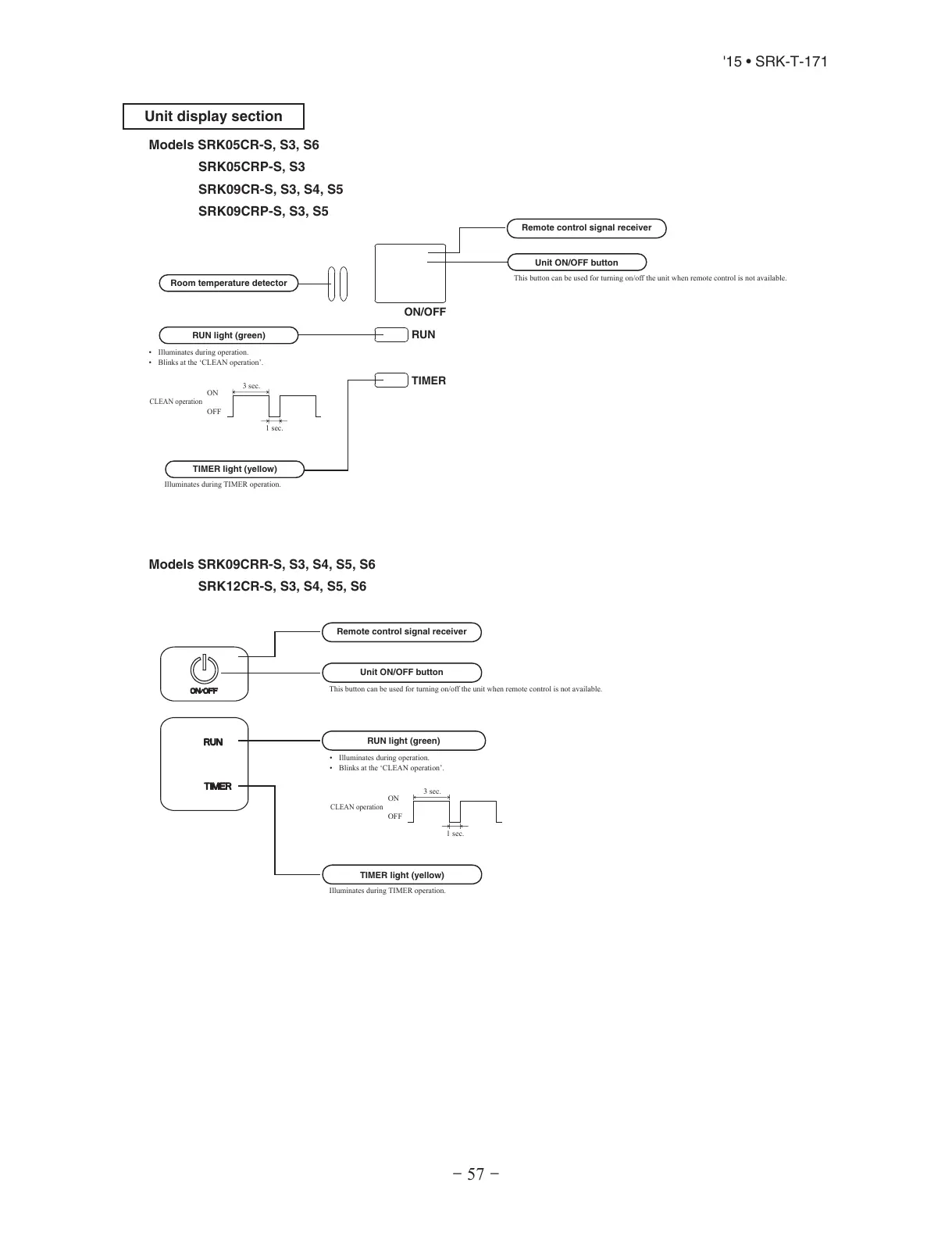

Unit display section
ON/OFF
RUN
TIMER
RUN light (green)
TIMER light (yellow)
Illuminates during TIMER operation.
Room temperature detector
Unit ON/OFF button
This button can be used for turning on/off the unit when remote control is not available.
This button can be used for turning on/off the unit when remote control is not available.
Remote control signal receiver
Unit ON/OFF button
• Illuminates during operation.
•
Blinks at the ‘ CLEAN operation ’.
TIMER light (yellow)
Remote control signal receiver
1 sec.
ON
OFF
CLEAN operation
3 sec.
• Illuminates during operation.
•
Blinks at the ‘ CLEAN operation ’.
1 sec.
ON
OFF
CLEAN operation
3 sec.
Illuminates during TIMER operation.
RUN light (green)
Models SRK09CRR-S, S3, S4, S5, S6
SRK12CR-S, S3, S4, S5, S6
