107
-

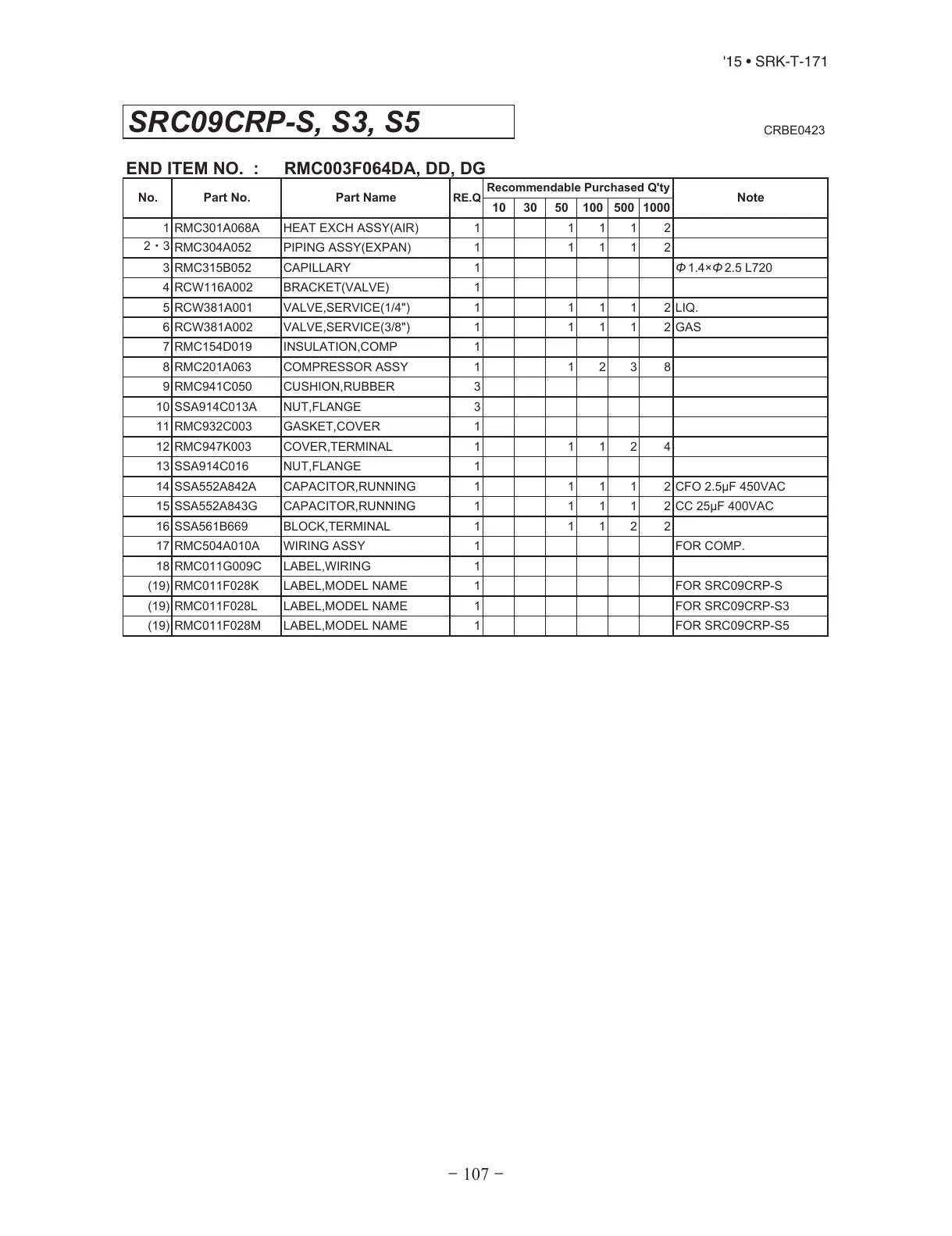

'15 • SRK-T-171
SRC09CRP-S, S3, S5
CRBE0423
END ITEM NO. : RMC003F064DA, DD, DG
10 30 50 100 500 1000
1 RMC301A068A HEAT EXCH ASSY(AIR) 1 1 1 1 2
2࣭3
RMC304A052 PIPING ASSY(EXPAN) 1 1 1 1 2
3 RMC315B052 CAPILLARY 1 ĭ 1.4×ĭ 2.5 L720
4 RCW116A002 BRACKET(VALVE) 1
5 RCW381A001 VALVE,SERVICE(1/4") 1 1 1 1 2 LIQ.
6 RCW381A002 VALVE,SERVICE(3/8") 1 1 1 1 2 GAS
7 RMC154D019 INSULATION,COMP 1
8 RMC201A063 COMPRESSOR ASSY 1 1 2 3 8
9 RMC941C050 CUSHION,RUBBER 3
10 SSA914C013A NUT,FLANGE 3
11 RMC932C003 GASKET,COVER 1
12 RMC947K003 COVER,TERMINAL 1 1 1 2 4
13 SSA914C016 NUT,FLANGE 1
14 SSA552A842A CAPACITOR,RUNNING 1 1 1 1 2 CFO 2.5ȝF 450VAC
15 SSA552A843G CAPACITOR,RUNNING 1 1 1 1 2 CC 25ȝF 400VAC
16 SSA561B669 BLOCK,TERMINAL 1 1 1 2 2
17 RMC504A010A WIRING ASSY 1 FOR COMP.
18 RMC011G009C LABEL,WIRING 1
(19) RMC011F028K LABEL,MODEL NAME 1 FOR SRC09CRP-S
(19) RMC011F028L LABEL,MODEL NAME 1 FOR SRC09CRP-S3
(19) RMC011F028M LABEL,MODEL NAME 1 FOR SRC09CRP-S5
NoteNo. Part No. Part Name
RE.Q
Recommendable Purchased Q'ty
