Mitsubishi SRK12CR-S6 - Page 77

-
75
-
'15 • SRK-T-171

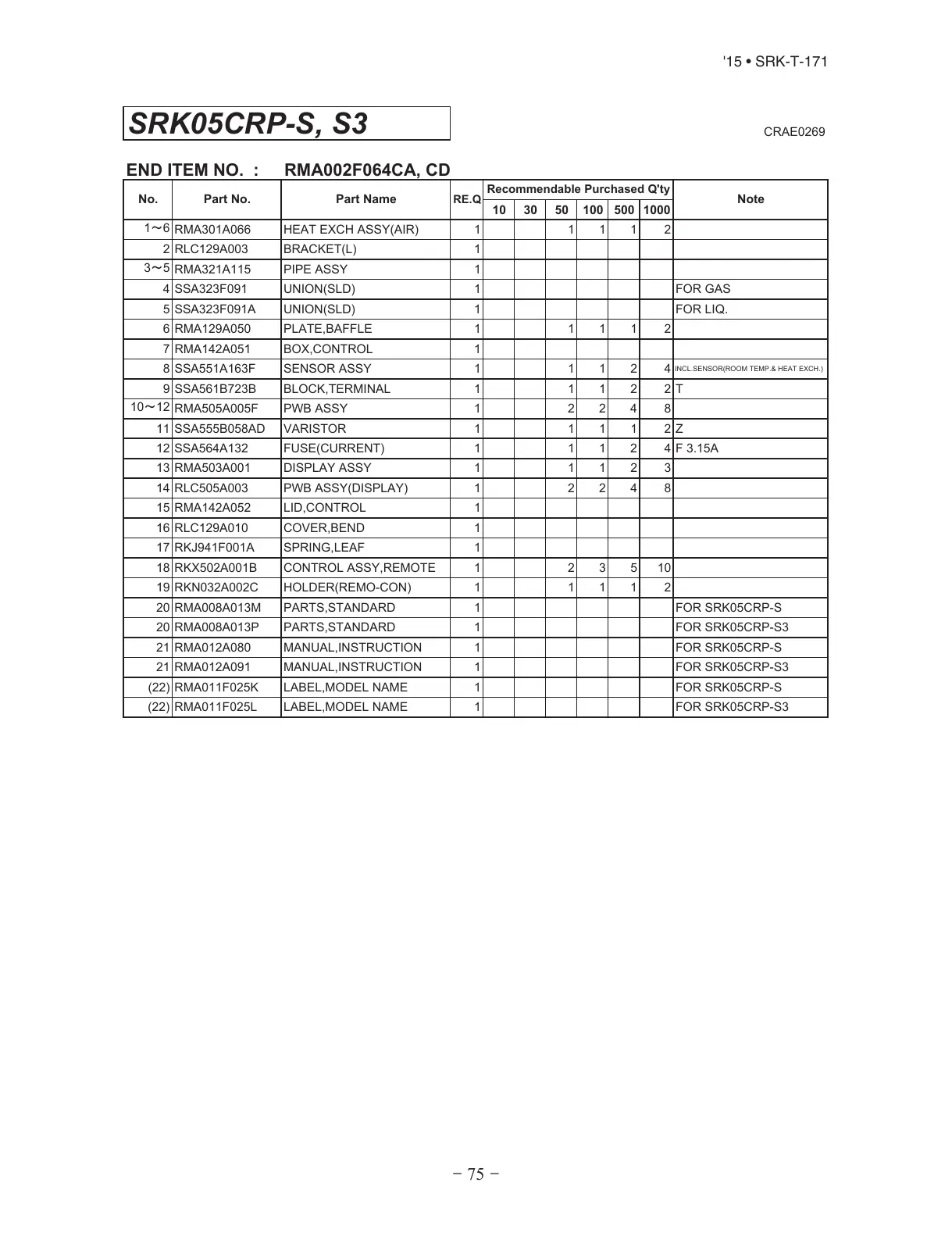

SRK05CRP-S, S3
CRAE0269
END ITEM NO. : RMA002F064CA, CD
10 30 50 100 500 1000
1㹼6
RMA301A066 HEAT EXCH ASSY(AIR) 1 1 1 1 2
2 RLC129A003 BRACKET(L) 1
3㹼5
RMA321A115 PIPE ASSY 1
4 SSA323F091 UNION(SLD) 1 FOR GAS
5 SSA323F091A UNION(SLD) 1 FOR LIQ.
6 RMA129A050 PLATE,BAFFLE 1 1 1 1 2
7 RMA142A051 BOX,CONTROL 1
8 SSA551A163F SENSOR ASSY 1 1 1 2 4
INCL.SENSOR(ROOM TEMP.& HEAT EXCH.)
9 SSA561B723B BLOCK,TERMINAL 1 1 1 2 2 T
10㹼12
RMA505A005F PWB ASSY 1 2 2 4 8
11 SSA555B058AD VARISTOR 1 1 1 1 2 Z
12 SSA564A132 FUSE(CURRENT) 1 1 1 2 4 F 3.15A
13 RMA503A001 DISPLAY ASSY 1 1 1 2 3
14 RLC505A003 PWB ASSY(DISPLAY) 1 2 2 4 8
15 RMA142A052 LID,CONTROL 1
16 RLC129A010 COVER,BEND 1
17 RKJ941F001A SPRING,LEAF 1
18 RKX502A001B CONTROL ASSY,REMOTE 1 2 3 5 10
19 RKN032A002C HOLDER(REMO-CON) 1 1 1 1 2
20 RMA008A013M PARTS,STANDARD 1 FOR SRK05CRP-S
20 RMA008A013P PARTS,STANDARD 1 FOR SRK05CRP-S3
21 RMA012A080 MANUAL,INSTRUCTION 1 FOR SRK05CRP-S
21 RMA012A091 MANUAL,INSTRUCTION 1 FOR SRK05CRP-S3
(22) RMA011F025K LABEL,MODEL NAME 1 FOR SRK05CRP-S
(22) RMA011F025L LABEL,MODEL NAME 1 FOR SRK05CRP-S3
NoteNo. Part No. Part Name
RE.Q
Recommendable Purchased Q'ty
