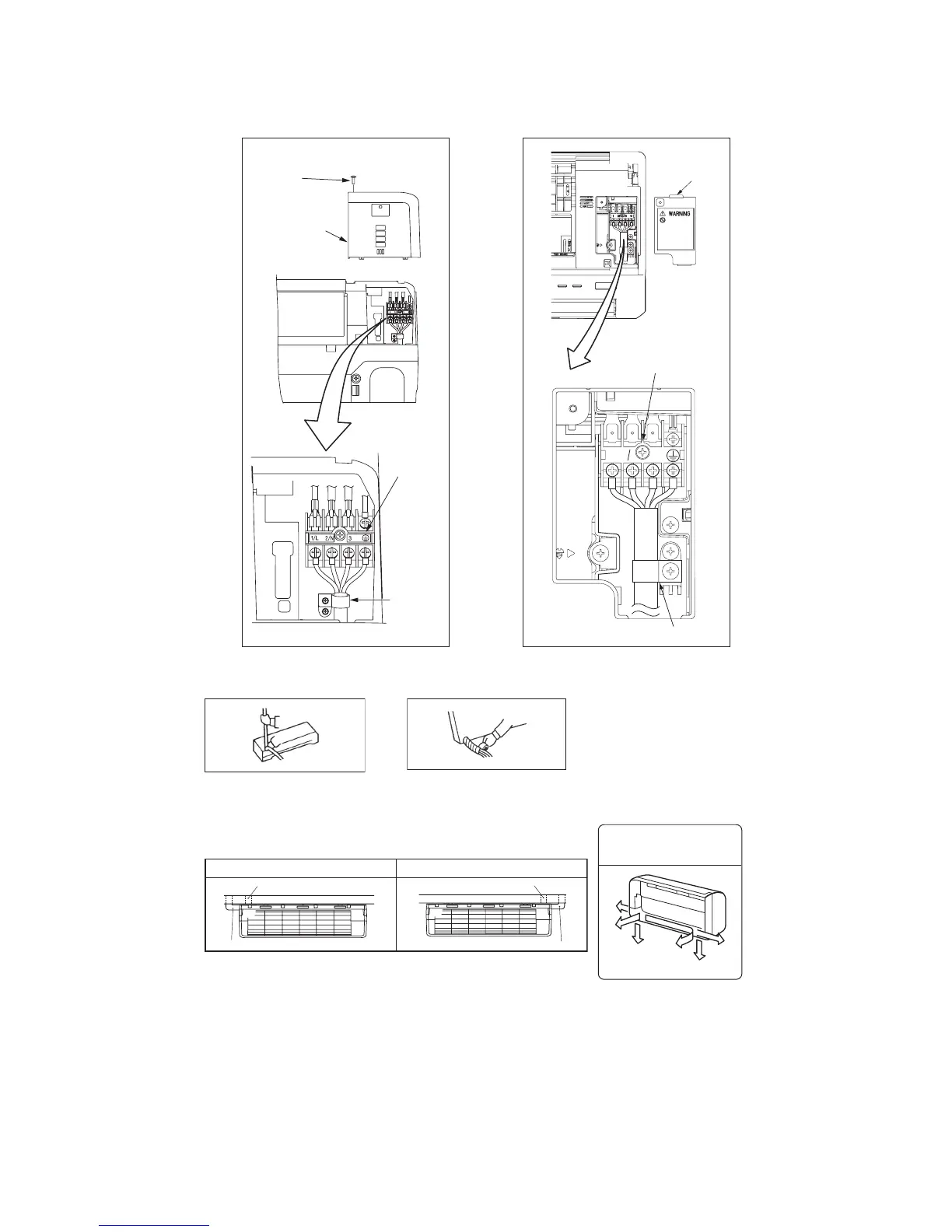

– 33 –
Left Side Piping Right Side Piping
Pipe
Drain hose
Shaping the pipe Taping of the exterior
Hold the bottom of the pipe and change its
direction before stretching it and shaping it.
Tape only the portion that runs through the wall.
Always tape the crossover wires with the pipe.
Cautions when piping from the left and the rear center of the unit
[ Top View ]
Right rear piping
Left rear piping
Left side piping
Right side piping
Left downward
Right
Rear
Downward
Left rear
Left
Piping is possible in the rear, left,
left rear, left downward, right or
downward direction.
Terminal block
1 3
2 N
Lid
Wirin
To Next Page
