Mitsubishi SRK50A

1-34
Models SRK501HENF-L, 561HENF-L
Heat exchanger
Strainer
Service valve (Liquid)
Flare connecting
Service valve (Gas)
High pressure switch(63H)
(for fan motor control)
Room
temperature
thermistor
Piping (Gas)
Ø12.7
Piping (Liquid)
Ø6.35
Flare connecting
Check
joint
4way valve
Suction
Muffler
Capillary tube
Deicer
thermostat
Heat exchanger
Compressor
Accumulator
Discharge
Heat
exchanger
thermistor

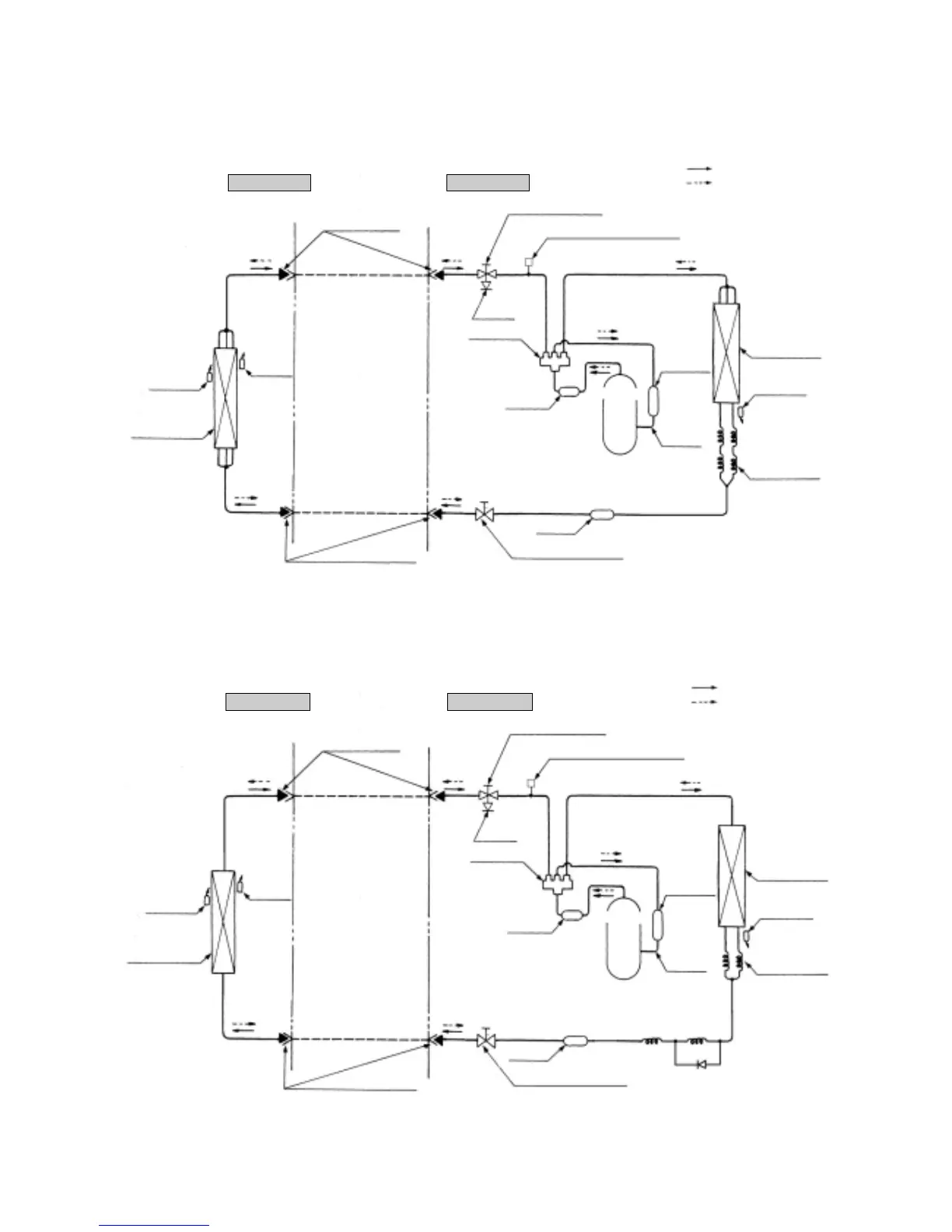

Cooling cycle
Heating cycle
Indoor unit Outdoor unit
Models SRK50HA, 56HA
Heat exchanger
Strainer
Service valve (Liquid)
Flare connecting
Service valve (Gas)
High pressure switch(63H)
(for fan motor control)
Room
temperature
thermistor
Piping (Gas)
Ø12.7
Piping (Liquid)
Ø6.35
Flare connecting
Check
joint
4way valve
Suction
Muffler
Capillary tube
Deicer
thermostat
Heat exchanger
Compressor
Accumulator
Discharge
Heat
exchanger
thermistor
Cooling cycle
Heating cycle
Indoor unit Outdoor unit
