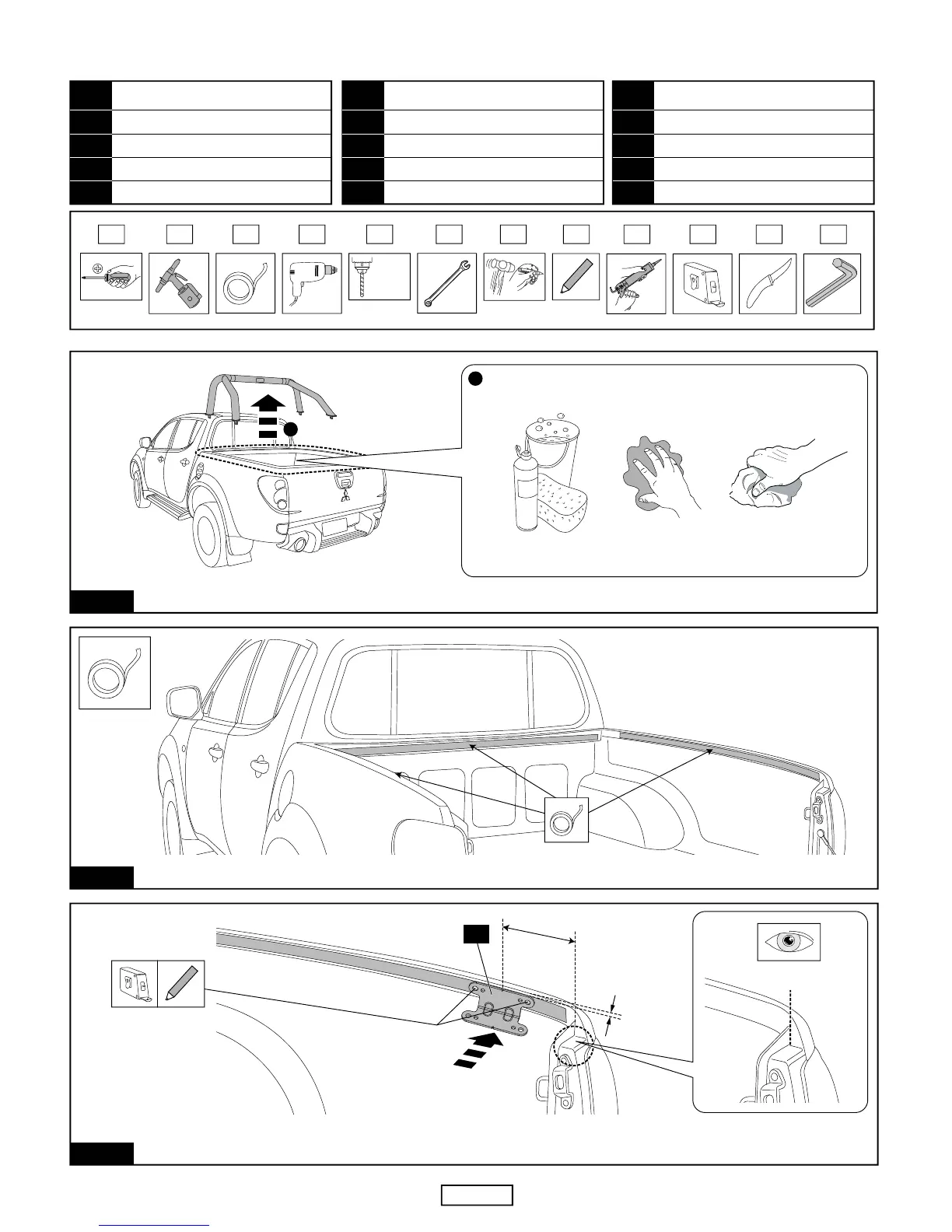

MITSUBISHI TRITON 3 PIECE TONNEAU COVER
ISSUE05
FIG. 3
FIG. 2
APPLY MASKING TAPE TO THE INNER BEDRAIL AS SHOWN.
FIG. 1
REMOVE SPORTS BAR AND RETAIN ALL HARDWARE. THOROUGHLY CLEAN AND DRY THE INSTALLATION AREA.
TC0169e
29/10/10Page 2 of 13
1
2
MEASURE AND MARK A LINE ON THE SIDE RAIL 108MM FROM THE REAR OF THE SIDE RAIL AS SHOWN. POSITION “FACE B ”
OF LOCK STRIKER BRACKET TO SIDE OF SIDE RAIL 18MM DOWN FROM TOP OF SIDE RAIL. ALIGN NOTCH TO PREVIOUSLY
MARKED CENTRELINE. MARK THE POSITION OF THE TWO (2) LARGER HOLES AS SHOWN. REPEAT FOR THE OTHER SIDE.
108mm
MEASURE FROM REAR
OF FLANGE
18mm
A
B
4
RECOMMENDED TOOLS LIST
TOOL NAME
Caulking Gun & Silicon
Tape Measure
Knife
Allen Key
9
10
11
12
NO.TOOL NAME
Phillips Head Screwdriver
Rivet Gun
Masking Tape
Drill
1
2
3
4
NO. TOOL NAME
Ø5mm & Ø6mm Drill Bit
Spanners & Sockets
Hammer & Centre Punch
Pencil
5
6
7
8
NO.
1 2 3 4 5 6 7 8 9 10
Ø5mm
Ø6mm
11 12
To Next Page
