3) Disconnect the high voltage circuit by following the flowchart below. Depending on the vehicle conditions, the
high voltage circuit may not be disconnected, so wear insulated Personal Protective Equipment (PPE) and
carefully carry out the procedures.

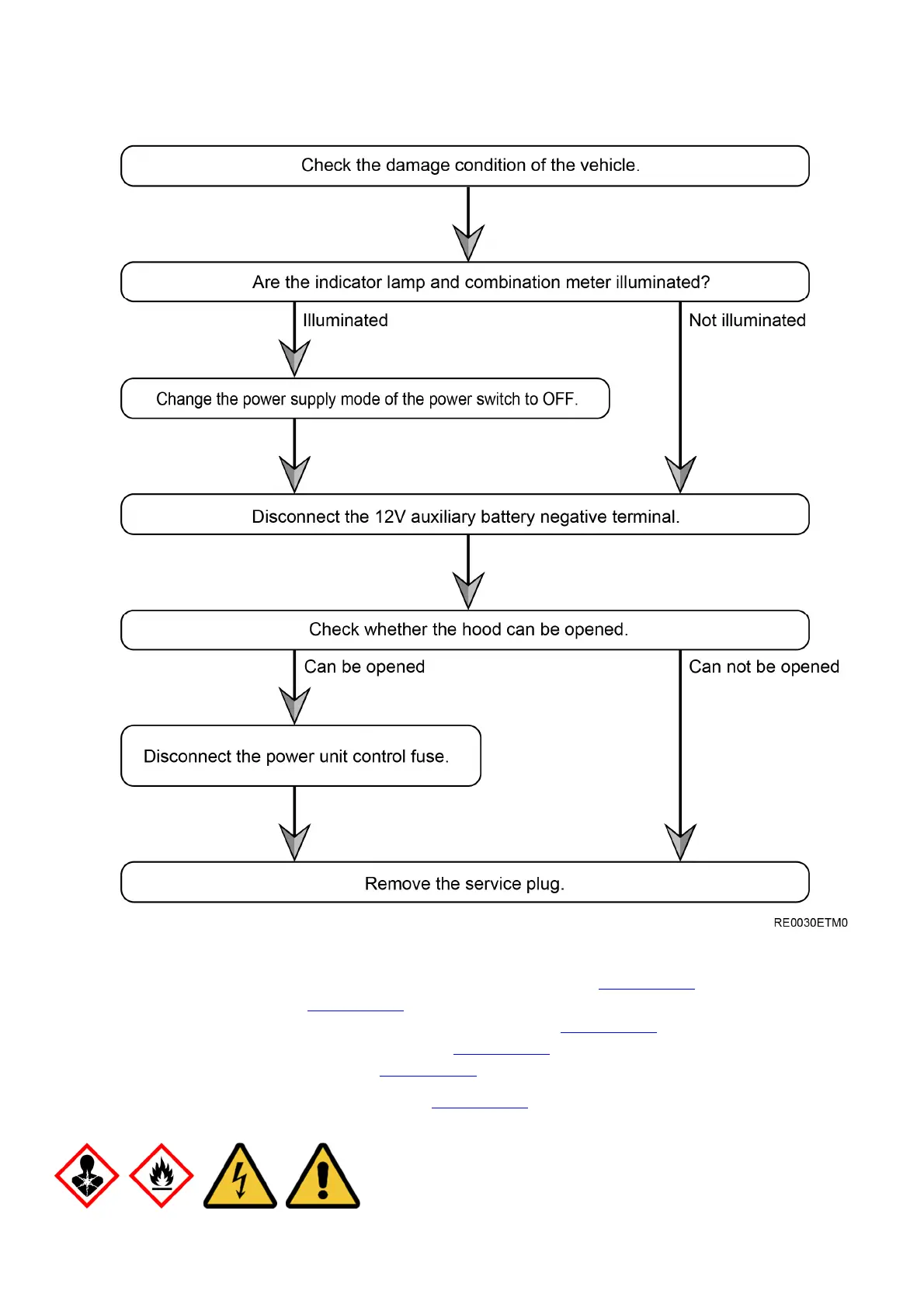

High voltage circuit disconnection procedures
How to change the power supply mode of the power switch to OFF (Refer to 2-1.)
How to open the tailgate (Refer to 3-4.)
How to disconnect the 12V auxiliary battery negative terminal (Refer to 3-5.)
How to disconnect the power unit control fuse (Refer to 3-6.)
How to disconnect the service plug (Refer to 3-7.)
4) Perform “Discharge measures for drive battery”. (Refer to 9-3.)
