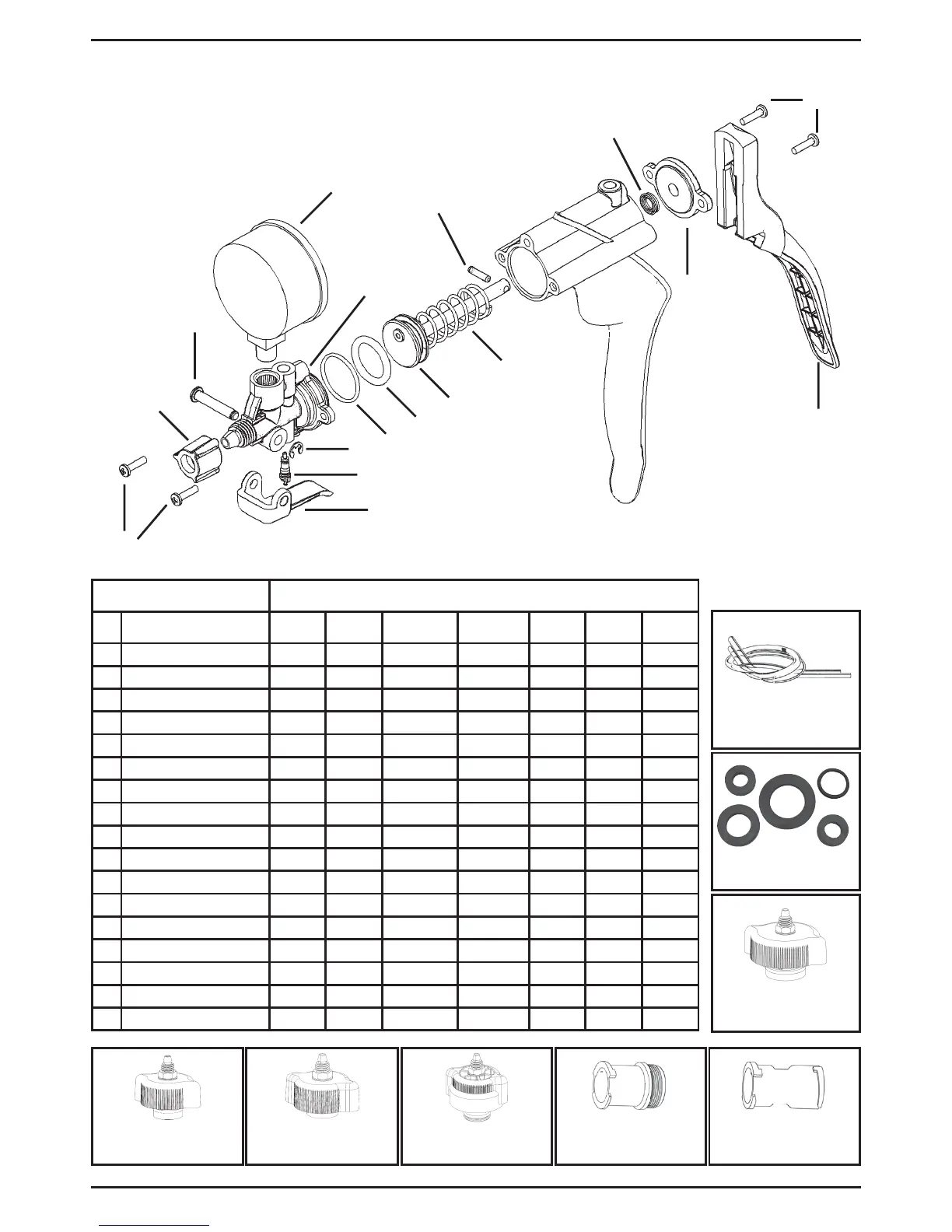

Mityvac MV4560 - Service Parts & Accessories

Form 801625 Page Number - 3
MVA350 –
Large Bayonet Adapter
MVA353 –
GM/Ford Adapter
MVA352 – Small Bayonet
Adapter, Shallow
MVA351 – Small Bayonet
Adapter, Deep
SERVICE KITS
Description 824551 801859 MVM8905 MVA6186 824552 824493 801862
1 Handle 1
2 Back Cap 1
3 Assembly Screws 4
4 Piston Rod Seal 1
5 Cross Pin 1
6 Piston Spring 1
7 Piston 1
8 Piston Seal 1
9 O-ring 1
10 Manifold 1
11 Schrader Valve 1 1
12 Compression Nut 1 2
13 Lever 1
14 E-clip 1
15 Lever Pin 1
16 Gauge 1
Schrader Valve Tool 1 1
MVA410 –
US Cap Adapter
MVA411 –
Asian Cap Adapter
MVM8906 –
Test Adapters Seal Kit
822391 –
Tubing (2 pieces)
Service Parts & Accessories
5
16
3
15
14
12
13
11
10
9
8
7
6
3
1
2
4
