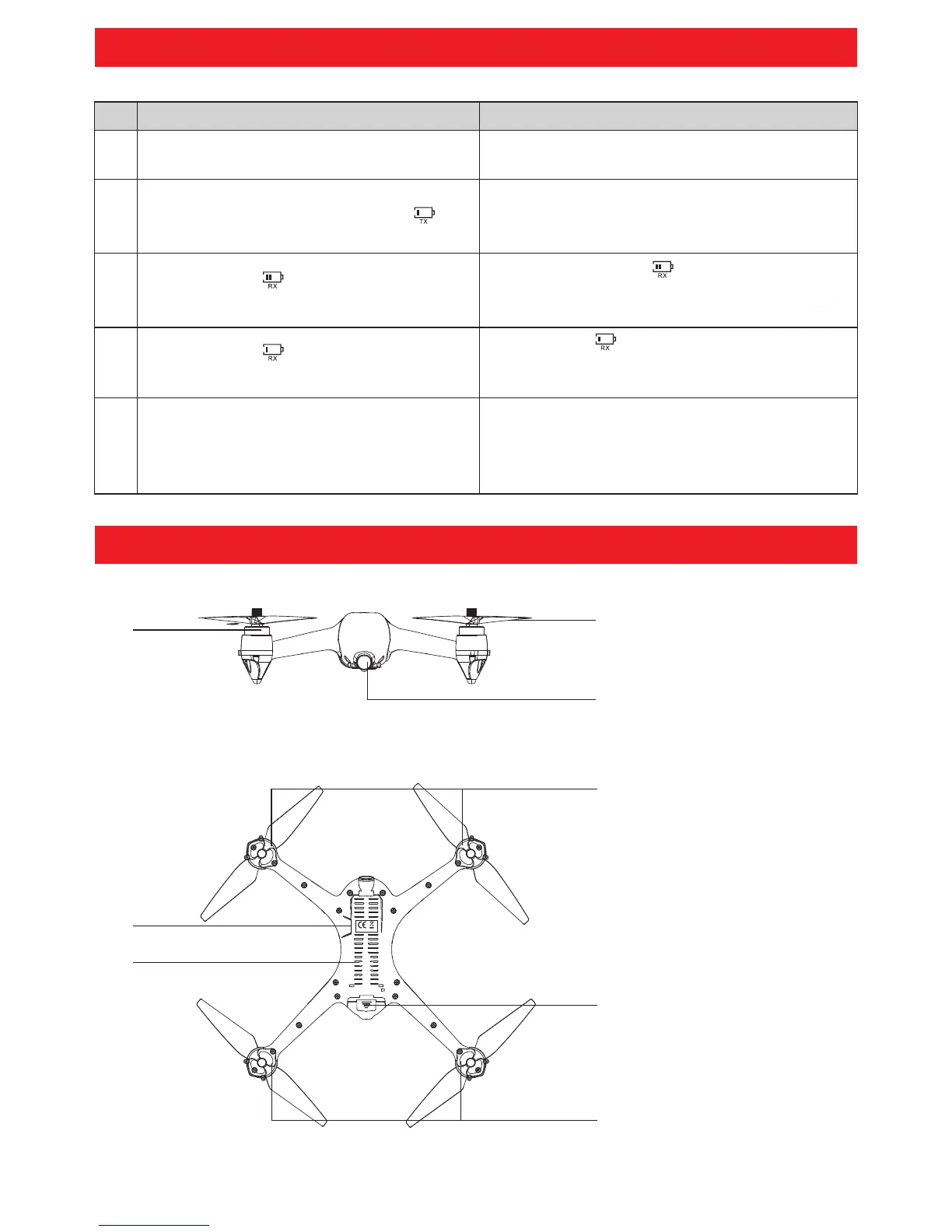

Remote Controller Status Indicator
NO.
1
2
3
4
5
Remote Controller Status
Indicator lights flash quickly.
Signal legend on LCD display is less than
two grids or no displaying, with steady beep...
beep...beep sound.
The remote controller is under signal connection
status.
The remote controller is in low voltage status.
1.The distance between aircraft and remote
controller is so long that the signal is weak.
2.The battery is removed nearly after the aircraft
connects to the remote controller.
Operation
Indicator lights flash slowly with steady beep..
beep sound and the battery legend “ ”on
LCD display flashing.
Battery legend “ ” on LCD display is as
shown, with steady beep..beep...beep sound.
Battery is running out “ ” ; the aircraft will return
when the altitude is over 100m or the distance is
over 300m.
Battery legend “ ” on LCD display is as
shown, with steady long beep sound.
Battery is low “ ” ; the aircraft will return when
the altitude is over 15m or the distance is over
15m, or land immediately.
[2]
[3]
[6]
[8]
[7]
MADE INCHINA
Major Parts Of the Aircraft
[1]
[1]
[2]
Brushless motor
[3]
Propeller
Camera
[4]
[5]
[4]
Battery compartment
TF Card Slot
[5]
[6]
[7]
[8]
Front indicator light
Rear indicator light
Battery
