MKS DLC32 - Motor Drive Interfaces; Laser and CNC Interfaces

4

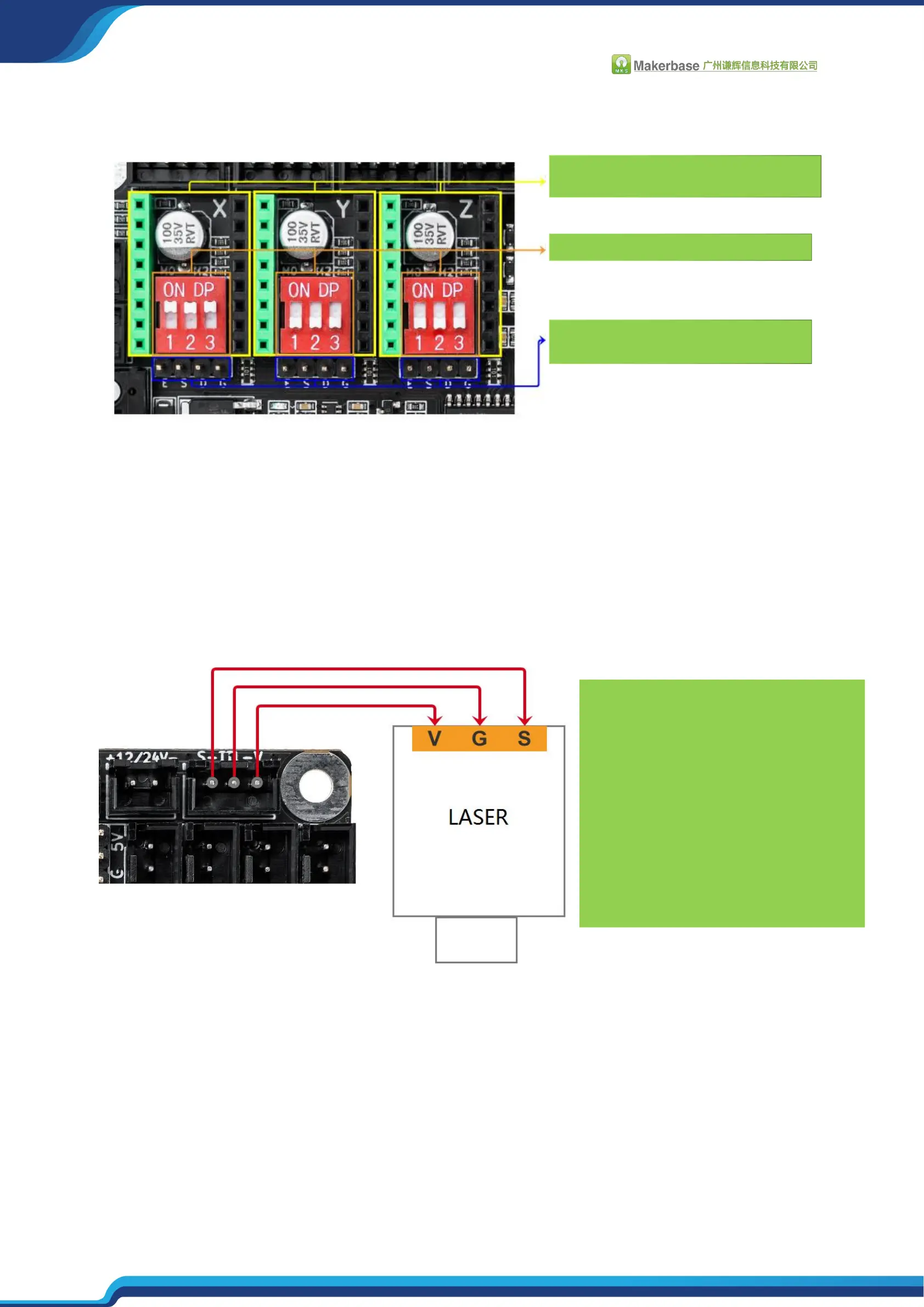

MOTOR PART
LASER/CNC PART
LASER-3PIN-TTL
Pluggable drive interface.
（ Such as A4988, TMC2209, etc. ）
DIP switch (adjusting drive microstepping)
External drive interface (Expand high current drive)
EN-STEP(PUL)-DIR=GND
V:LASER power supply (Vlaser=Vin, 12-24V)
G:GND
S:TTL ( Default 1KHZ, Range 1-10KHZ, 0-5V)
