3. ASSEMBLY STEPS

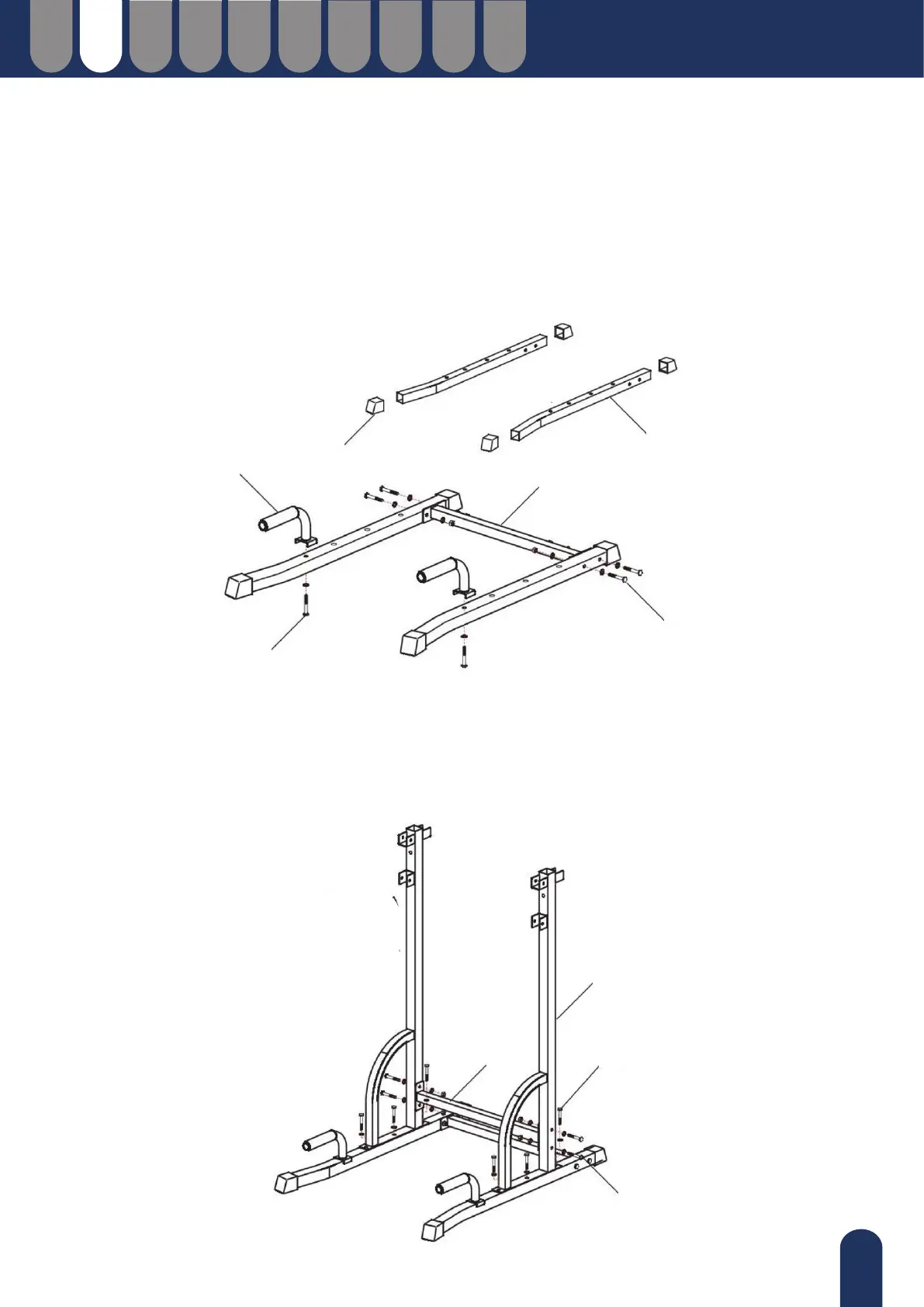

Step 1.
Fit the two pieces of the foot tube (A) with the tube cover (L). Connect both foot tubes with the connecting
tube (C) and with 4 sets of screws of the combination (h) listed in the table - Screw (M8+55) + Washer (M8)
+ Nut (M8). Fit both L-handles (D) with the 2 sets of screws of the combination (k) listed in the table - Screw
(M10+55) + Washer (M10) into the foot tubes (A).
Step 2.
Connect the main tubes (B) to the foot tubes (A) with 6 sets of combination screws (j) - Screw (M10*45)
+ Washer (M10). Then connect the main tube (B) and the connecting tube (C) with 4 sets of combination
screws (h) - Screw (M8*55) + Washer (M8) + Nut (M8).
L
D
A
h
C
k
C
B
j
h
