Pull-up station
MULTIFIT
ENES FR
IT DE
PT
NL
SWE
PL DK
12

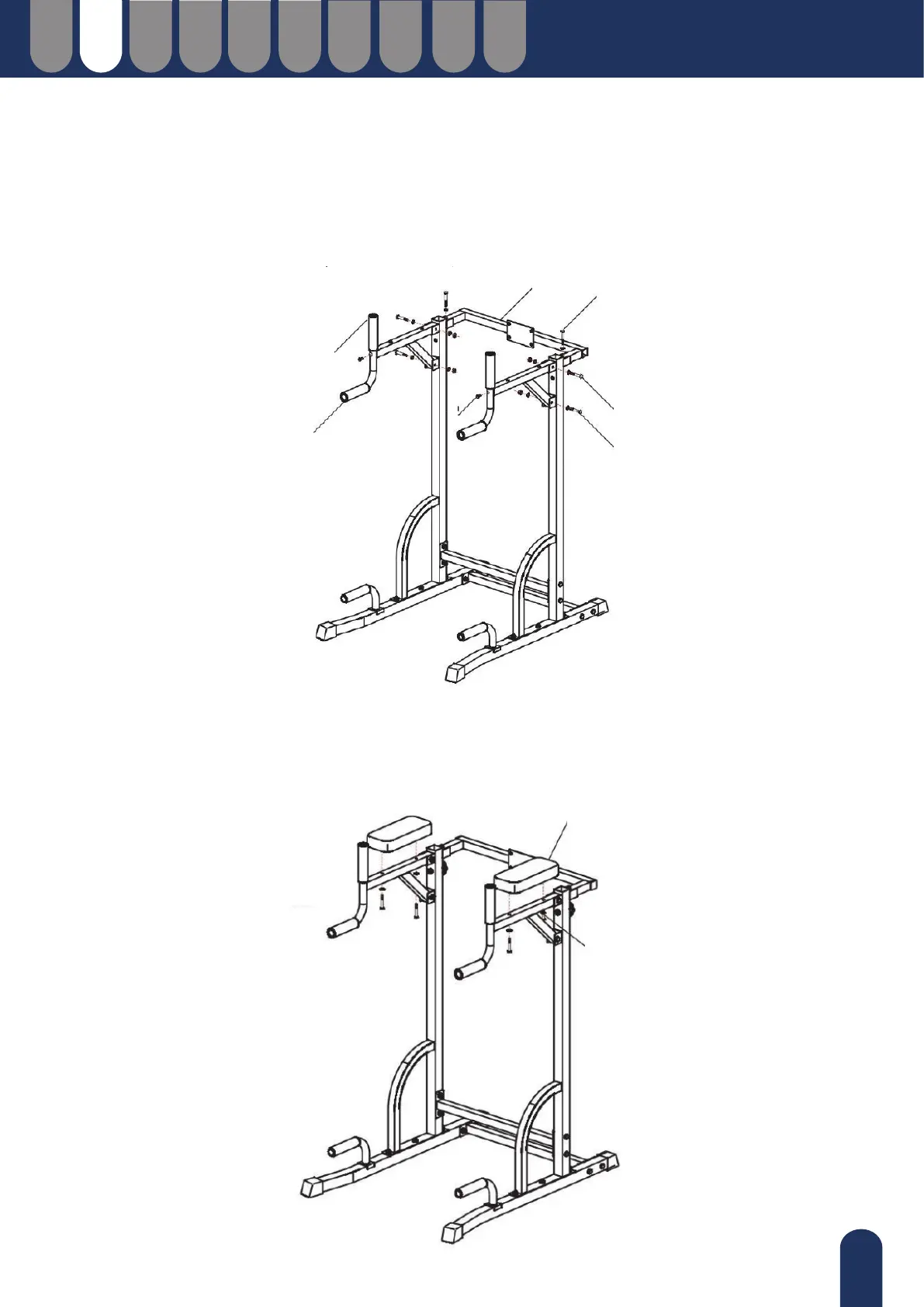

Step 3.
Connect the immersion parts (E) and the main tubes (B) with the 4 sets of screws of the combination (f) -
Screw (M8*45) + Washer (M8) + Nut (M8). Connect the handle tubes (I) and the immersion pieces (E) with
the screw (m) (M6*10) which is in the immersion piece (E). Finally, connect the rear tube (F) and the main
tube (B) with the 2 sets of screws of the combination (e) - Screw (M8*40) + Washer (M8).
Step 4.
Connect the arm cushion (K) to the immersion piece (E) with the 4 sets of screws of the combination (g) -
Screw (M8*45) + Washer (M8).
E
I
F
e
f
f
K
g
m
