15
Extender
Switch
Router’s
front
power
switch
(Inside RV)
(Rooftop)
(Back Side of
RV Ceiling)

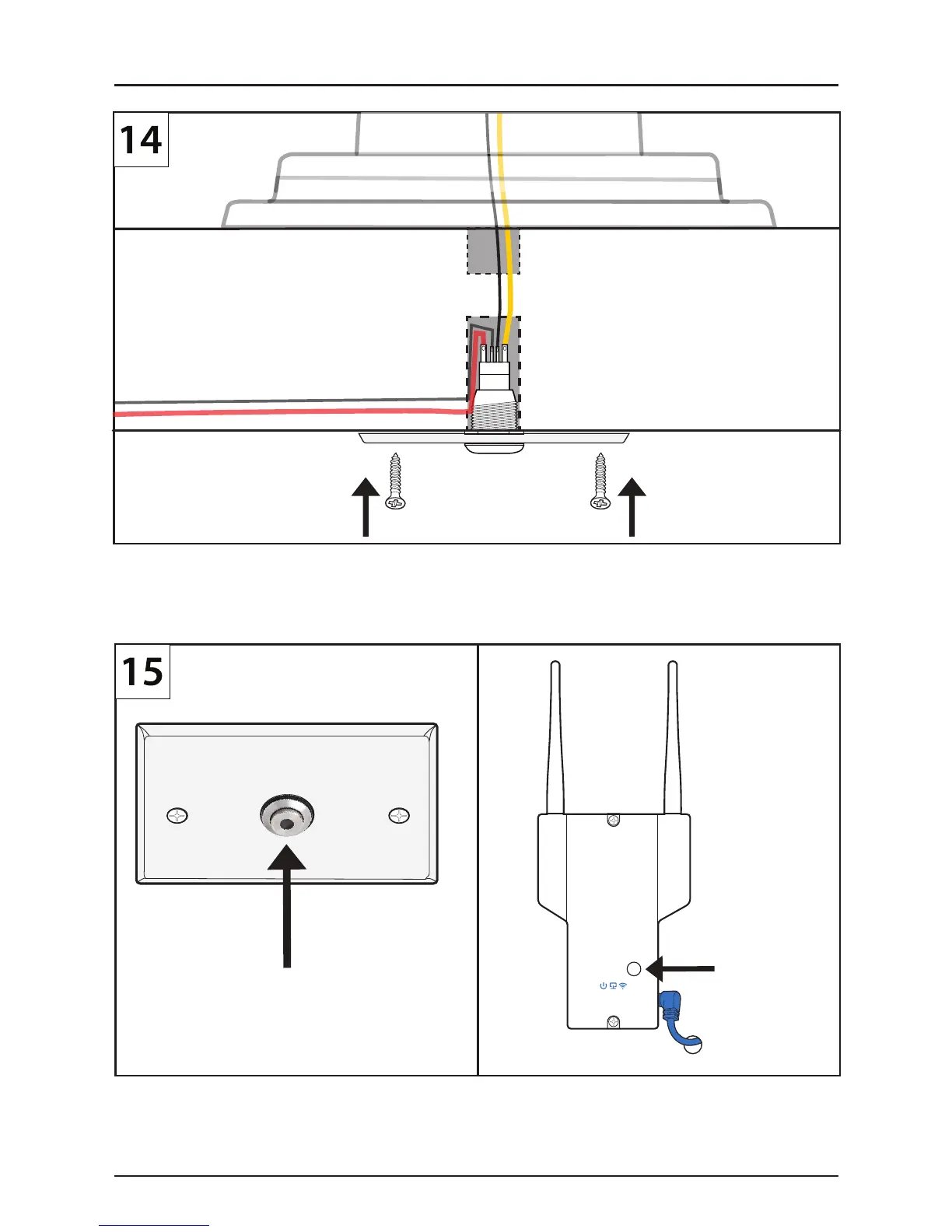

1) Reconnect RV power source for MV2458 Router Control Unit and MV2400 Extender.
2) Turn on the power to the MV2400 Extender using the Extender Switch.
3) Turn on the power to the MV2458 Router Control Unit using the Router’s front power switch.
Attach the Ceiling Plate to the ceiling with the Ceiling Plate Screws.
