MobileVision MV100 - Extender Wireless Final Assembly; Wire Connections and Housing Top

14
MV2400 Extender Wireless Installation - Cont.

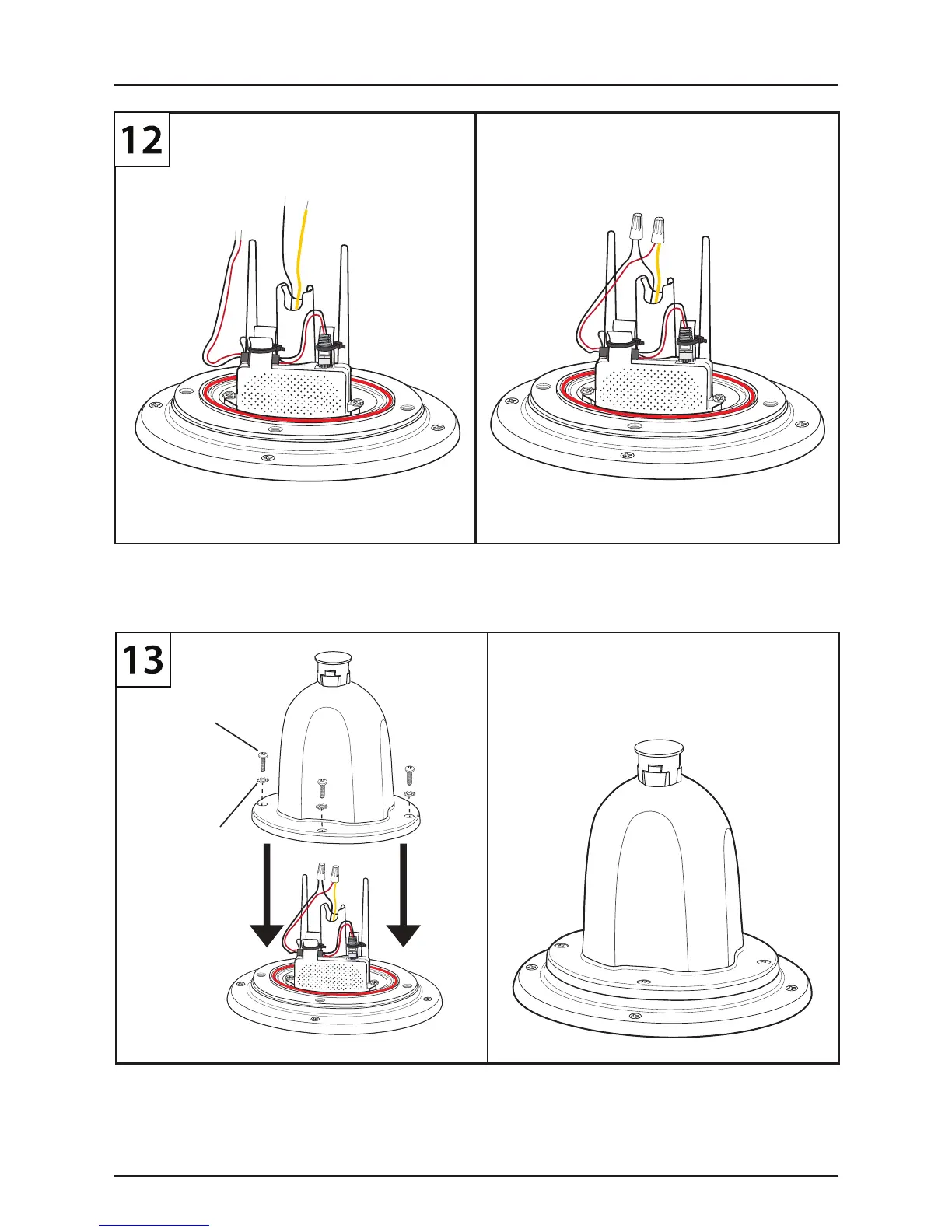

1) Attach yellow 12V(+) wire from Extender Switch to red wire 12V(+) of MV2400 using a Connector.
2) Attach black 12V(-) wire from Extender Switch to black 12V(-) wire of MV2400 using a Connector.
Black to Black
Yellow to Red
1) Place Extender Housing Top onto Extender Housing Bottom Mount. Make sure wires fit securely inside, are
not pinched, and do not interfere with MV2400 antennas.
2) Secure the Extender Housing Top to the Extender Housing Bottom Mount using 4 Machine Screws
(#10-24 UNC Threaded) and 4 Lock Washers provided.
WARNING - Make sure the O-ring
is in place & screws are tight.
Machine
Screws
Lock
Washers
#10-24 UNC
Threaded
