No Cable Pin Definition Remarks

4 Alarm I/O

(5-pin Ter-

minal

Block)

1 Alarm In 2+ Alarm con-

nection

Do NOT con-

nect external

power supply

to the alarm

I/O connector

of the IP cam-

era!

2 Alarm In -

3 Alarm In 1+

4 Alarm Out -

5 Alarm Out +

5 Power

(DC 12V /

AC 24V)

(2-pin Ter-

minal

Block)

1 DC 12V − AC 24V 1 Power con-

nection

2 DC 12V + AC 24V 2

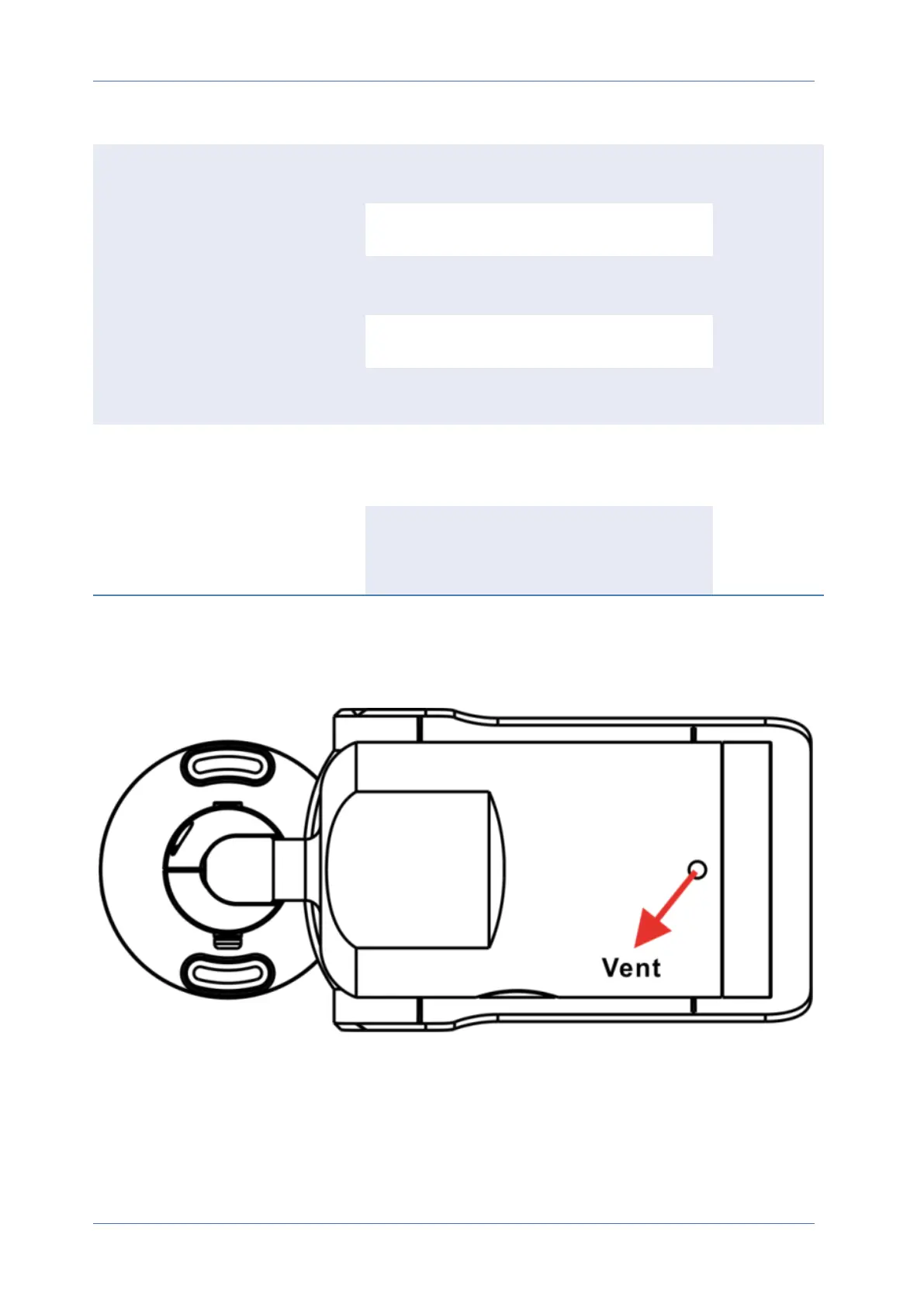

Desiccants Removal

Before installation, remove the desiccants on the vent at the bottom of the camera body. The loc-

ation of the desiccants is shown below.

Quick Installation 5MP Vandal Bullet Analytics Camera

3 / 9
