Quick Installation 5MP Vandal Bullet Analytics Camera
backing up the power supply of this product.
n
This equipment is to be connected only to PoE networks without routing to other networks.
NOTE! Observe the MOBOTIX MOVE Installation Hints document to ensure optimum performance
of the camera features.
CAUTION! To prevent damage when adjusting the camera's field of view, loosen all corresponding
screws. Once finished, tighten these screws again.
NOTE! To ensure that the unit is not affected by vibration, twisting, etc. after adjusting the camera,
properly tighten all mounting screws.

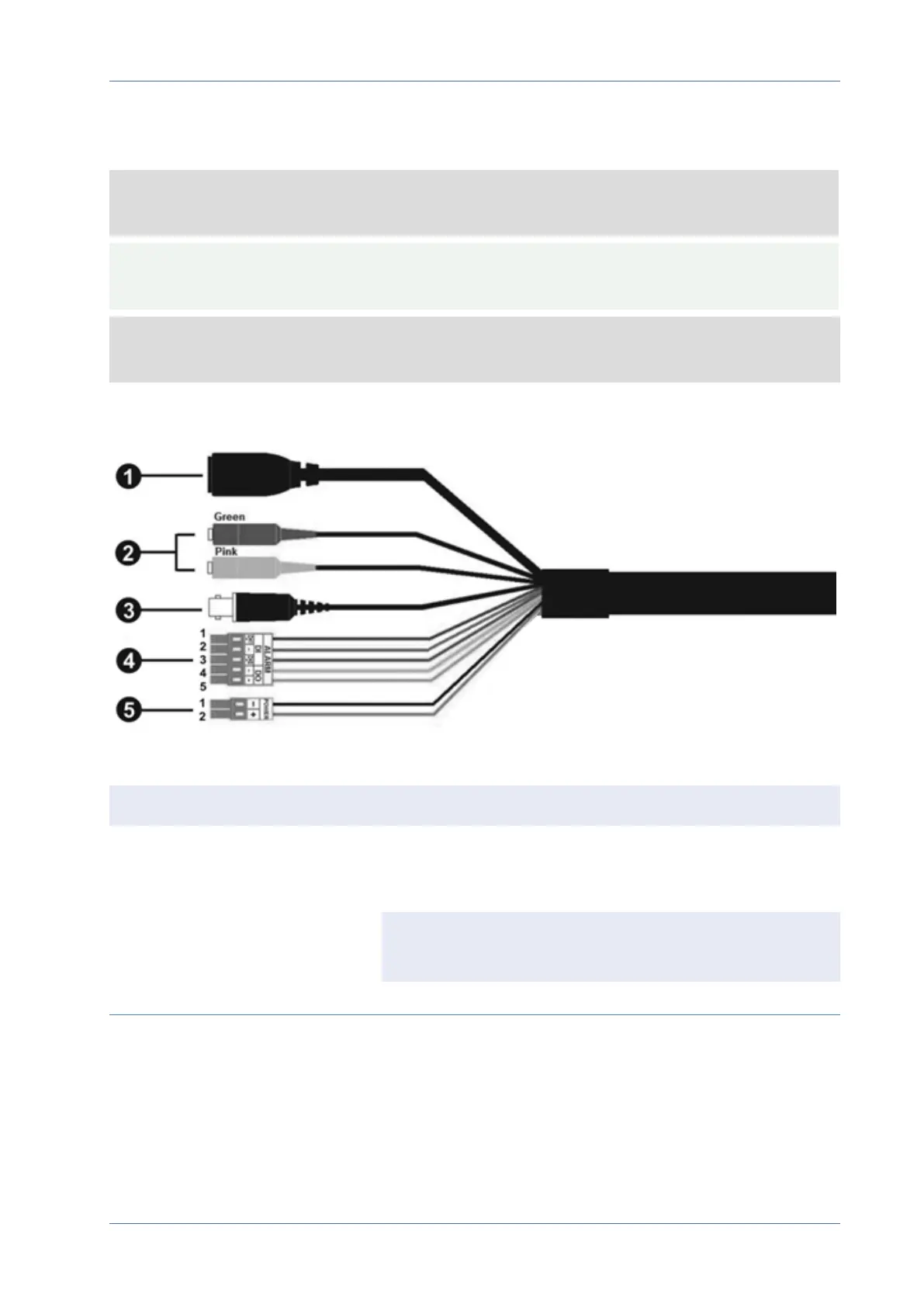

All-in-One Cable
No Cable Pin Definition Remarks
1 RJ-45 – For network and PoE connections
2 Audio I/O Green Audio Out / Mic Out
(Line Out)
Two-way
audio trans-
mission
Pink Audio In / Mic In
(Line In)
3 BNC – For analog video output
