Mocka Kitchen - Attaching Final Components; Step 23: Mount Hinges and Slide Panels; Step 24: Place Hooks and Panels

23
24

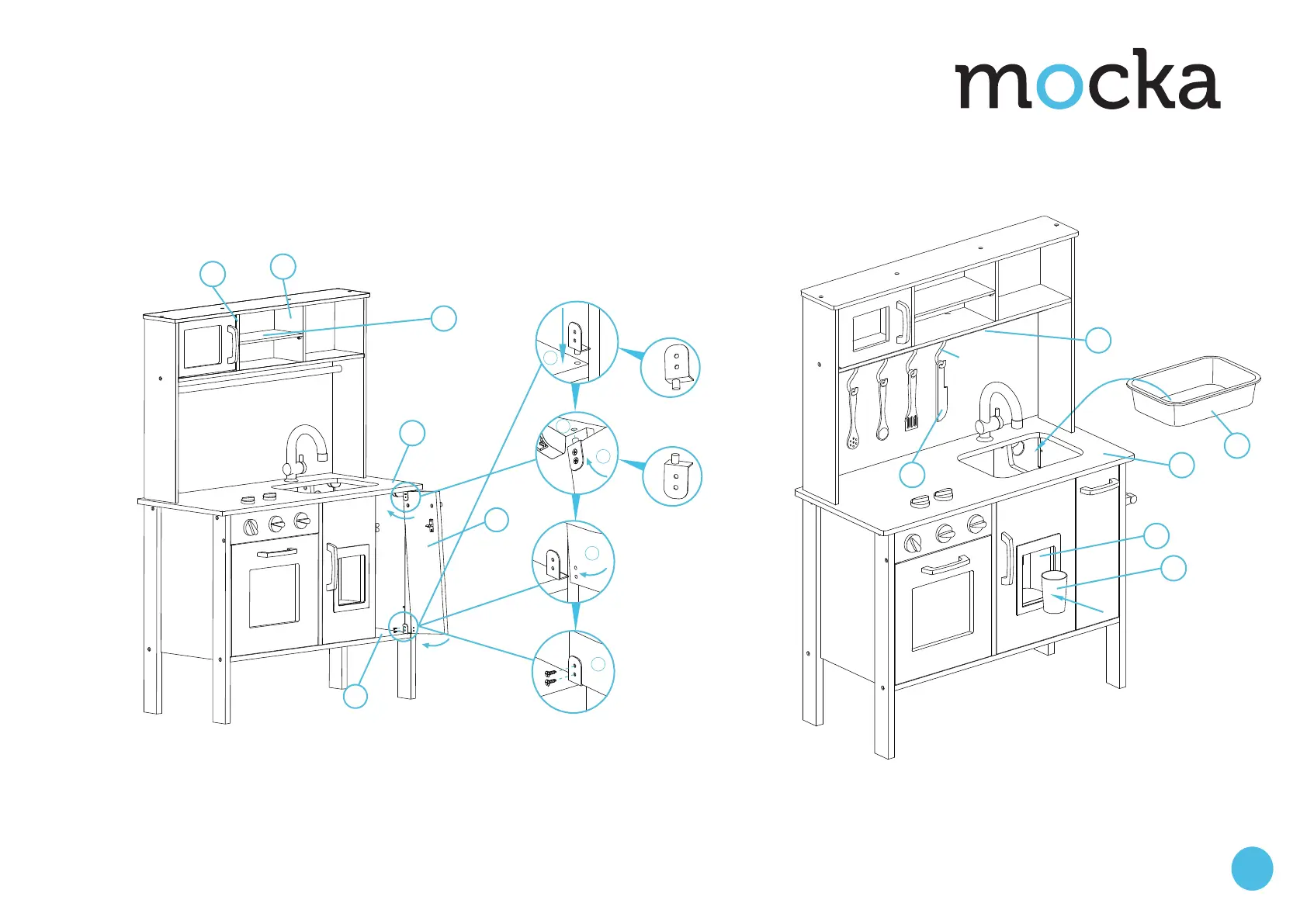

Place 1x hinge (E) into panel [9].
Insert hinge (F) into panel [13] and swing panel [4] down into hinge (E).
Attach hinge (E) to panel [4] with 2x screws (D).
Slide panel [21] onto shelf supports (K) on panels [20] and [22].
Tighten all screws with a screwdriver.
Place panel [29] into panel [13] and panel [30] into panel [31].
Place 4x hook (M) onto panel [18] and place 4x panel [33] onto 4x
hook (M).
E
F
9
13
F
E
4
4
4
E
E
9
4
13
D
D
21
20
22
4x M
29
30
13
31
18
33
21
22
Place 1x hinge (E) into panel [9].
Insert hinge (F) into panel [13] and swing panel [3] down into hinge (E).
Attach hinge (E) to panel [3] with 2x screws (D).
Tighten all screws with a screwdriver.
Attach 1x hinge (F) to panel [4] with 2x screws (D).
Attach 1x latch (H) to panel [4] with 2x screws (D).
Attach panel [25] to panel [4] with 2x screws (B).
Tighten all screws with a screwdriver.
