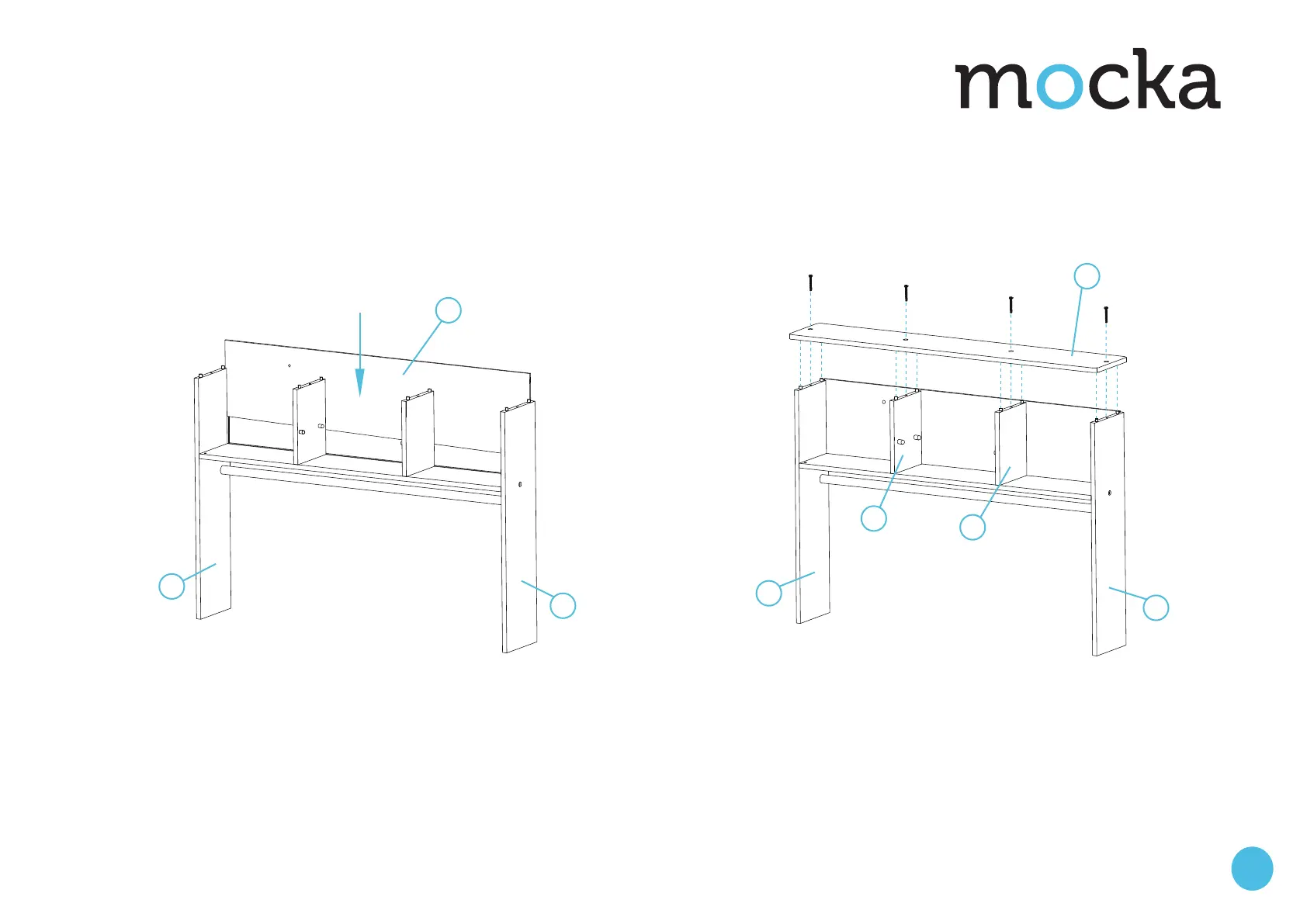

Attach panel [20] and [22] to panel [16] with 2x screws (A).
Attach panel [14] to panel [16] with 1x screw (A).
Tigthen all screws with a screwdriver.
Insert panel [18] into panel [15].
Attach panel [15] to panel [16] with 1x screw (A) and insert panel [18]
into panel [14].
Tighten screw with a screwdriver.
14
15
18
16
20 22
14
16
A
A
A
A
11
12
Insert panel [17] into the back of panels [14] and [15]. Attach panel [19] to panels [14], [15], [20] and [22] with 4x screw (A).
Tighten all screws with a screwdriver.
14
15
17
19
20
22
14
15
A
A
A
A
