Mod-U-Blast MBM Series - Parts Schematics

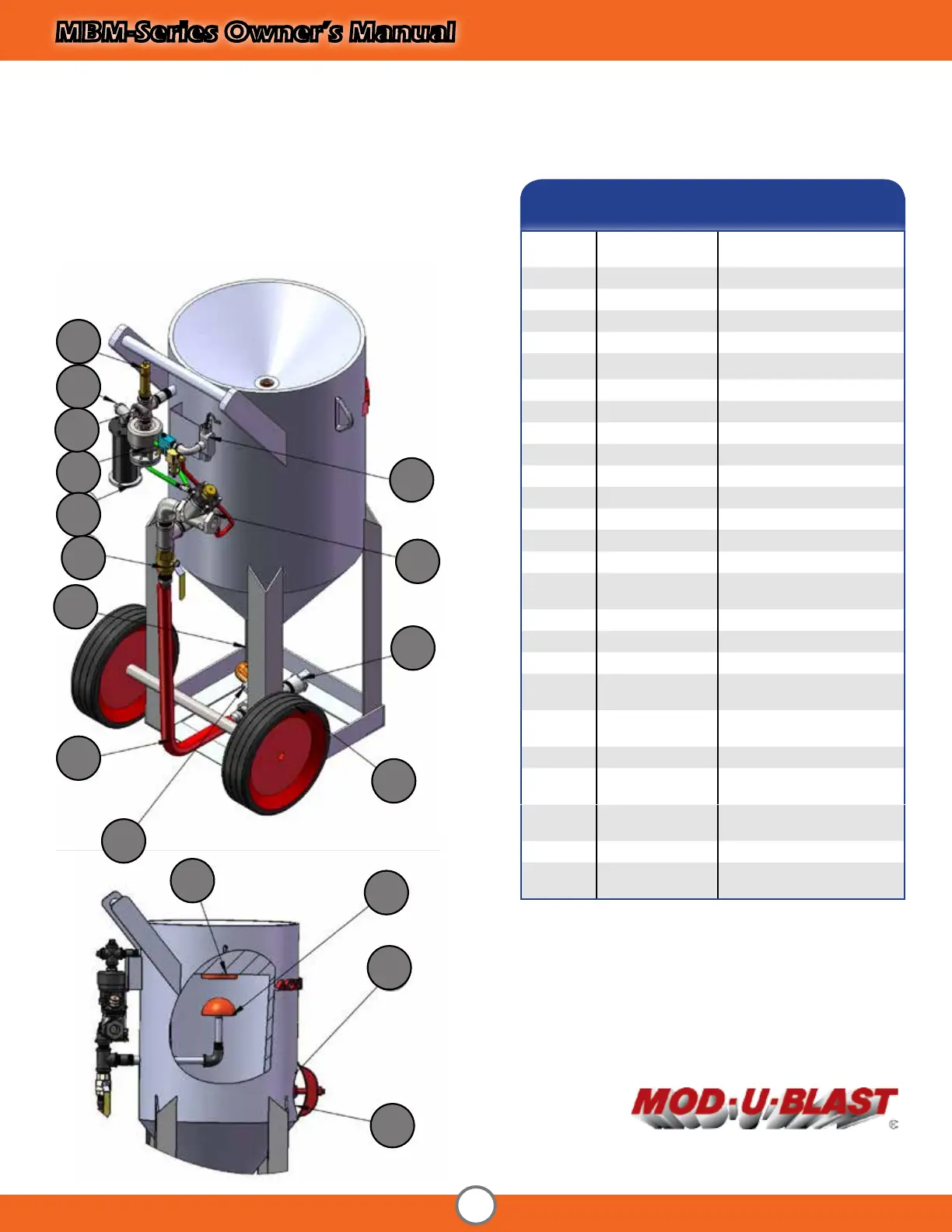

Pressure Vessel Parts List
MBM-Series Owner’s Manual
16
Copyright© 2015 Mod-U-Blast®, All Rights Reserved
1 EE2125-107 1-1/4” M VALVE W/ URE-
THANE SLEEVE
2 125-AIR 1-1/4” AIR HOSE
3 290375 MUB DUMP VALVE
4 281250 AQUA VALVE 1-1/4”
5 51810-150 KINGSTON 118C x 1 x 150PI
6 290340 MUB SILENCER
7 65-825 1-1/4” BRASS BALL VALVE
8 PL07 3/4” PLUG
9 PL10 1” PLUG
10 60525 (ALUM) 1-1/2” NPT TANK COUPLER
60526 (BRASS) “
60526 (STEEL) “
60523 (ALUM) 1-1/2” NPT TANK COUPLER
60524 (BRASS) “
60624 (STEEL) “
60526L (BRASS) 1-1/2” POLYLINED TANK
COUPLER
60626L (STEEL)
11 24000-C ELECTRIC CONTROLS ASSY
24020 12 V ELECTRIC SOLENOID
12 290010-65 WHEEL FOR 6.5 & 10
BLAST MACHINE
290010-35 WHEEL FOR 3.5 BLAST
MACHINE
13 290187 AV 1-1/4” X 6” NIPPLE
14 EE2100-011 POP-UP GASKET / URE-
THANE
15 EE2100-010 POP-UP PLUNGER / URE-
THANE
16 22614 INSPECTION DOOR 6” X 8”
17 22617 INSPECTION DOOR GASKET
6” X 8”
ITEM # STOCK # DESCRIPTION
15
16
17
14
1
2
3
4
5
6
7
8
9
10
11
12
13
MBM - 1.5PRE-AV
MBM - 3.5PRE-AV
MBM - 6.5PRE-AV
MBM - 10PRE-AV
(Electric controls with M-Valve)
Parts Ordering
1-800-661-3842
