MODE S120WWR - Assembly View and Parts List

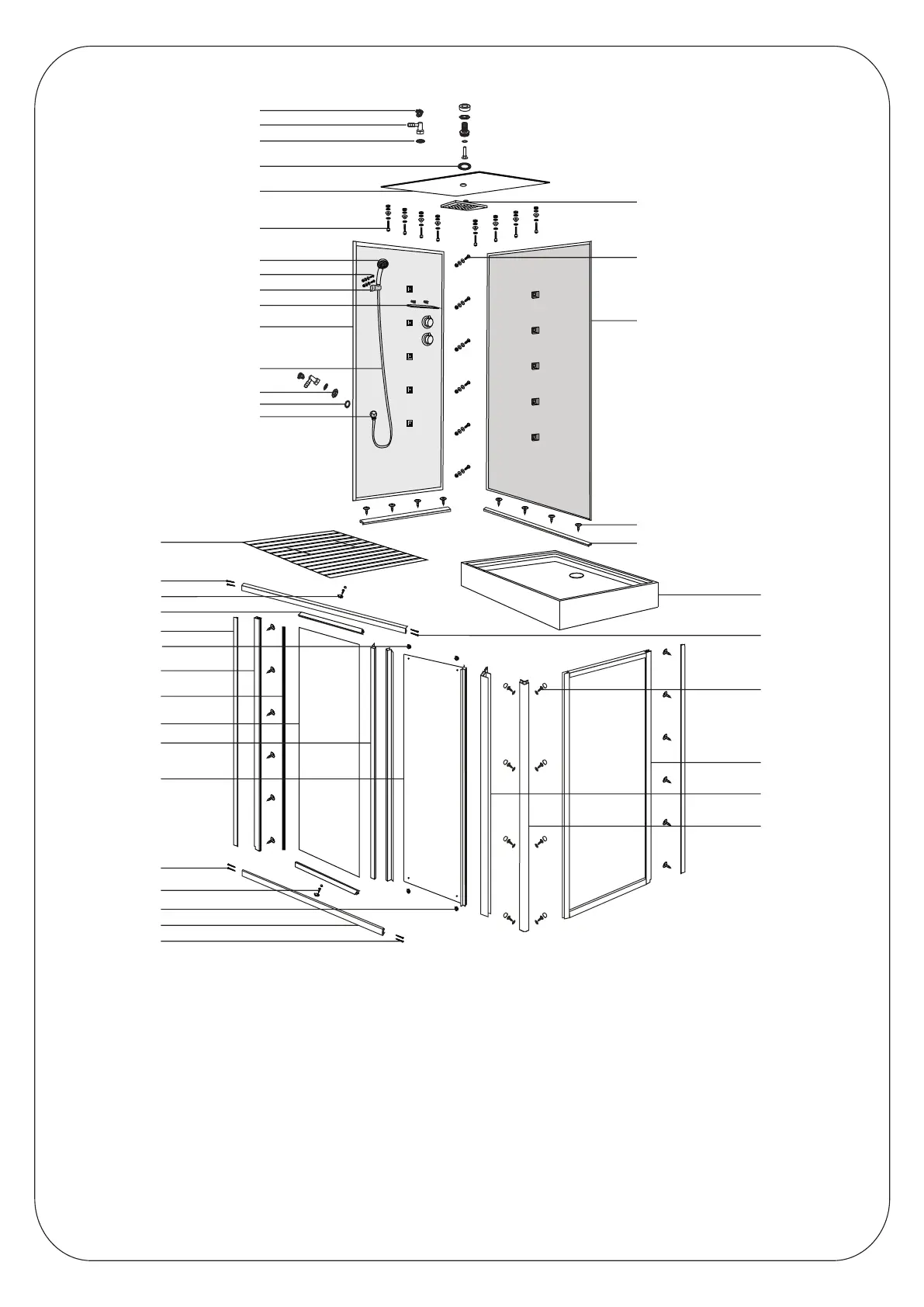

ASSEMBLY VIEW AND PARTS LIST
2
(1) 1xShower roof
A
A
A
A
A
A
C
B
C
B
E
C
PACK I.D
D
E
E
E
E
E
E
C
E
E
E
E
E
PACK I.D
E
E
E
E
E
E
E
PACK I.D
(2) 1xBack panel, left side
(3) 1xBack panel, right side
(4) 1xTray
(5) 1xFixed glass
(6) 1xSliding glass
(7) 2xSelf adhesive rubber seal
(8) 2xRail
(9) 2xDearation rubber seal
(10) 1xWall profile
(12) 2xRubber seal on the fixed
glass/sliding glass
(23) 2xBottom rollers and washers
(24) 10xM4x16 (2 spare)
(25) 8xM4x9 (2 spare)
(26) 2xM4x22
(29) 3xST4x12 (1 spare)
(11) 1xRubber seal between the
fixed glass
(14) 1xTop shower
(15) 1xHand shower
(16) 1xHolder
(17) 1xFlexible hose
(18) 1xInside hose connector
(19) 1xGlass shelf
(20) 2xGlass clamp and screw cap
(21) 2xRubber seal
(22) 2xTop rollers and washers
(30) 3xTube clips (1 spare)
(31) 2xElbow joint
(32) 2xWhite rubber seal
(33) 2xhexagon nut (1 spare)
(34) 1xSmall black rubber seal
(35) 1xBig black rubber seal
A
(13) 1xWood floor (optional)
E
E
(27) 22xST4x16 (2 spare)
(28) 5xST4x55 (1 spare)
E
E
A
B
B
(36) 5xST4x35 (1 spare)
(37) 10xST4x10 (2 spare)
(38) 1xFixed glass
(39) 1xVertical profile
(40) 1xCorner profile
13
18
17
16
26
15
2
24
1
4
7
27
19
3
25
14
30
32
33
34
35
31
28
20
21
9
10
11
5
12
6
8
22
4
29
23
36
38
39
37
40
28
36
