English 24

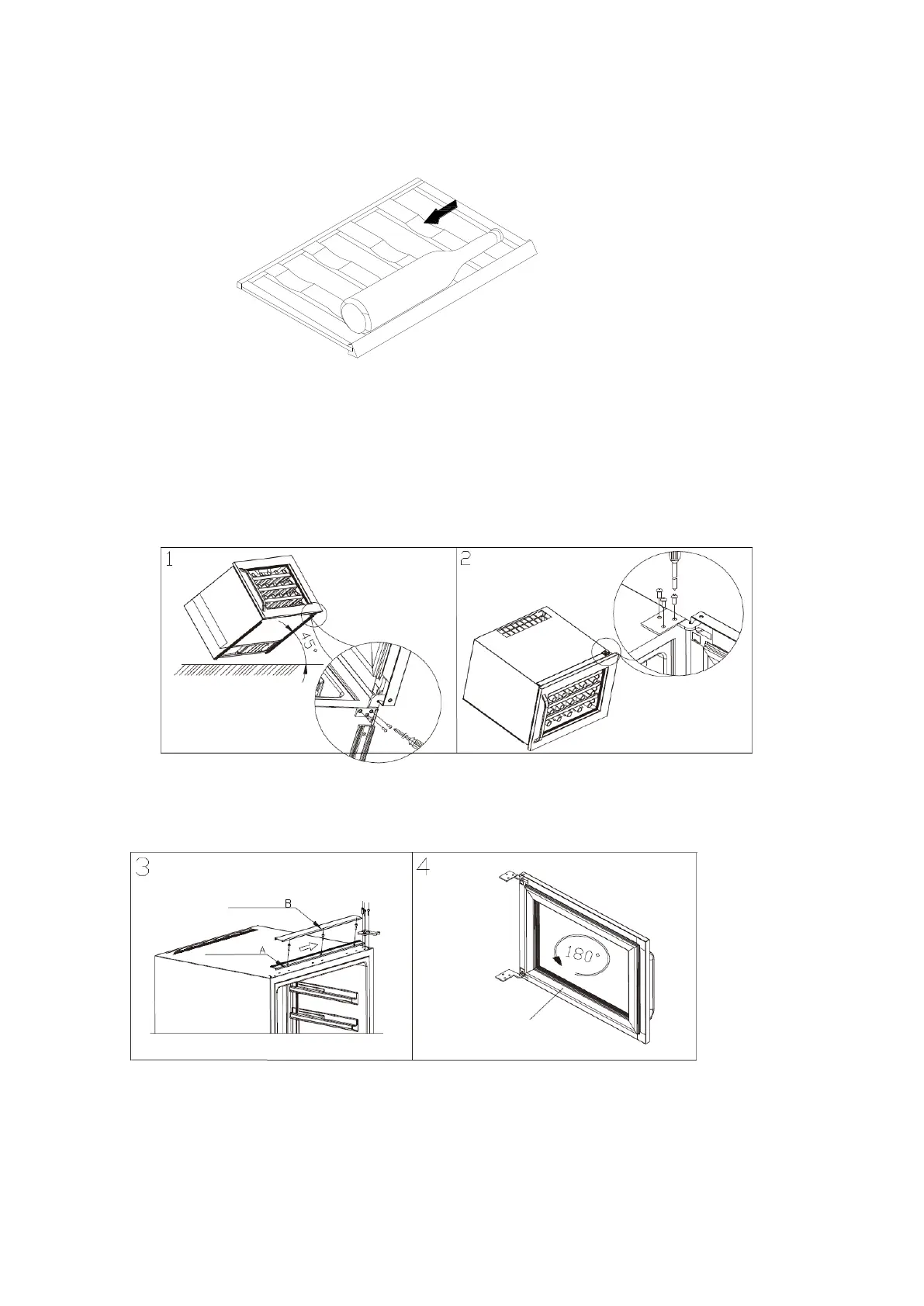

- Specialized WC 1022 WC1022 S and L, rack designed with a concave groove, a great little wine
bottles can also be stored in the transverse direction on the shelf.
Attention!
Do not store the bottle with the transverse direction in the interior floor, it makes the bottle may fall out
when the door is opened and can cause damage to the package contents.
Change the direction to open the door of the unit
Special for Model WC 1022 S & WC 1022 L
This unit has a door that can be exchanged for the open position of the unit.
1. Tilt the unit up to 45 degrees, remove the hinge screws are there right under with
a screwdriver (Figure 1).
2. Remove the limted block “B” (figure 3 letter B) and remove the screws on limited block “A”
(figure 3 letter A) screw on the right side, the door is able to be separated, be careful in holding
the door to prevent damage and rotate toward the door to 180 degrees(see Figure 4 and
Figure 5).
