Modena WC Series - Page 27

English 25

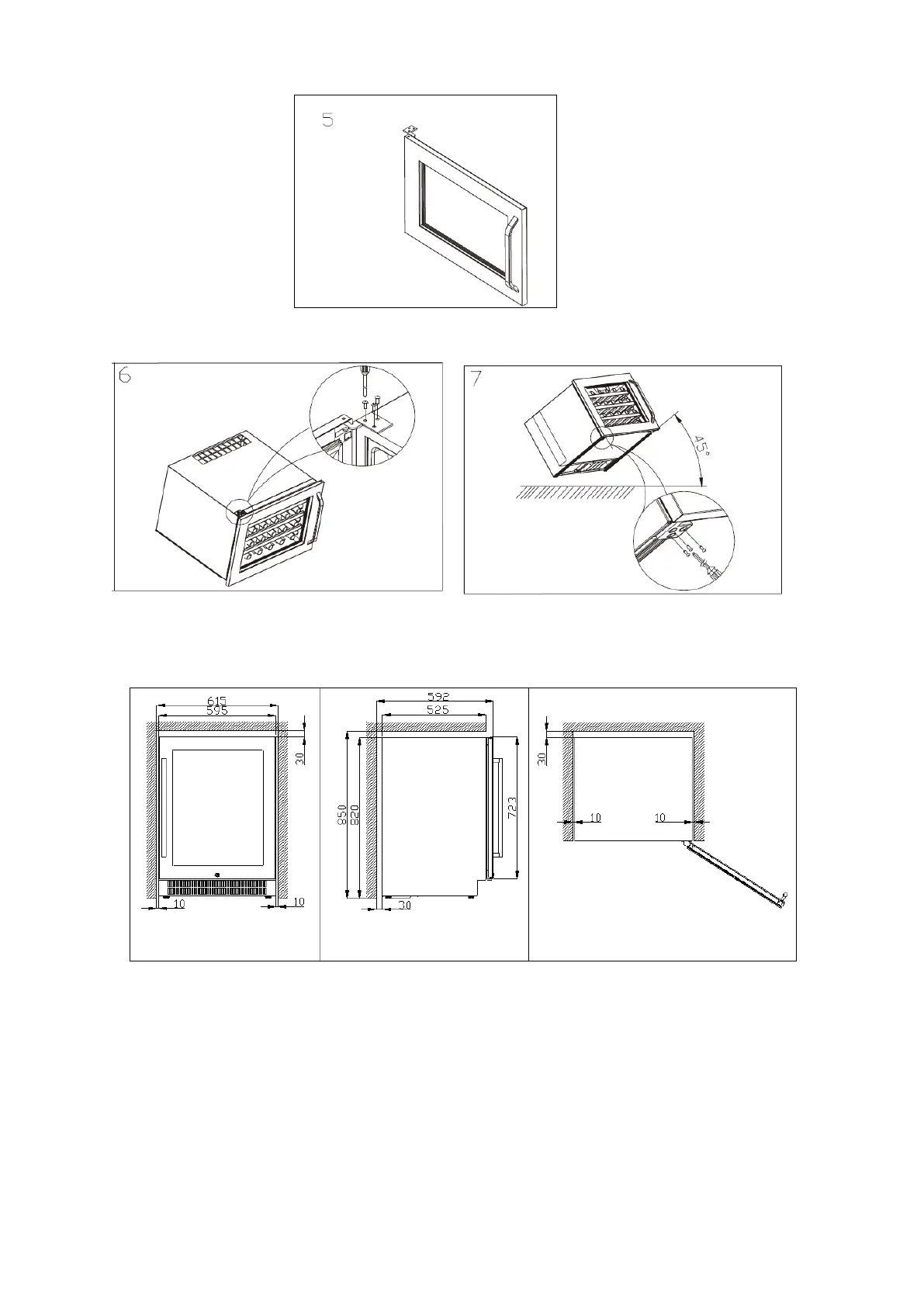

3. Install the screws on the left top of the unit with a screwdriver, and tilt upward about 45 degrees
to put the screws on the bottom left of the door. (See Figure 6 and Figure 7).
Installing a built-in.
If you want to install the unit into a built-in, follow the instructions in the picture below
For Model WC 2045 L
Front View
Side View
Top View
