Modena WC Series - Page 28

English 26

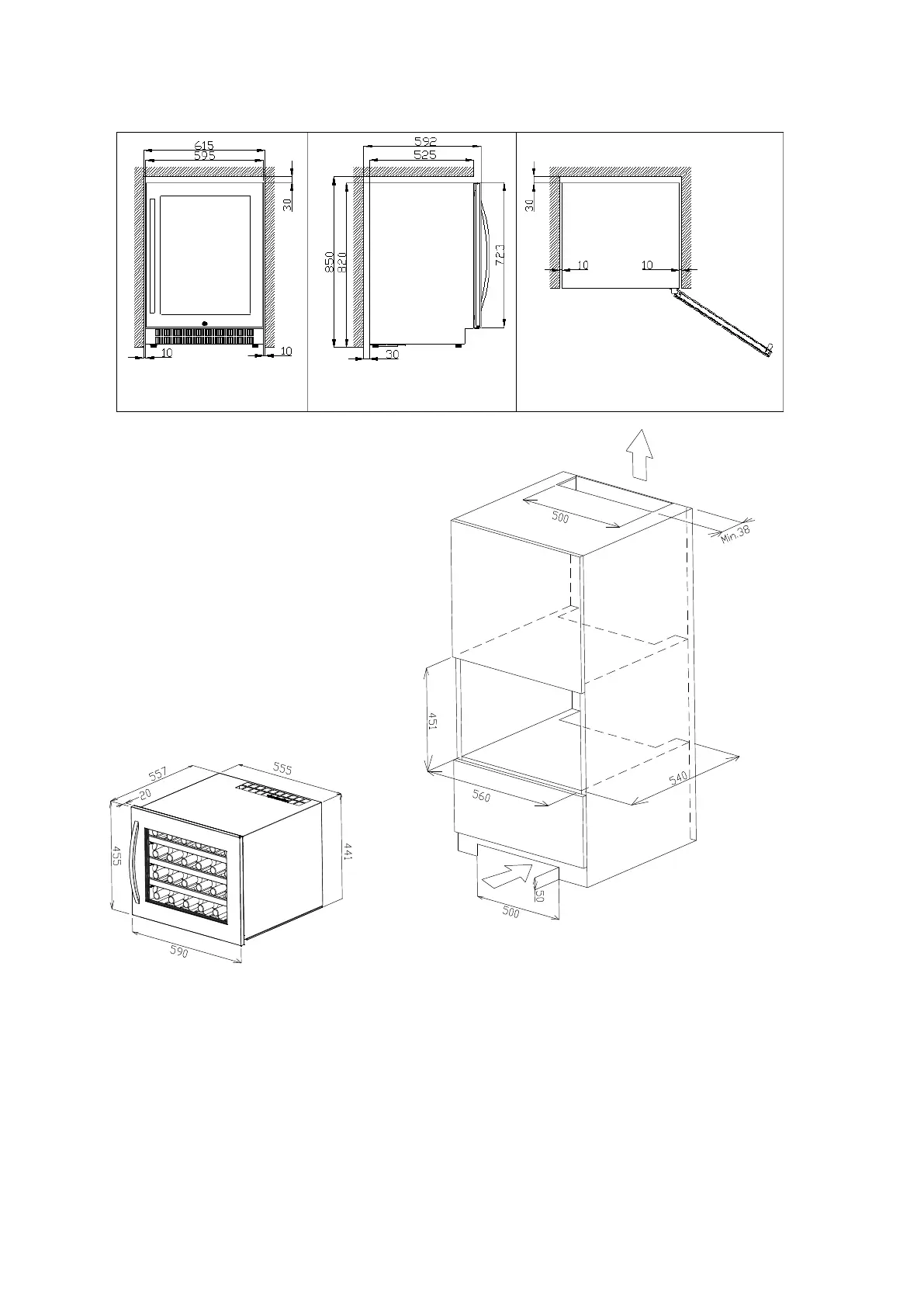

For Model WC 2045 S
For Model WC 1022 S & WC 1022 L
1. After installed win cabinet into kitchen cabinet, please adjust limited block (a) close to kitchen
cabinet (b),
2. Please fix the 3 pcs screws through the limited block (a) screw hold into kitchen cabinet (b),
see in the image below.
Front View
Side View
Top View
