Built-In Installation
This fireplace is designed to be installed in two different methods:
1) Built-In Mounted (mounted in a wall that has been custom framed for this fireplace).
a. Electrical power to be hardwired.
2) Insert Mounted (inserted into an existing fireplace).
a. Electrical power to be plugged in to receptacle (power cord supplied).
Wall Preparation
A. Select a location that is not prone to moisture and is located at least 36” (94.1cm) away from
combustible materials such as curtain drapes, furniture, bedding, paper, etc.
B. Create a rough-in frame with electrical (see below “framing”).
C. Hold the fireplace up to ensure it will fit into the framing.
Non-Load Bearing Wall Finishing Material

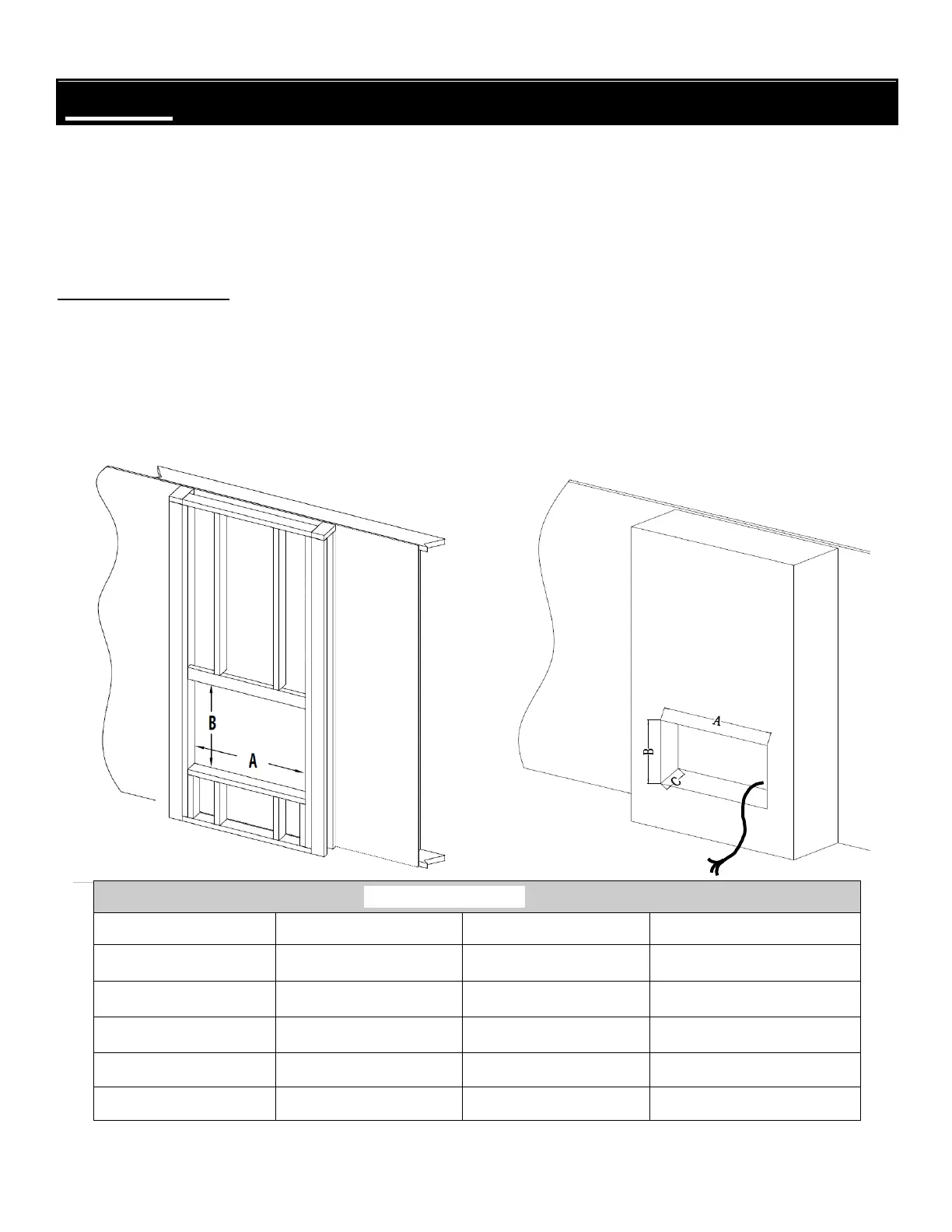

Framing Hole Size
Model Number
A
B
C
RS-2621
23" [584mm]
18-3/4" [477mm]
10” (254mm)
RS-3021
28- 1/4" [718mm]
18-3/4" [477mm]
10” (254mm)
RS-3626
32- 5/8" [829mm]
23-7/8" [607mm]
10” (254mm)
RS-4229
38- 3/4" [985mm]
26-3/4" [680mm]
10” (254mm)
RS-5435
50- 15/16" [1294mm]
32-3/4" [832mm]
10” (254mm)
