Modern Forms Aviator 5 - Multi-Location Wall Control Wiring; Multiple Wall Control Setup

FR-W1811 15
Wall Controller 1 Wall Controller 2 Wall Controller 3
if Applicable
Green
Green to Fan
Black to Fan
White to Fan
Green White Black Red
Black Black White Red Red White
Green Green
HOT IN
10

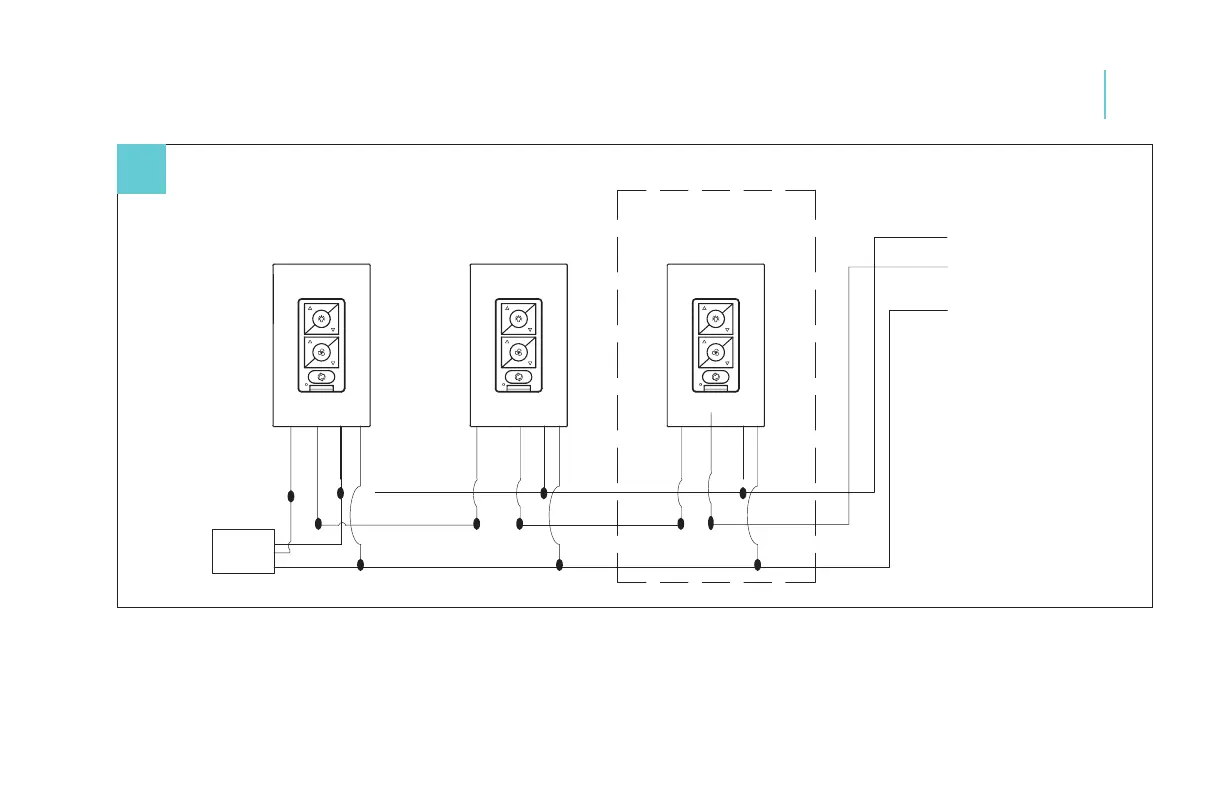

1. Install the wall control using the wiring diagram above.
2. Individually pair each of the wall controls with the fan receiver using the pairing instruction.
Installing the Wall Control
09
