FH-W1803-52
Axis Flush Instructions 19

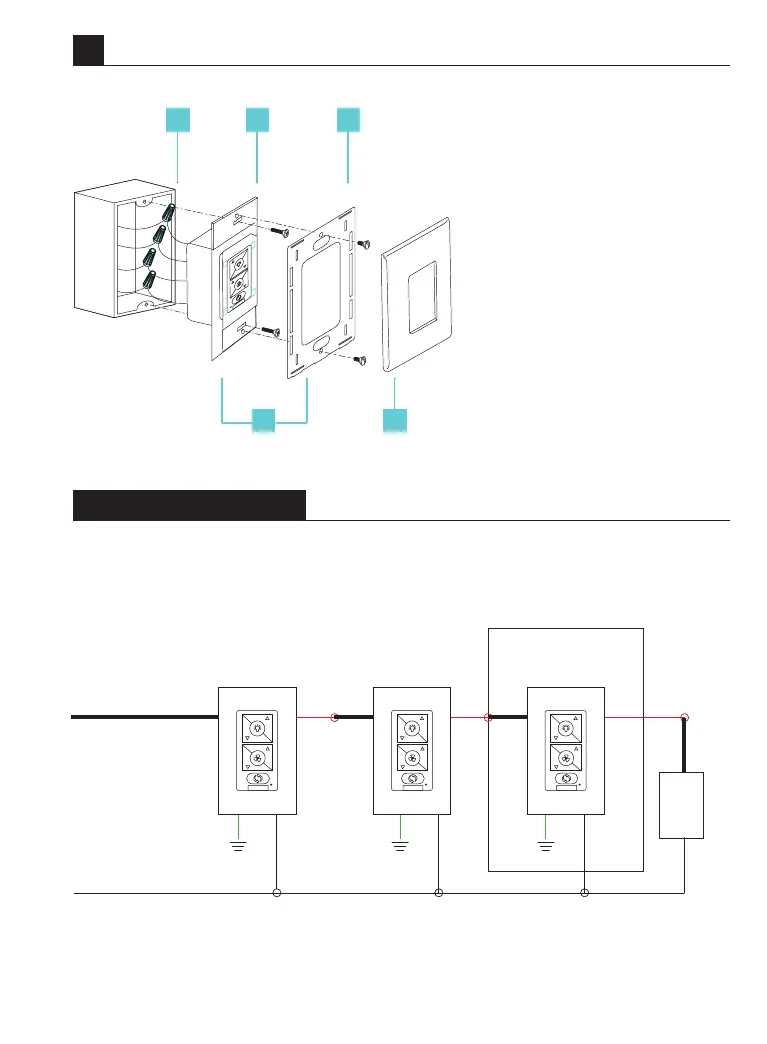

6A
Multi-location wiring
1 2 3
54
1. Wall Outlet
2. Wall Control
3. Wall Mounting Plate
4. Mounting Plate Screws
5. Wall Plate
Individually pair each of the wall controls with the fan
receiver using the pairing instruction. See page 22.
Line/Hot
Red
Green (Green or Bare)
Wallcontroller 1 Wallcontroller 2 Wallcontroller 3
If Applicable
FAN
Neutral/White
Wall Control 1 Wall Control 2
Wall Control 3
