Modular Closets DOUBLE HANGING UNIT - Unit Assembly; Install Cam Posts; Assemble Shelves and Cleats

2
3
IMPORTANT NOTES
Install Set Shelves (D) with finished edges
facing forward (toward front of unit).
Install Rear Hanging Cleats (C) with holes
for Cam Locks facing the rear of the unit and
the unfinishededge against the Set Shelf (D).
Install upper Set Shelf (D) with holes for Cam
Locks facing the top of the unit.
Install lower Set Shelf (D) with holes for Cam
Locks facing the bottom of the unit.
B
A
G
G

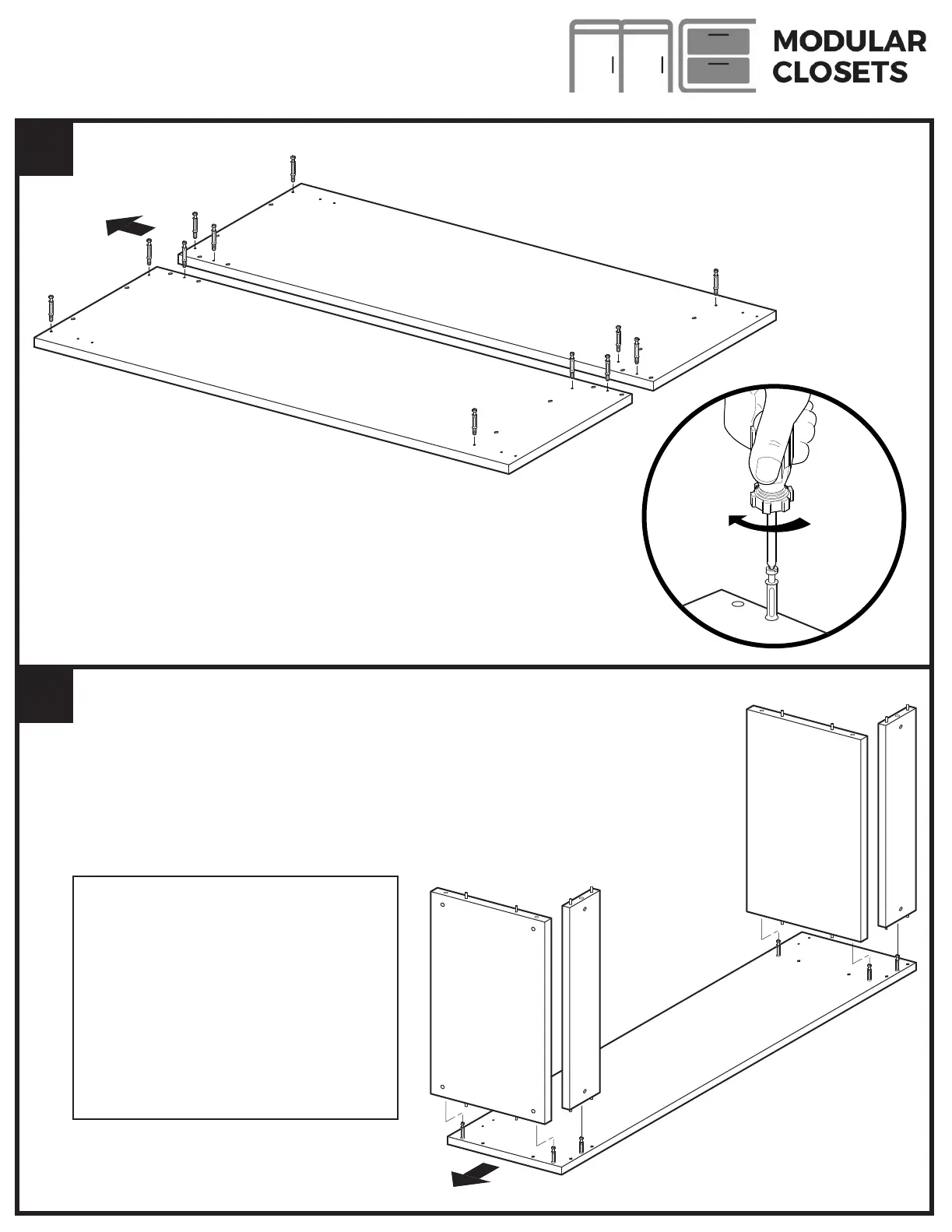

2.1 Install one Cam Post (G) into each of the eight holes on Left Side Panel (A)
and Right Side Panel (B). Tighten until Cam Posts are seated against Side
Panels.
D
D
C
C
G
G
B
ASSEMBLY AND
INSTALLATION INSTRUCTIONS
DOUBLE HANGING UNIT
TOP
3.1 Assemble Set Shelves (D) and Rear Hanging Cleats (C) onto Right Side
Panel (B) by sliding the Shelves and Cleats onto the Cam Posts (G )on
Right Side Panel. BE SURE dowel pins in Shelves and Cleats engage
drilled holes in RightSide Panel, and all parts are pressed flush
against Right Side Panel.
TOP
