Moen 3371 - Page 5

page 8page 7
3
2
1
2
Temperature Valve
9
12
2
12
fig.2
3
Disengage Splines
1
2
fig.3
2
12
C4
fig.4

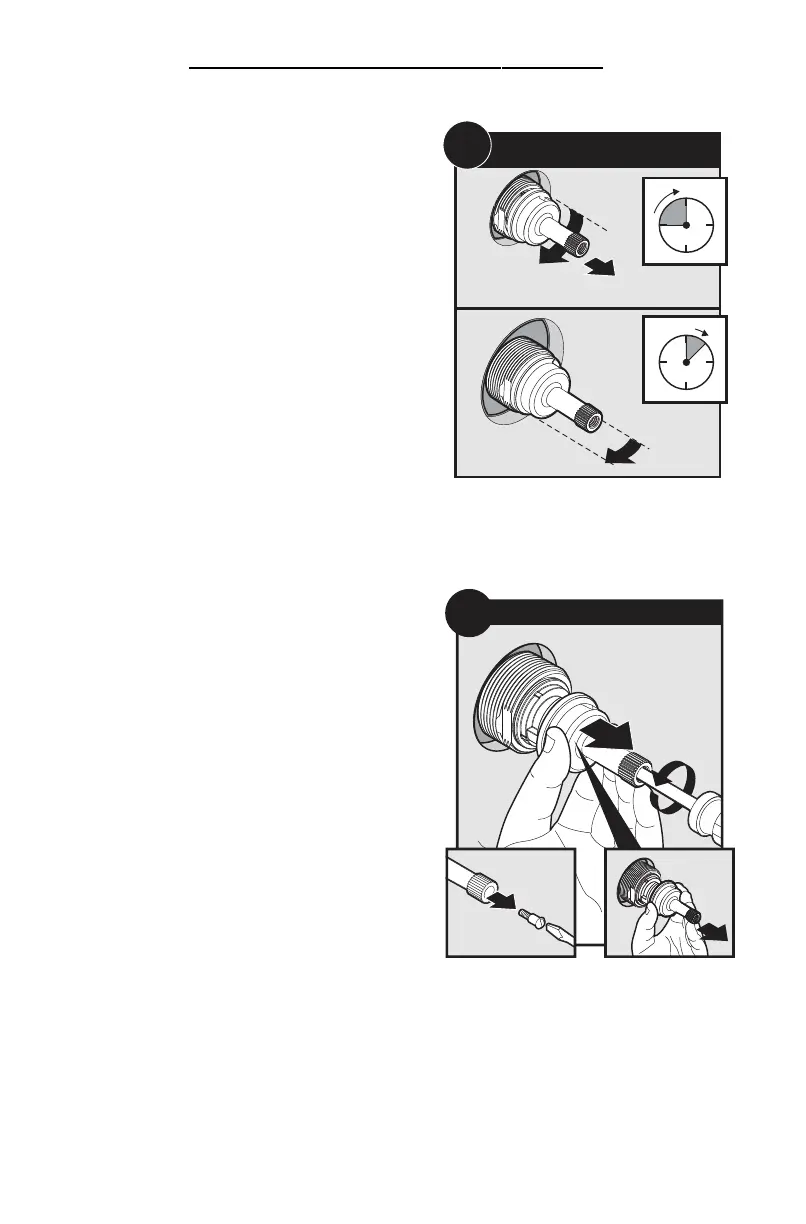

CARTRIDGE CALIBRATION
cont.
CARTRIDGE CALIBRATION
cont.
Rotate the temperature stem from the hottest
position (9:00) clockwise to the safety stop
position position (12:00). This is 1/4 of a turn
and the stem will pop out when the proper
position is reached.
Continue rotating the stem clockwise from the
(12:00) position to the (2:00) position. (fig.2)
Rotate the stem from the (2:00) position
counterclockwise to the (12:00) position.(fig.4)
While holding the stem to prevent rotation,
remove the screw turning counterclockwise.
Pull the stem from the valve without rotating.
(fig.3)
5
2
1
fig.5
Replace the stem in the new position and
secure with screw. (fig.5)
Test the temperature of the water. If it is still over 120˚ F, repeat
steps 3 and 4 to lower the maximum temperature.
