Moen 7622SRS - Pulldown Hose Installation; Feeding Hose Through Faucet Body; Connecting Hose to Quick Adapter

6
66
77

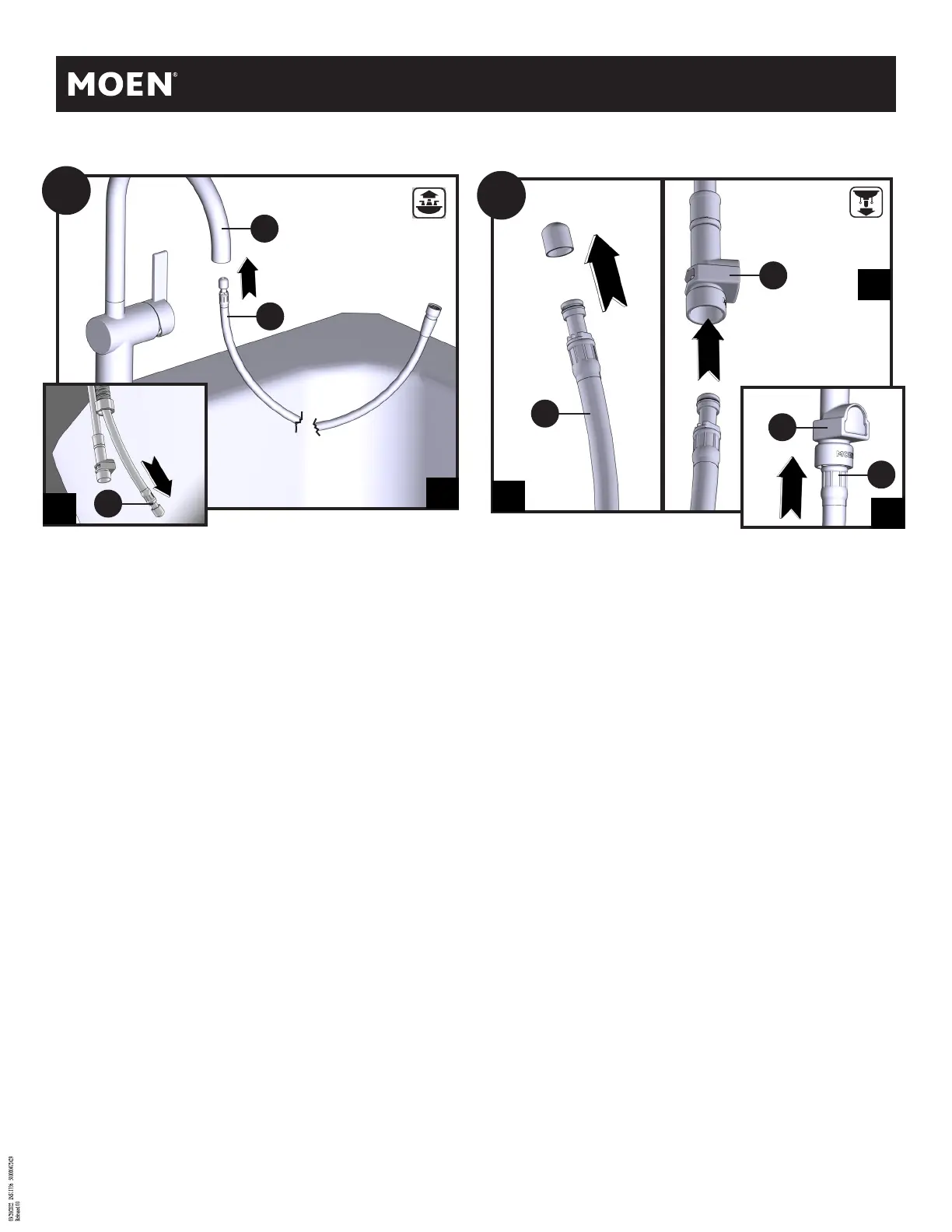

1. Insert small end of Pulldown Hose (H) into spout and feed through
Faucet Body (A).
1. Remove and discard plastic cap from end of Pullout Hose (H).
2. Insert hose into Quick Connect Adapter (L).
3. Push until a “click” is heard. Tug Downward to test engagement.
2
1
1
2
3
H
H
A
H
L
L
H
1. Insert small end of Pulldown Hose (H) into spout and feed through
Faucet Body (A).
1. Insert small end of Pulldown Hose (H) into spout and feed through
Faucet Body (A).
1. Remove and discard plastic cap from end of Pullout Hose (H).
2. Insert hose into Quick Connect Adapter (L).
3. Push until a “click” is heard. Tug Downward to test engagement.
1. Remove and discard plastic cap from end of Pullout Hose (H).
2. Insert hose into Quick Connect Adapter (L).
3. Push until a “click” is heard. Tug Downward to test engagement.
