Dimensions......................................16.9(L) x3.8(W)X1.22(H) inch
Weight..............................................................................1800g
Power Supply...........................................DC9V (Negative Center)
Current Drain...........................................................max. 300mA
Buffer Input impedance................................................. 500K ohm
Buffer Output impedance.................................................10K ohm
Max. Buffered Input Vp-p........................................................ 5V
Max. Non-Buffered Input Vp-p............................................... 30V
8- Specifications
7- Separate loops and Footswitch
The separate loops (loop7,8,9) are isolated from each other, with patch cables
they can work as either series loops or parallel loops. The send jack and output
jack of these loops can also function as latch footswitches which can control
amplifiers. When the send/out jack of a loop is used as footswitch, do not hook
any cables to other jacks of this loop.
The S9 is a multiple usage jack, when there are no cables hooked to any jacks
of loop8, the S9's ring automatically connects to the tip of S8, and common
sleeve with S8, it makes S9 possible to works as a TRS footswitch of an amplifier.

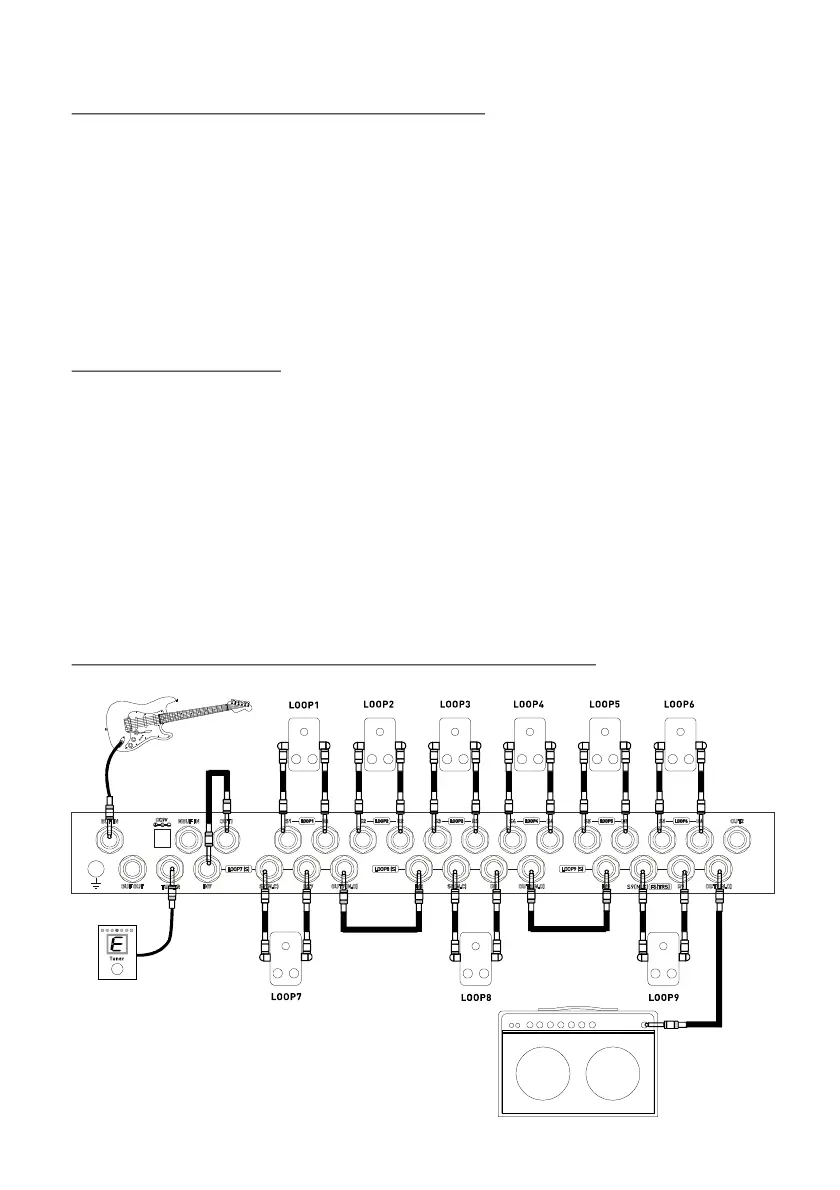

Typical Configuration 1 - Connect 9 pedals
