Moen GEC9 User Manual

Configuration 2 - Separate loops as footswitch
LOOP2 LOOP3 LOOP4 LOOP5 LOOP6
Tuner
INPUT CH1
SEND RETURN
LOOP1 = AMP PREAMP
CH2
AMP HEAD
CH3
In this configuration the separate loop send jack S7, S8, S9 are used to control the
amplifier channels. The amplifier preamp is connected to GEC9 LOOP1, makes it
possible to add modulation effects to the preamp.
6

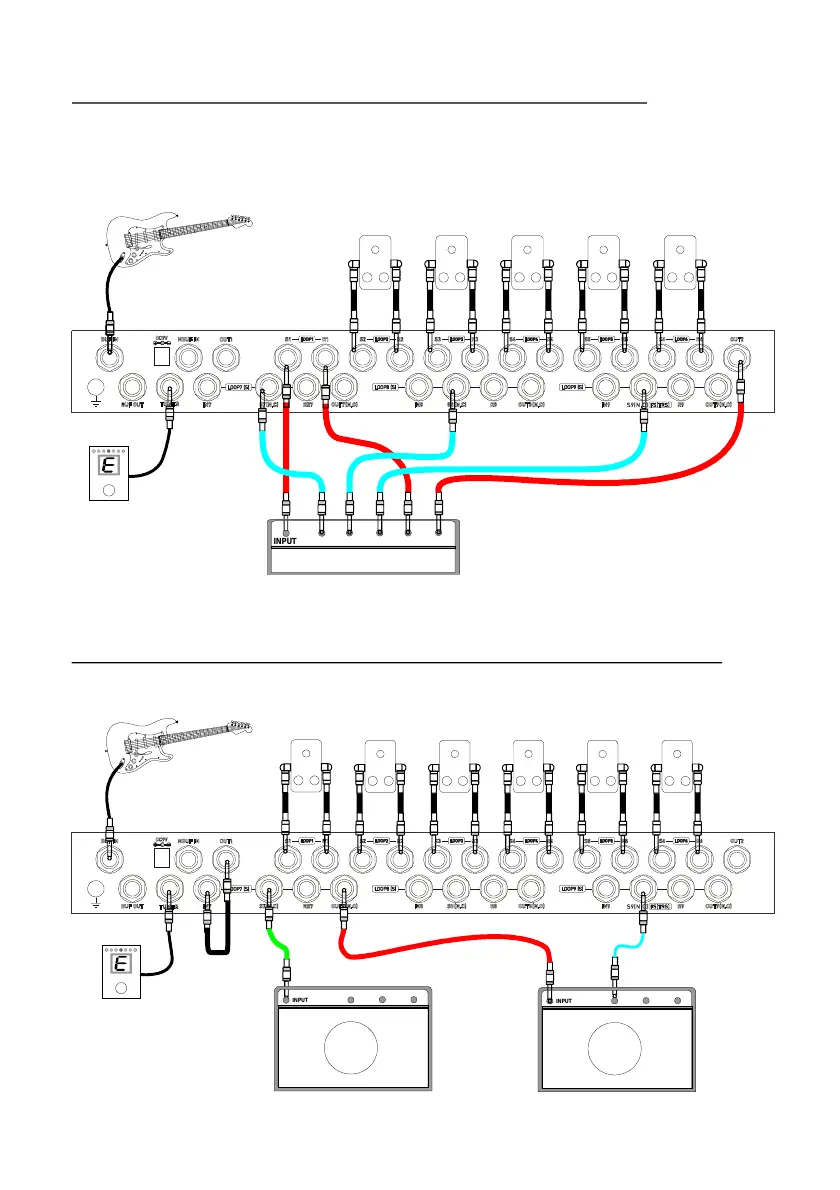

Configuration 3 - Multiple amplifiers, TRS footswitch
Loop7 on - outputs to AMP1, Loop7 off - outputs to AMP2, Loop8, 9 as AMP2 footswitch
LOOP2 LOOP3 LOOP4 LOOP5 LOOP6
Tuner
INPUT FOOTSWITCH
SEND RETURN
INPUT
FOOTSWITCH
SEND RETURN
LOOP1
AMP1
AMP2
LOOP7 CHOOSE SIGNAL PATH
LOOP8 and LOOP9 as TRS footswitch

Moen GEC9 Specifications

General

Brand	Moen
Model	GEC9
Category	Musical Instrument Amplifier
Language	English
