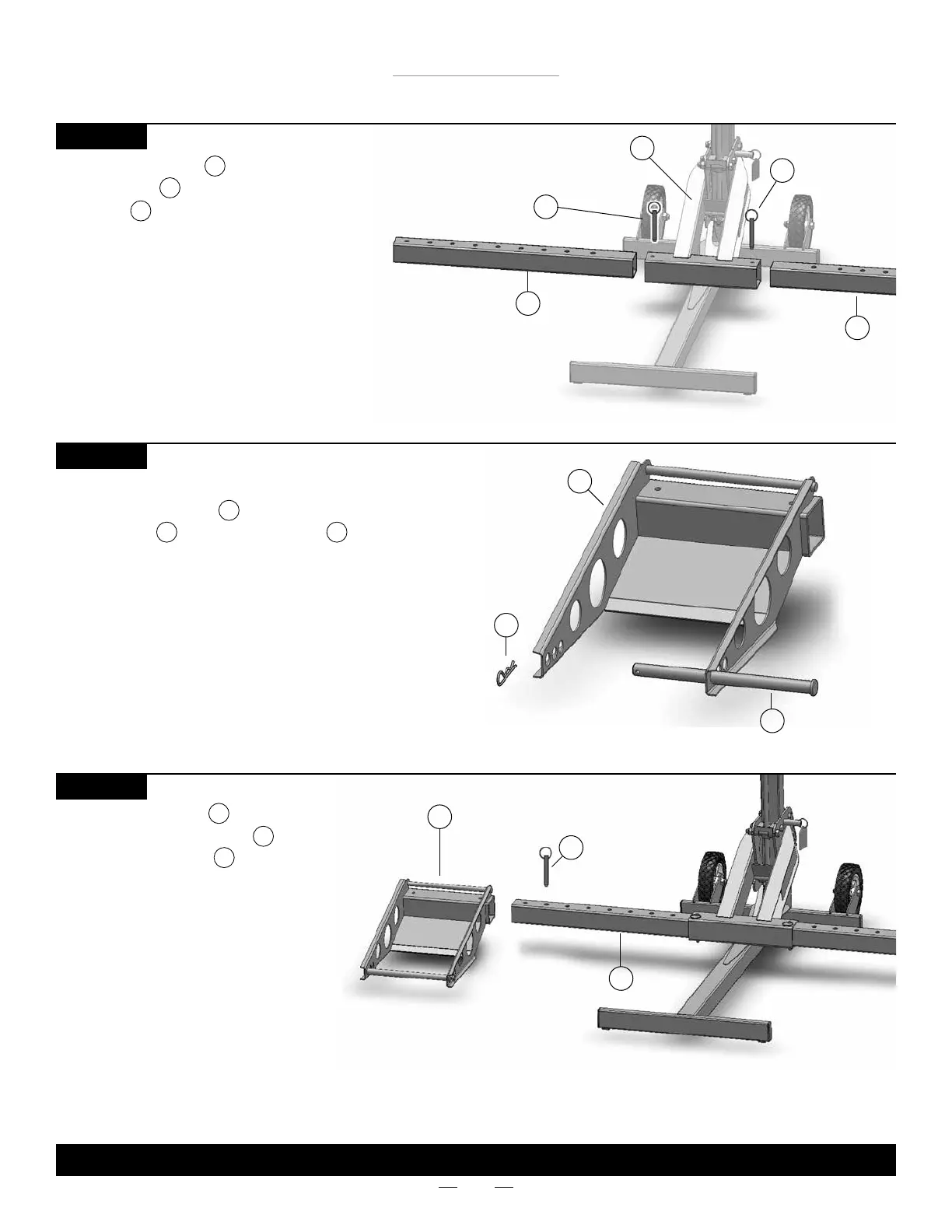

MoJack 750XT - Step 7: Install Lift Arm Inserts; Step 8: Install Wheel Pads; Step 9: Secure Wheel Pads

MoJack 750XT Lift
9
Lift Arm Insert
6
Push Pin
16
Push Pin
16
Lift Arm
2
Lift Arm Insert
6
Assembly Instructions
THIS COMPLETES ASSEMBLY.
Wheel Pad
5
STEP 8
Ready the Wheel Pads for installation by adding
Support Rods and Large Hair Pins .
5
11 19
Large Hair Pin
19
Support Rod
11
Push Pin
16
STEP 9
Slide the Wheel Pads onto both
sides of the Lift Arm Inserts and
secure with Push Pins .
Note: The Wheel Pads can be moved in
or out to t different mower widths. Use
the conguration that works best with
your model of lawn mower. The Wheel
Pads must be equal distance from the
Lift Arm to maintain proper balance.
5
6
16
Lift Arm Insert
6
Wheel Pad
5
Slide Lift Arm Inserts into both sides
of the Lift Arm and secure with
Push Pins as shown.
STEP 7
6
2
16
