MoJack 750XT Lift
7
Assembly Instructions

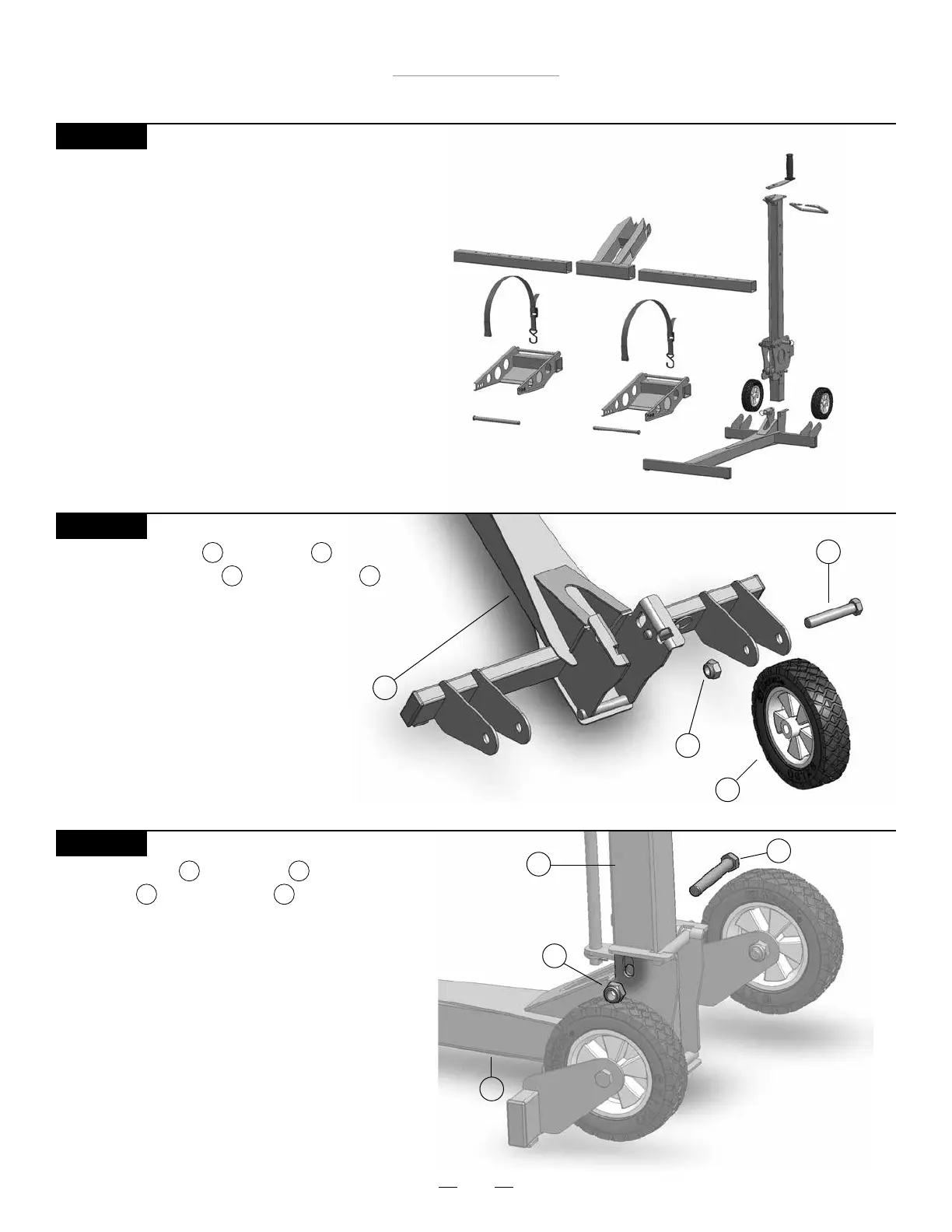

STEP 1
Remove MoJack 750XT from package.
Check to be certain all parts and hardware
are present. If any parts or hardware are missing,
please contact MoJack at 1-877-575-3173 or
email us at parts@themojack.com.
STEP 2
Assemble the Wheel to the Base
by inserting Cap Screw and Nylock Nut
and tighten. Repeat with second Wheel.
Note: Do not over tighten Nylock Nut.
Base
3
Wheel
4
Nylock Nut
14
Cap Screw
12
Attach the Tower to the Base using
Cap Screw and Nylock Nut as shown.
Note: Do not over tighten Nylock Nut.
STEP 3
Nylock Nut
14
Cap Screw
11
Tower
1
Base
3
4 3
12 14
1 3
11 14
